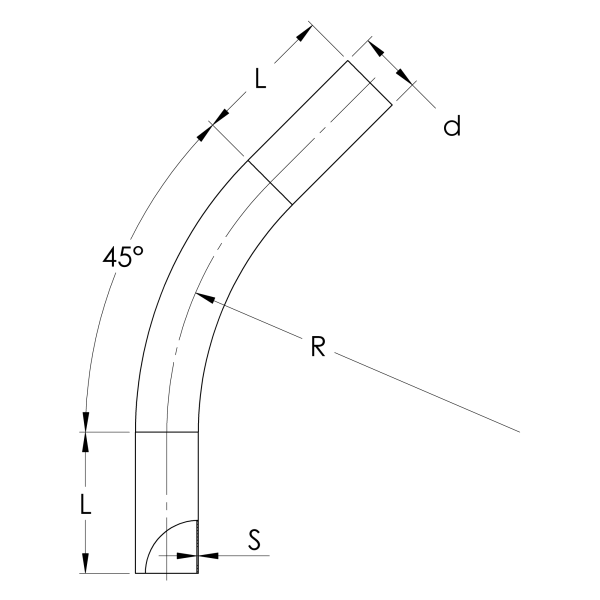

Cút bán kính lớn 45°

Cút hàn dọc thân kín khí hoàn toàn.

Dòng sản phẩm

Diameter	Radius	Thickness	Item ID	Edge
Ød, mm	R, mm	s, mm
38	R=250	1.5	CBBB000040	gl
38	R=500	1.5	CBBB000041	gl
38	R=800	1.5	CBBB000042	gl
38	R=1000	1.5	CBBB000043	gl
50	R=250	2	CBBB000020	gl
50	R=500	2	CBBB000025	gl
50	R=800	2	CBBB000030	gl
50	R=1000	2	CBBB000035	gl
63	R=160	2	CBBB000021	gl
63	R=500	2	CBBB000026	gl
63	R=800	2	CBBB000031	gl
63	R=1000	2	CBBB000036	gl
76	R=250	2	CBBB000022	gl
76	R=500	2	CBBB000027	gl
76	R=800	2	CBBB000032	gl
76	R=1000	2	CBBB000037	gl
89	R=250	2	CBBB000023	gl
89	R=500	2	CBBB000028	gl
89	R=800	2	CBBB000033	gl
89	R=1000	2	CBBB000038	gl
102	R=150	2	CBBB000024	gl
102	R=500	2	CBBB000029	gl
102	R=800	2	CBBB000034	gl
102	R=1000	2	CBBB000039	gl
