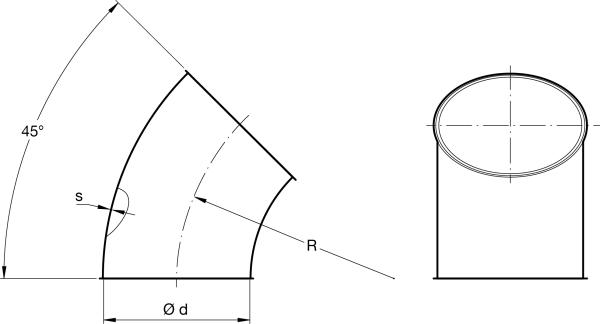

Cút dập được tạo thành từ hai nửa định hình trước và được hàn kín dọc thân với nhau. Cút ghép múi được tạo thành từ các đoạn hàn được hàn kín hoàn toàn với nhau. Các loại cút này thích hợp để vận chuyển vật liệu thải như bụi và dăm bào, cũng như vận chuyển ngũ cốc và các loại tương tự.
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=2D | 1.5 | BABA000058 | fb | |
| 100 | R=2D | 1.5 | BABA000059 | fb | |
| 100 | R=2D | 2 | BABA000079 | fb | |
| 120 | R=2D | 1.5 | BABA000060 | fb | |
| 120 | R=2D | 2 | BABA000080 | fb | |
| 140 | R=2D | 1.5 | BABA000061 | fb | 4 |
| 140 | R=2D | 2 | BABA000081 | fb | 4 |
| 150 | R=2D | 1.5 | BABA000062 | fb | |
| 150 | R=2D | 2 | BABA000082 | fb | |
| 150 | R=2D | 3 | BABA000099 | fb | |
| 160 | R=2D | 1.5 | BABA000063 | fb | 4 |
| 160 | R=2D | 2 | BABA000083 | fb | 4 |
| 175 | R=2D | 1.5 | BABA000064 | fb | |
| 175 | R=2D | 2 | BABA000084 | fb | |
| 175 | R=2D | 3 | BABA000100 | fb | |
| 200 | R=2D | 1.5 | BABA000065 | fb | |
| 200 | R=2D | 2 | BABA000085 | fb | |
| 200 | R=2D | 3 | BABA000101 | fb | |
| 224 | R=2D | 1.5 | BABA000066 | fb | |
| 224 | R=2D | 2 | BABA000086 | fb | |
| 224 | R=2D | 3 | BABA000102 | fb | |
| 250 | R=2D | 1.5 | BABA000067 | fb | |
| 250 | R=2D | 2 | BABA000087 | fb | |
| 250 | R=2D | 3 | BABA000103 | fb | |
| 280 | R=2D | 1.5 | BABA000068 | fb | 4 |
| 280 | R=2D | 2 | BABA000088 | fb | 4 |
| 280 | R=2D | 3 | BABA000104 | fb | 4 |
| 300 | R=2D | 1.5 | BABA000069 | fb | |
| 300 | R=2D | 2 | BABA000089 | fb | |
| 300 | R=2D | 3 | BABA000105 | fb | |
| 315 | R=2D | 1.5 | BABA000070 | fb | 4 |
| 315 | R=2D | 2 | BABA000090 | fb | 4 |
| 315 | R=2D | 3 | BABA000106 | fb | 4 |
| 350 | R=2D | 1.5 | BABA000071 | fb | 4 |
| 350 | R=2D | 2 | BABA000091 | fb | 4 |
| 350 | R=2D | 3 | BABA000107 | fb | 4 |
| 400 | R=2D | 1.5 | BABA000072 | fb | 4 |
| 400 | R=2D | 2 | BABA000092 | fb | 4 |
| 400 | R=2D | 3 | BABA000108 | fb | 4 |
| 450 | R=2D | 1.5 | BABA000073 | fb | 4 |
| 450 | R=2D | 2 | BABA000093 | fb | 4 |
| 450 | R=2D | 3 | BABA000109 | fb | 4 |
| 500 | R=2D | 1.5 | BABA000074 | fb | 4 |
| 500 | R=2D | 2 | BABA000094 | fb | 4 |
| 500 | R=2D | 3 | BABA000110 | fb | 4 |
| 560 | R=2D | 2 | BABA000096 | fb | 4 |
| 560 | R=2D | 3 | BABA000112 | fb | 4 |
| 630 | R=2D | 2 | BABA000098 | fb | 4 |
| 630 | R=2D | 3 | BABA000114 | fb | 4 |
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=2D | 1.50 | BDBA000022 | fb | |
| 100 | R=2D | 1.50 | BDBA000023 | fb | |
| 120 | R=2D | 1.50 | BDBA000024 | fb | |
| 140 | R=2D | 1.50 | BDBA000025 | fb | 4 |
| 150 | R=2D | 1.50 | BDBA000026 | fb | |
| 160 | R=2D | 1.50 | BDBA000027 | fb | 4 |
| 175 | R=2D | 1.50 | BDBA000028 | fb | |
| 200 | R=2D | 1.50 | BDBA000029 | fb | |
| 224 | R=2D | 1.50 | BDBA000030 | fb | |
| 250 | R=2D | 1.50 | BDBA000031 | fb | |
| 280 | R=2D | 1.50 | BDBA000032 | fb | 4 |
| 300 | R=2D | 1.50 | BDBA000033 | fb | |
| 315 | R=2D | 1.50 | BDBA000034 | fb | 4 |
| 350 | R=2D | 1.50 | BDBA000035 | fb | 4 |
| 400 | R=2D | 1.50 | BDBA000036 | fb | 4 |
| 450 | R=2D | 1.50 | BDBA000037 | fb | 4 |
| 500 | R=2D | 1.50 | BDBA000038 | fb | 4 |
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=2D | 1.50 | BBBA000042 | fb | |
| 100 | R=2D | 1.50 | BBBA000043 | fb | |
| 100 | R=2D | 2.00 | BBBA000063 | fb | |
| 120 | R=2D | 1.50 | BBBA000044 | fb | |
| 120 | R=2D | 2.00 | BBBA000064 | fb | |
| 140 | R=2D | 1.50 | BBBA000045 | fb | 4 |
| 140 | R=2D | 2.00 | BBBA000065 | fb | 4 |
| 150 | R=2D | 1.50 | BBBA000046 | fb | |
| 150 | R=2D | 2.00 | BBBA000066 | fb | |
| 160 | R=2D | 1.50 | BBBA000047 | fb | 4 |
| 160 | R=2D | 2.00 | BBBA000067 | fb | 4 |
| 175 | R=2D | 1.50 | BBBA000048 | fb | |
| 175 | R=2D | 2.00 | BBBA000068 | fb | |
| 200 | R=2D | 1.50 | BBBA000049 | fb | |
| 200 | R=2D | 2.00 | BBBA000069 | fb | |
| 224 | R=2D | 1.50 | BBBA000050 | fb | |
| 224 | R=2D | 2.00 | BBBA000070 | fb | |
| 250 | R=2D | 1.50 | BBBA000051 | fb | |
| 250 | R=2D | 2.00 | BBBA000071 | fb | |
| 280 | R=2D | 1.50 | BBBA000052 | fb | 4 |
| 280 | R=2D | 2.00 | BBBA000072 | fb | 4 |
| 300 | R=2D | 1.50 | BBBA000053 | fb | |
| 300 | R=2D | 2.00 | BBBA000073 | fb | |
| 315 | R=2D | 1.50 | BBBA000054 | fb | 4 |
| 315 | R=2D | 2.00 | BBBA000074 | fb | 4 |
| 350 | R=2D | 1.50 | BBBA000055 | fb | 4 |
| 350 | R=2D | 2.00 | BBBA000075 | fb | 4 |
| 400 | R=2D | 1.50 | BBBA000056 | fb | 4 |
| 400 | R=2D | 2.00 | BBBA000076 | fb | 4 |
| 450 | R=2D | 1.50 | BBBA000057 | fb | 4 |
| 450 | R=2D | 2.00 | BBBA000077 | fb | 4 |
| 500 | R=2D | 1.50 | BBBA000058 | fb | 4 |
| 500 | R=2D | 2.00 | BBBA000078 | fb | 4 |
| 560 | R=2D | 2.00 | BBBA000080 | fb | 4 |
| 630 | R=2D | 2.00 | BBBA000082 | fb | 4 |
