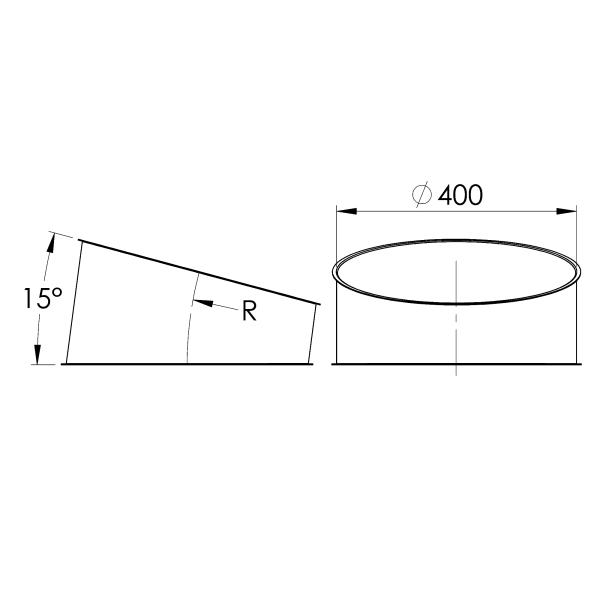

Cút ghép múi 15º được thiết kế chính xác, hàn kín hoàn toàn cho các ứng dụng yêu cầu độ kín khí.
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 275 | R=1,5D | 1.5 | BCBA000141 | fb | 1 |
| 280 | R=1,5D | 1.5 | BCBA000142 | fb | 1 |
| 300 | R=1,5D | 1.5 | BCBA000143 | fb | 1 |
| 315 | R=1,5D | 1.5 | BCBA000144 | fb | 1 |
| 350 | R=1,5D | 1.5 | BCBA000145 | fb | 1 |
| 400 | R=1,5D | 1.5 | BCBA000146 | fb | 1 |
| 450 | R=1,5D | 1.5 | BCBA000147 | fb | 1 |
| 500 | R=1,5D | 1.5 | BCBA000148 | fb | 1 |
| 550 | R=1,5D | 1.5 | BCBA000149 | fb | 1 |
| 600 | R=1,5D | 1.5 | BCBA000150 | fb | 1 |
| 630 | R=1,5D | 1.5 | BCBA000151 | fb | 1 |
| 650 | R=1,5D | 1.5 | BCBA000152 | fb | 1 |
| 700 | R=1,5D | 1.5 | BCBA000153 | fb | 1 |
| 750 | R=1,5D | 1.5 | BCBA000154 | fb | 1 |
| 800 | R=1,5D | 1.5 | BCBA000155 | fb | 1 |
| 850 | R=1,5D | 1.5 | BCBA000156 | fb | 1 |
| 900 | R=1,5D | 1.5 | BCBA000157 | fb | 1 |
| 950 | R=1,5D | 1.5 | BCBA000158 | fb | 1 |
| 1,000 | R=1,5D | 1.5 | BCBA000159 | fb | 1 |
| 315 | R=1,5D | 1.5 | BCBA000160 | L.fl | 1 |
| 350 | R=1,5D | 1.5 | BCBA000161 | L.fl | 1 |
| 400 | R=1,5D | 1.5 | BCBA000162 | L.fl | 1 |
| 450 | R=1,5D | 1.5 | BCBA000163 | L.fl | 1 |
| 500 | R=1,5D | 1.5 | BCBA000164 | L.fl | 1 |
| 550 | R=1,5D | 1.5 | BCBA000165 | L.fl | 1 |
| 600 | R=1,5D | 1.5 | BCBA000166 | L.fl | 1 |
| 630 | R=1,5D | 1.5 | BCBA000167 | L.fl | 1 |
| 650 | R=1,5D | 1.5 | BCBA000168 | L.fl | 1 |
| 700 | R=1,5D | 1.5 | BCBA000169 | L.fl | 1 |
| 750 | R=1,5D | 1.5 | BCBA000170 | L.fl | 1 |
| 800 | R=1,5D | 1.5 | BCBA000171 | L.fl | 1 |
| 850 | R=1,5D | 1.5 | BCBA000172 | L.fl | 1 |
| 900 | R=1,5D | 1.5 | BCBA000173 | L.fl | 1 |
| 950 | R=1,5D | 1.5 | BCBA000174 | L.fl | 1 |
| 1,000 | R=1,5D | 1.5 | BCBA000175 | L.fl | 1 |
