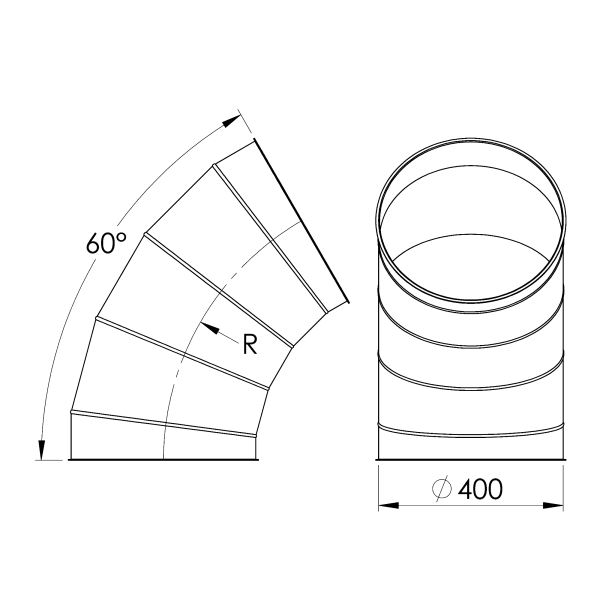

Cút ghép múi 60º được thiết kế chính xác, hàn kín hoàn toàn cho các ứng dụng yêu cầu độ kín khí.
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 275 | R=1,5D | 1.5 | BCBA000036 | fb | 4 |
| 280 | R=1,5D | 1.5 | BCBA000037 | fb | 4 |
| 300 | R=1,5D | 1.5 | BCBA000038 | fb | 4 |
| 315 | R=1,5D | 1.5 | BCBA000039 | fb | 4 |
| 350 | R=1,5D | 1.5 | BCBA000040 | fb | 4 |
| 400 | R=1,5D | 1.5 | BCBA000041 | fb | 4 |
| 450 | R=1,5D | 1.5 | BCBA000042 | fb | 4 |
| 500 | R=1,5D | 1.5 | BCBA000043 | fb | 4 |
| 550 | R=1,5D | 1.5 | BCBA000044 | fb | 4 |
| 600 | R=1,5D | 1.5 | BCBA000045 | fb | 4 |
| 630 | R=1,5D | 1.5 | BCBA000046 | fb | 4 |
| 650 | R=1,5D | 1.5 | BCBA000047 | fb | 4 |
| 700 | R=1,5D | 1.5 | BCBA000048 | fb | 4 |
| 750 | R=1,5D | 1.5 | BCBA000049 | fb | 4 |
| 800 | R=1,5D | 1.5 | BCBA000050 | fb | 4 |
| 850 | R=1,5D | 1.5 | BCBA000051 | fb | 4 |
| 900 | R=1,5D | 1.5 | BCBA000052 | fb | 4 |
| 950 | R=1,5D | 1.5 | BCBA000053 | fb | 4 |
| 1,000 | R=1,5D | 1.5 | BCBA000054 | fb | 4 |
| 315 | R=1,5D | 1.5 | BCBA000055 | L.fl | 4 |
| 350 | R=1,5D | 1.5 | BCBA000056 | L.fl | 4 |
| 400 | R=1,5D | 1.5 | BCBA000057 | L.fl | 4 |
| 450 | R=1,5D | 1.5 | BCBA000058 | L.fl | 4 |
| 500 | R=1,5D | 1.5 | BCBA000059 | L.fl | 4 |
| 550 | R=1,5D | 1.5 | BCBA000060 | L.fl | 4 |
| 600 | R=1,5D | 1.5 | BCBA000061 | L.fl | 4 |
| 630 | R=1,5D | 1.5 | BCBA000062 | L.fl | 4 |
| 650 | R=1,5D | 1.5 | BCBA000063 | L.fl | 4 |
| 700 | R=1,5D | 1.5 | BCBA000064 | L.fl | 4 |
| 750 | R=1,5D | 1.5 | BCBA000065 | L.fl | 4 |
| 800 | R=1,5D | 1.5 | BCBA000066 | L.fl | 4 |
| 850 | R=1,5D | 1.5 | BCBA000067 | L.fl | 4 |
| 900 | R=1,5D | 1.5 | BCBA000068 | L.fl | 4 |
| 950 | R=1,5D | 1.5 | BCBA000069 | L.fl | 4 |
| 1,000 | R=1,5D | 1.5 | BCBA000070 | L.fl | 4 |
