Cút dập được tạo thành từ hai nửa định hình trước và được hàn điểm dọc thân với nhau, dùng cho các hệ thống áp suất âm và không áp

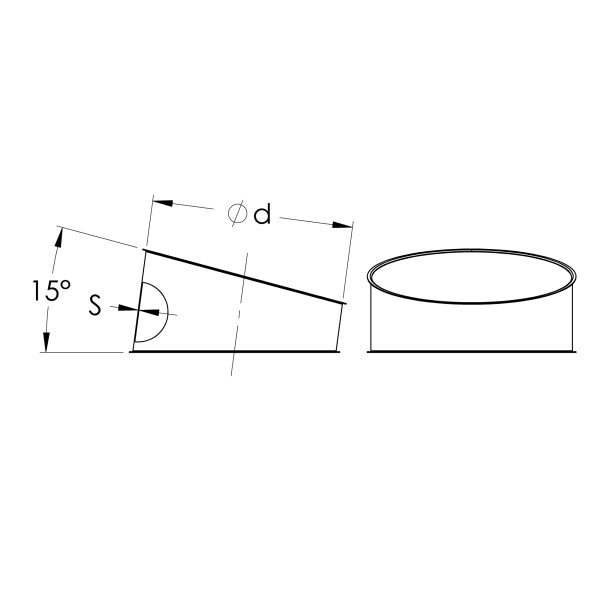

| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=1,5D | 0.75 | AABA000113 | fb | 1 |
| 100 | R=1,5D | 0.75 | AABA000114 | fb | 1 |
| 120 | R=1,5D | 0.75 | AABA000115 | fb | 1 |
| 125 | R=1,5D | 0.75 | AABA000149 | fb | 1 |
| 140 | R=1,5D | 0.75 | AABA000116 | fb | 1 |
| 150 | R=1,5D | 0.75 | AABA000117 | fb | 1 |
| 160 | R=1,5D | 0.75 | AABA000118 | fb | 1 |
| 180 | R=1,5D | 0.75 | AABA000119 | fb | 1 |
| 200 | R=1,5D | 0.75 | AABA000120 | fb | 1 |
| 225 | R=1,5D | 0.75 | AABA000121 | fb | 1 |
| 250 | R=1,5D | 0.88 | AABA000122 | fb | 1 |
| 275 | R=1,5D | 0.88 | AABA000123 | fb | 1 |
| 280 | R=1,5D | 0.88 | AABA000150 | fb | 1 |
| 300 | R=1,5D | 0.88 | AABA000124 | fb | 1 |
| 315 | R=1,5D | 0.88 | AABA000125 | fb | 1 |
| 350 | R=1,5D | 0.88 | AABA000126 | fb | 1 |
| 400 | R=1,5D | 0.88 | AABA000127 | fb | 1 |
| 450 | R=1,5D | 0.88 | AABA000128 | fb | 1 |
| 500 | R=1,5D | 0.88 | AABA000129 | fb | 1 |
| 550 | R=1,5D | 0.88 | AABA000130 | fb | 1 |
| 600 | R=1,5D | 0.88 | AABA000131 | fb | 1 |
| 630 | R=1,5D | 0.88 | AABA000132 | fb | 1 |
| 650 | R=1,5D | 0.88 | AABA000133 | fb | 1 |
| 700 | R=1,5D | 0.88 | AABA000179 | fb | 1 |
| 750 | R=1,5D | 0.88 | AABA000180 | fb | 1 |
| 800 | R=1,5D | 0.88 | AABA000181 | fb | 1 |
| 850 | R=1,5D | 0.88 | AABA000182 | fb | 1 |
| 900 | R=1,5D | 0.88 | AABA000183 | fb | 1 |
| 950 | R=1,5D | 0.88 | AABA000184 | fb | 1 |
| 1,000 | R=1,5D | 1 | AABA000185 | fb | 1 |
| 315 | R=1,5D | 0.88 | AABA000222 | L.fl | 1 |
| 350 | R=1,5D | 0.88 | AABA000223 | L.fl | 1 |
| 400 | R=1,5D | 0.88 | AABA000224 | L.fl | 1 |
| 450 | R=1,5D | 0.88 | AABA000225 | L.fl | 1 |
| 500 | R=1,5D | 0.88 | AABA000226 | L.fl | 1 |
| 550 | R=1,5D | 0.88 | AABA000227 | L.fl | 1 |
| 600 | R=1,5D | 0.88 | AABA000228 | L.fl | 1 |
| 630 | R=1,5D | 0.88 | AABA000229 | L.fl | 1 |
| 650 | R=1,5D | 0.88 | AABA000230 | L.fl | 1 |
| 700 | R=1,5D | 0.88 | AABA000134 | L.fl | 1 |
| 750 | R=1,5D | 0.88 | AABA000135 | L.fl | 1 |
| 800 | R=1,5D | 0.88 | AABA000136 | L.fl | 1 |
| 850 | R=1,5D | 0.88 | AABA000137 | L.fl | 1 |
| 900 | R=1,5D | 0.88 | AABA000138 | L.fl | 1 |
| 950 | R=1,5D | 0.88 | AABA000139 | L.fl | 1 |
| 1,000 | R=1,5D | 1 | AABA000140 | L.fl | 1 |
| Diameter | Radius | Thickness | Item ID | Edge | Segments |
|---|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | |||
| 80 | R=1,5D | 0.60 | ABBA000065 | fb | 1 |
| 100 | R=1,5D | 0.60 | ABBA000066 | fb | 1 |
| 120 | R=1,5D | 0.60 | ABBA000067 | fb | 1 |
| 140 | R=1,5D | 0.60 | ABBA000068 | fb | 1 |
| 150 | R=1,5D | 0.60 | ABBA000069 | fb | 1 |
| 160 | R=1,5D | 0.60 | ABBA000070 | fb | 1 |
| 180 | R=1,5D | 0.60 | ABBA000071 | fb | 1 |
| 200 | R=1,5D | 0.60 | ABBA000072 | fb | 1 |
| 225 | R=1,5D | 0.60 | ABBA000073 | fb | 1 |
| 250 | R=1,5D | 0.60 | ABBA000074 | fb | 1 |
| 275 | R=1,5D | 0.80 | ABBA000075 | fb | 1 |
| 280 | R=1,5D | 0.80 | ABBA000086 | fb | 1 |
| 300 | R=1,5D | 0.80 | ABBA000076 | fb | 1 |
| 315 | R=1,5D | 0.80 | ABBA000077 | fb | 1 |
| 350 | R=1,5D | 0.80 | ABBA000078 | fb | 1 |
| 400 | R=1,5D | 0.80 | ABBA000079 | fb | 1 |
| 450 | R=1,5D | 0.80 | ABBA000080 | fb | 1 |
| 500 | R=1,5D | 0.80 | ABBA000081 | fb | 1 |
