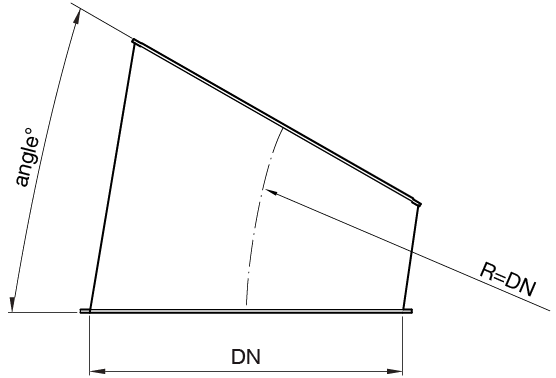

Cút hàn loại dày 15°

Cút ghép múi được tạo thành từ các đoạn hàn kín hoàn toàn.

Dòng sản phẩm

Diameter	Radius	Thickness	Item ID	Edge
Ød, mm	R, mm	s, mm
80	R=130	1.5	BABB000115	fb
100	R=130	1.5	BABB000116	fb
100	R=130	2	BABB000136	fb
120	R=155	1.5	BABB000117	fb
120	R=155	2	BABB000137	fb
140	R=185	1.5	BABB000118	fb
140	R=185	2	BABB000138	fb
150	R=250	1.5	BABB000119	fb
150	R=250	2	BABB000139	fb
150	R=250	3	BABB000156	fb
160	R=265	1.5	BABB000120	fb
160	R=265	2	BABB000140	fb
175	R=280	1.5	BABB000121	fb
175	R=280	2	BABB000141	fb
175	R=280	3	BABB000157	fb
200	R=270	1.5	BABB000122	fb
200	R=270	2	BABB000142	fb
200	R=270	3	BABB000158	fb
224	R=220	1.5	BABB000123	fb
224	R=220	2	BABB000143	fb
224	R=220	3	BABB000159	fb
250	R=310	1.5	BABB000124	fb
250	R=310	2	BABB000144	fb
250	R=310	3	BABB000160	fb
280	R=D	1.5	BABB000125	fb
280	R=D	2	BABB000145	fb
280	R=D	3	BABB000161	fb
300	R=310	1.5	BABB000126	fb
300	R=310	2	BABB000146	fb
300	R=310	3	BABB000162	fb
315	R=D	1.5	BABB000127	fb
315	R=D	2	BABB000147	fb
315	R=D	3	BABB000163	fb
350	R=D	1.5	BABB000128	fb
350	R=D	2	BABB000148	fb
350	R=D	3	BABB000164	fb
400	R=D	1.5	BABB000129	fb
400	R=D	2	BABB000149	fb
400	R=D	3	BABB000165	fb
450	R=D	1.5	BABB000130	fb
450	R=D	2	BABB000150	fb
450	R=D	3	BABB000166	fb
500	R=D	1.5	BABB000131	fb
500	R=D	2	BABB000151	fb
500	R=D	3	BABB000167	fb
560	R=D	2	BABB000153	fb
560	R=D	3	BABB000169	fb
630	R=D	2	BABB000155	fb
630	R=D	3	BABB000171	fb

Diameter	Radius	Thickness	Item ID	Edge
Ød, mm	R, mm	s, mm
80	R=130	1.50	BDBB000043	fb
100	R=130	1.50	BDBB000044	fb
120	R=155	1.50	BDBB000045	fb
140	R=185	1.50	BDBB000046	fb
150	R=250	1.50	BDBB000047	fb
160	R=265	1.50	BDBB000048	fb
175	R=280	1.50	BDBB000049	fb
200	R=270	1.50	BDBB000050	fb
224	R=220	1.50	BDBB000051	fb
250	R=310	1.50	BDBB000052	fb
280	R=D	1.50	BDBB000053	fb
300	R=310	1.50	BDBB000054	fb
315	R=D	1.50	BDBB000055	fb
350	R=D	1.50	BDBB000056	fb
400	R=D	1.50	BDBB000057	fb
450	R=D	1.50	BDBB000058	fb
500	R=D	1.50	BDBB000059	fb

Diameter	Radius	Thickness	Item ID	Edge
Ød, mm	R, mm	s, mm
80	R=130	1.50	BBBB000083	fb
100	R=130	1.50	BBBB000084	fb
100	R=130	2.00	BBBB000104	fb
120	R=155	1.50	BBBB000085	fb
120	R=155	2.00	BBBB000105	fb
140	R=185	1.50	BBBB000086	fb
140	R=185	2.00	BBBB000106	fb
150	R=250	1.50	BBBB000087	fb
150	R=250	2.00	BBBB000107	fb
160	R=265	1.50	BBBB000088	fb
160	R=630	2.00	BBBB000108	fb
175	R=280	1.50	BBBB000089	fb
175	R=280	2.00	BBBB000109	fb
200	R=270	1.50	BBBB000090	fb
200	R=270	2.00	BBBB000110	fb
224	R=220	1.50	BBBB000091	fb
224	R=220	2.00	BBBB000111	fb
250	R=310	1.50	BBBB000092	fb
250	R=310	2.00	BBBB000112	fb
280	R=D	1.50	BBBB000093	fb
280	R=D	2.00	BBBB000113	fb
300	R=310	1.50	BBBB000094	fb
300	R=310	2.00	BBBB000114	fb
315	R=D	1.50	BBBB000095	fb
315	R=D	2.00	BBBB000115	fb
350	R=D	1.50	BBBB000096	fb
350	R=D	2.00	BBBB000116	fb
400	R=D	1.50	BBBB000097	fb
400	R=D	2.00	BBBB000117	fb
450	R=D	1.50	BBBB000098	fb
450	R=D	2.00	BBBB000118	fb
500	R=D	1.50	BBBB000099	fb
500	R=D	2.00	BBBB000119	fb
560	R=D	2.00	BBBB000121	fb
630	R=D	2.00	BBBB000123	fb
