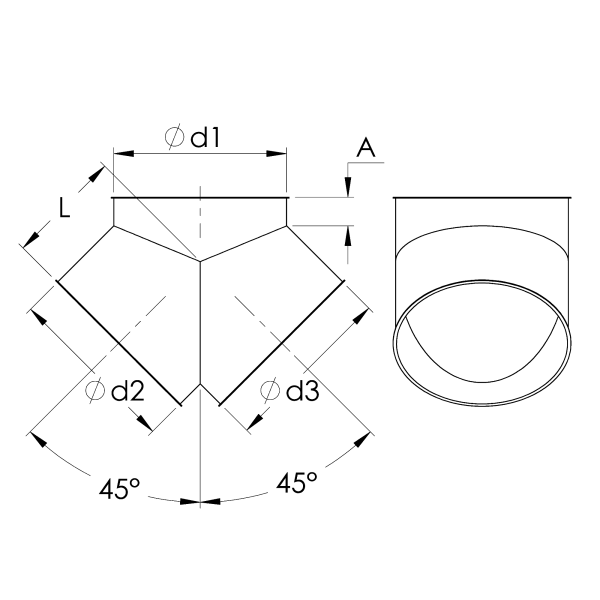

Nhánh chữ Y hình trụ hàn kín hoàn toàn ở góc 2 x 45º với ba đường kính bằng nhau. Các nhánh chữ Y này thích hợp để vận chuyển vật liệu thải như bụi và dăm bào, cũng như vận chuyển ngũ cốc và các loại tương tự.
| Diameter | Diameter 2 | Diameter 3 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| Ød, mm | Ød, mm | Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 80 | 80 | 1.5 | BACE000001 | fb |
| 100 | 100 | 100 | 100 | 1.5 | BACE000002 | fb |
| 100 | 100 | 100 | 100 | 2 | BACE000022 | fb |
| 120 | 120 | 120 | 110 | 1.5 | BACE000003 | fb |
| 120 | 120 | 120 | 110 | 2 | BACE000023 | fb |
| 140 | 140 | 140 | 120 | 1.5 | BACE000004 | fb |
| 140 | 140 | 140 | 120 | 2 | BACE000024 | fb |
| 150 | 150 | 150 | 125 | 1.5 | BACE000005 | fb |
| 150 | 150 | 150 | 125 | 2 | BACE000025 | fb |
| 150 | 150 | 150 | 125 | 3 | BACE000042 | fb |
| 160 | 160 | 160 | 135 | 1.5 | BACE000006 | fb |
| 160 | 160 | 160 | 135 | 2 | BACE000026 | fb |
| 175 | 175 | 175 | 140 | 1.5 | BACE000007 | fb |
| 175 | 175 | 175 | 140 | 2 | BACE000027 | fb |
| 175 | 175 | 175 | 140 | 3 | BACE000043 | fb |
| 200 | 200 | 200 | 170 | 1.5 | BACE000008 | fb |
| 200 | 200 | 200 | 170 | 2 | BACE000028 | fb |
| 200 | 200 | 200 | 170 | 3 | BACE000044 | fb |
| 224 | 224 | 224 | 190 | 1.5 | BACE000009 | fb |
| 224 | 224 | 224 | 190 | 2 | BACE000029 | fb |
| 224 | 224 | 224 | 190 | 3 | BACE000045 | fb |
| 250 | 250 | 250 | 200 | 1.5 | BACE000010 | fb |
| 250 | 250 | 250 | 200 | 2 | BACE000030 | fb |
| 250 | 250 | 250 | 200 | 3 | BACE000046 | fb |
| 280 | 280 | 280 | 210 | 1.5 | BACE000011 | fb |
| 280 | 280 | 280 | 210 | 2 | BACE000031 | fb |
| 280 | 280 | 280 | 210 | 3 | BACE000047 | fb |
| 300 | 300 | 300 | 220 | 1.5 | BACE000012 | fb |
| 300 | 300 | 300 | 220 | 2 | BACE000032 | fb |
| 300 | 300 | 300 | 220 | 3 | BACE000048 | fb |
| 315 | 315 | 315 | 235 | 1.5 | BACE000013 | fb |
| 315 | 315 | 315 | 235 | 2 | BACE000033 | fb |
| 315 | 315 | 315 | 235 | 3 | BACE000049 | fb |
| 350 | 350 | 350 | 250 | 1.5 | BACE000014 | fb |
| 350 | 350 | 350 | 250 | 2 | BACE000034 | fb |
| 350 | 350 | 350 | 250 | 3 | BACE000050 | fb |
| 400 | 400 | 400 | 270 | 1.5 | BACE000015 | fb |
| 400 | 400 | 400 | 270 | 2 | BACE000035 | fb |
| 400 | 400 | 400 | 270 | 3 | BACE000051 | fb |
| 450 | 450 | 450 | 300 | 1.5 | BACE000016 | fb |
| 450 | 450 | 450 | 300 | 2 | BACE000036 | fb |
| 450 | 450 | 450 | 300 | 3 | BACE000052 | fb |
| 500 | 500 | 500 | 325 | 1.5 | BACE000017 | fb |
| 500 | 500 | 500 | 325 | 2 | BACE000037 | fb |
| 500 | 500 | 500 | 325 | 3 | BACE000053 | fb |
| 560 | 560 | 560 | 375 | 2 | BACE000039 | fb |
| 560 | 560 | 560 | 375 | 3 | BACE000055 | fb |
| 630 | 630 | 630 | 400 | 2 | BACE000041 | fb |
| 630 | 630 | 630 | 400 | 3 | BACE000057 | fb |
| Diameter | Diameter 2 | Diameter 3 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| Ød, mm | Ød, mm | Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 80 | 80 | 1.50 | BDCE000001 | fb |
| 100 | 100 | 100 | 100 | 1.50 | BDCE000002 | fb |
| 120 | 120 | 120 | 110 | 1.50 | BDCE000003 | fb |
| 140 | 140 | 140 | 120 | 1.50 | BDCE000004 | fb |
| 150 | 150 | 150 | 125 | 1.50 | BDCE000005 | fb |
| 160 | 160 | 160 | 135 | 1.50 | BDCE000006 | fb |
| 175 | 175 | 175 | 140 | 1.50 | BDCE000007 | fb |
| 200 | 200 | 200 | 170 | 1.50 | BDCE000008 | fb |
| 224 | 224 | 224 | 190 | 1.50 | BDCE000009 | fb |
| 250 | 250 | 250 | 200 | 1.50 | BDCE000010 | fb |
| 280 | 280 | 280 | 210 | 1.50 | BDCE000011 | fb |
| 300 | 300 | 300 | 220 | 1.50 | BDCE000012 | fb |
| 315 | 315 | 315 | 235 | 1.50 | BDCE000013 | fb |
| 350 | 350 | 350 | 250 | 1.50 | BDCE000014 | fb |
| 400 | 400 | 400 | 270 | 1.50 | BDCE000015 | fb |
| 450 | 450 | 450 | 300 | 1.50 | BDCE000016 | fb |
| 500 | 500 | 500 | 325 | 1.50 | BDCE000017 | fb |
| Diameter | Diameter 2 | Diameter 3 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|---|
| Ød, mm | Ød, mm | Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 80 | 80 | 1.50 | BBCE000001 | fb |
| 100 | 100 | 100 | 100 | 1.50 | BBCE000002 | fb |
| 100 | 100 | 100 | 100 | 2.00 | BBCE000022 | fb |
| 120 | 120 | 120 | 110 | 1.50 | BBCE000003 | fb |
| 120 | 120 | 120 | 110 | 2.00 | BBCE000023 | fb |
| 140 | 140 | 140 | 120 | 1.50 | BBCE000004 | fb |
| 140 | 140 | 140 | 120 | 2.00 | BBCE000024 | fb |
| 150 | 150 | 150 | 125 | 1.50 | BBCE000005 | fb |
| 150 | 150 | 150 | 125 | 2.00 | BBCE000025 | fb |
| 160 | 160 | 160 | 135 | 1.50 | BBCE000006 | fb |
| 160 | 160 | 160 | 135 | 2.00 | BBCE000026 | fb |
| 175 | 175 | 175 | 140 | 1.50 | BBCE000007 | fb |
| 175 | 175 | 175 | 140 | 2.00 | BBCE000027 | fb |
| 200 | 200 | 200 | 170 | 1.50 | BBCE000008 | fb |
| 200 | 200 | 200 | 170 | 2.00 | BBCE000028 | fb |
| 224 | 224 | 224 | 190 | 1.50 | BBCE000009 | fb |
| 224 | 224 | 224 | 190 | 2.00 | BBCE000029 | fb |
| 250 | 250 | 250 | 200 | 1.50 | BBCE000010 | fb |
| 250 | 250 | 250 | 200 | 2.00 | BBCE000030 | fb |
| 280 | 280 | 280 | 210 | 1.50 | BBCE000011 | fb |
| 280 | 280 | 280 | 210 | 2.00 | BBCE000031 | fb |
| 300 | 300 | 300 | 220 | 1.50 | BBCE000012 | fb |
| 300 | 300 | 300 | 220 | 2.00 | BBCE000032 | fb |
| 315 | 315 | 315 | 235 | 1.50 | BBCE000013 | fb |
| 315 | 315 | 315 | 235 | 2.00 | BBCE000033 | fb |
| 350 | 350 | 350 | 250 | 1.50 | BBCE000014 | fb |
| 350 | 350 | 350 | 250 | 2.00 | BBCE000034 | fb |
| 400 | 400 | 400 | 270 | 1.50 | BBCE000015 | fb |
| 400 | 400 | 400 | 270 | 2.00 | BBCE000035 | fb |
| 450 | 450 | 450 | 300 | 1.50 | BBCE000016 | fb |
| 450 | 450 | 450 | 300 | 2.00 | BBCE000036 | fb |
| 500 | 500 | 500 | 325 | 1.50 | BBCE000017 | fb |
| 500 | 500 | 500 | 325 | 2.00 | BBCE000037 | fb |
| 560 | 560 | 560 | 375 | 2.00 | BBCE000039 | fb |
| 630 | 630 | 630 | 400 | 2.00 | BBCE000041 | fb |
