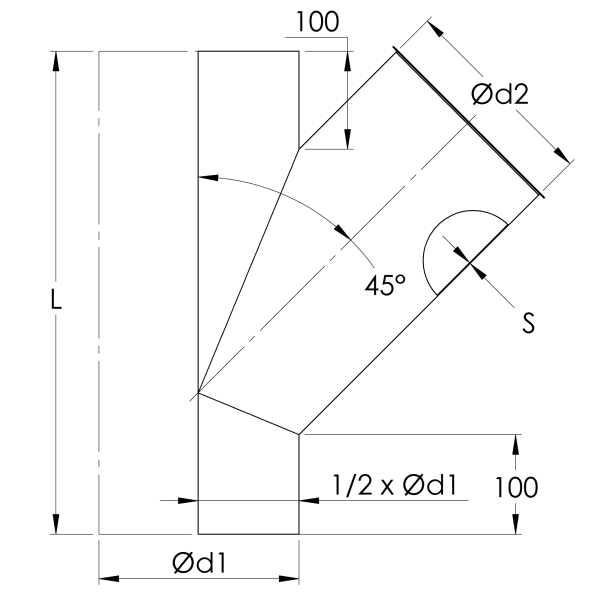

Tấm rẽ nhánh cho ống

Nhánh rẽ được hàn lăn dọc thân với nhánh phụ hàn điểm, dùng cho hệ thống áp suất dương, áp suất âm và không áp.

Dòng sản phẩm

Galva / Untreated

Diameter	Diameter 2	Length	Thickness	Item ID	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
80	80	213	0.88	AACD000001	fb
100	80	213	0.88	AACD000002	fb
100	100	241	0.88	AACD000029	fb
120	80	213	0.88	AACD000003	fb
120	100	241	0.88	AACD000030	fb
120	120	270	0.88	AACD000056	fb
125	80	213	0.88	AACD000409	fb
125	125	277	0.88	AACD000411	fb
140	80	213	0.88	AACD000004	fb
140	100	241	0.88	AACD000031	fb
140	120	270	0.88	AACD000057	fb
140	140	298	0.88	AACD000082	fb
150	80	213	0.88	AACD000005	fb
150	100	241	0.88	AACD000032	fb
150	120	270	0.88	AACD000058	fb
150	140	298	0.88	AACD000083	fb
150	150	312	0.88	AACD000107	fb
160	80	213	0.88	AACD000006	fb
160	100	241	0.88	AACD000033	fb
160	120	270	0.88	AACD000059	fb
160	140	298	0.88	AACD000084	fb
160	150	312	0.88	AACD000108	fb
160	160	326	0.88	AACD000131	fb
180	80	213	0.88	AACD000007	fb
180	100	241	0.88	AACD000034	fb
180	120	270	0.88	AACD000060	fb
180	140	298	0.88	AACD000085	fb
180	150	312	0.88	AACD000109	fb
180	160	326	0.88	AACD000132	fb
180	180	355	0.88	AACD000154	fb
200	80	213	0.88	AACD000008	fb
200	100	241	0.88	AACD000035	fb
200	120	270	0.88	AACD000061	fb
200	140	298	0.88	AACD000086	fb
200	150	312	0.88	AACD000110	fb
200	160	326	0.88	AACD000133	fb
200	180	355	0.88	AACD000155	fb
200	200	383	0.88	AACD000176	fb
225	80	213	0.88	AACD000009	fb
225	100	241	0.88	AACD000036	fb
225	120	270	0.88	AACD000062	fb
225	140	298	0.88	AACD000087	fb
225	150	312	0.88	AACD000111	fb
225	160	326	0.88	AACD000134	fb
225	180	355	0.88	AACD000156	fb
225	200	383	0.88	AACD000177	fb
225	225	418	0.88	AACD000197	fb
250	80	213	0.88	AACD000010	fb
250	100	241	0.88	AACD000037	fb
250	120	270	0.88	AACD000063	fb
250	140	298	0.88	AACD000088	fb
250	150	312	0.88	AACD000112	fb
250	160	326	0.88	AACD000135	fb
250	180	355	0.88	AACD000157	fb
250	200	383	0.88	AACD000178	fb
250	225	418	0.88	AACD000198	fb
250	250	554	0.88	AACD000217	fb
275	80	213	0.88	AACD000011	fb
275	100	241	0.88	AACD000038	fb
275	120	270	0.88	AACD000064	fb
275	140	298	0.88	AACD000089	fb
275	150	312	0.88	AACD000113	fb
275	160	326	0.88	AACD000136	fb
275	180	355	0.88	AACD000158	fb
275	200	383	0.88	AACD000179	fb
275	225	418	0.88	AACD000199	fb
275	250	554	0.88	AACD000218	fb
275	275	589	0.88	AACD000236	fb
280	80	213	0.88	AACD000410	fb
280	280	596	0.88	AACD000412	fb
300	80	213	0.88	AACD000012	fb
300	100	241	0.88	AACD000039	fb
300	120	270	0.88	AACD000065	fb
300	140	298	0.88	AACD000090	fb
300	150	312	0.88	AACD000114	fb
300	160	326	0.88	AACD000137	fb
300	180	355	0.88	AACD000159	fb
300	200	383	0.88	AACD000180	fb
300	225	418	0.88	AACD000200	fb
300	250	554	0.88	AACD000219	fb
300	275	589	0.88	AACD000237	fb
300	300	624	0.88	AACD000254	fb
315	80	213	0.88	AACD000013	fb
315	100	241	0.88	AACD000040	fb
315	120	270	0.88	AACD000066	fb
315	140	298	0.88	AACD000091	fb
315	150	312	0.88	AACD000115	fb
315	160	326	0.88	AACD000138	fb
315	180	355	0.88	AACD000160	fb
315	200	383	0.88	AACD000181	fb
315	225	418	0.88	AACD000201	fb
315	250	554	0.88	AACD000220	fb
315	275	589	0.88	AACD000238	fb
315	300	624	0.88	AACD000255	fb
315	315	645	0.88	AACD000271	fb
350	80	213	0.88	AACD000014	fb
350	100	241	0.88	AACD000041	fb
350	120	270	0.88	AACD000067	fb
350	140	298	0.88	AACD000092	fb
350	150	312	0.88	AACD000116	fb
350	160	326	0.88	AACD000139	fb
350	180	355	0.88	AACD000161	fb
350	200	383	0.88	AACD000182	fb
350	225	418	0.88	AACD000202	fb
350	250	554	0.88	AACD000221	fb
350	275	589	0.88	AACD000239	fb
350	300	624	0.88	AACD000256	fb
350	315	645	0.88	AACD000272	fb
350	350	695	0.88	AACD000287	fb
400	80	213	0.88	AACD000015	fb
400	100	241	0.88	AACD000042	fb
400	120	270	0.88	AACD000068	fb
400	140	298	0.88	AACD000093	fb
400	150	312	0.88	AACD000117	fb
400	160	326	0.88	AACD000140	fb
400	180	355	0.88	AACD000162	fb
400	200	383	0.88	AACD000183	fb
400	225	418	0.88	AACD000203	fb
400	250	554	0.88	AACD000222	fb
400	275	589	0.88	AACD000240	fb
400	300	624	0.88	AACD000257	fb
400	315	645	0.88	AACD000273	fb
400	350	695	0.88	AACD000288	fb
400	400	766	0.88	AACD000302	fb
450	80	213	0.88	AACD000016	fb
450	100	241	0.88	AACD000043	fb
450	120	270	0.88	AACD000069	fb
450	140	298	0.88	AACD000094	fb
450	150	312	0.88	AACD000118	fb
450	160	326	0.88	AACD000141	fb
450	180	355	0.88	AACD000163	fb
450	200	383	0.88	AACD000184	fb
450	225	418	0.88	AACD000204	fb
450	250	554	0.88	AACD000223	fb
450	275	589	0.88	AACD000241	fb
450	300	624	0.88	AACD000258	fb
450	315	645	0.88	AACD000274	fb
450	350	695	0.88	AACD000289	fb
450	400	766	0.88	AACD000303	fb
450	450	836	0.88	AACD000316	fb
500	80	213	0.88	AACD000017	fb
500	100	241	0.88	AACD000044	fb
500	120	270	0.88	AACD000070	fb
500	140	298	0.88	AACD000095	fb
500	150	312	0.88	AACD000119	fb
500	160	326	0.88	AACD000142	fb
500	180	355	0.88	AACD000164	fb
500	200	383	0.88	AACD000185	fb
500	225	418	0.88	AACD000205	fb
500	250	554	0.88	AACD000224	fb
500	275	589	0.88	AACD000242	fb
500	300	624	0.88	AACD000259	fb
500	315	645	0.88	AACD000275	fb
500	350	695	0.88	AACD000290	fb
500	400	766	0.88	AACD000304	fb
500	450	836	0.88	AACD000317	fb
500	500	907	0.88	AACD000329	fb
550	80	213	0.88	AACD000018	fb
550	100	241	0.88	AACD000045	fb
550	120	270	0.88	AACD000071	fb
550	140	298	0.88	AACD000096	fb
550	150	312	0.88	AACD000120	fb
550	160	326	0.88	AACD000143	fb
550	180	355	0.88	AACD000165	fb
550	200	383	0.88	AACD000186	fb
550	225	418	0.88	AACD000206	fb
550	250	554	0.88	AACD000225	fb
550	275	589	0.88	AACD000243	fb
550	300	624	0.88	AACD000260	fb
550	315	645	0.88	AACD000276	fb
550	350	695	0.88	AACD000291	fb
550	400	766	0.88	AACD000305	fb
550	450	836	0.88	AACD000318	fb
550	500	907	0.88	AACD000330	fb
550	550	978	0.88	AACD000341	fb
600	80	213	0.88	AACD000019	fb
600	100	241	0.88	AACD000046	fb
600	120	270	0.88	AACD000072	fb
600	140	298	0.88	AACD000097	fb
600	150	312	0.88	AACD000121	fb
600	160	326	0.88	AACD000144	fb
600	180	355	0.88	AACD000166	fb
600	200	383	0.88	AACD000187	fb
600	225	418	0.88	AACD000207	fb
600	250	554	0.88	AACD000226	fb
600	275	589	0.88	AACD000244	fb
600	300	624	0.88	AACD000261	fb
600	315	645	0.88	AACD000277	fb
600	350	695	0.88	AACD000292	fb
600	400	766	0.88	AACD000306	fb
600	450	836	0.88	AACD000319	fb
600	500	907	0.88	AACD000331	fb
600	550	978	0.88	AACD000342	fb
600	600	1,049	0.88	AACD000352	fb
630	80	213	0.88	AACD000020	fb
630	100	241	0.88	AACD000047	fb
630	120	270	0.88	AACD000073	fb
630	140	298	0.88	AACD000098	fb
630	150	312	0.88	AACD000122	fb
630	160	326	0.88	AACD000145	fb
630	180	355	0.88	AACD000167	fb
630	200	383	0.88	AACD000188	fb
630	225	418	0.88	AACD000208	fb
630	250	554	0.88	AACD000227	fb
630	275	589	0.88	AACD000245	fb
630	300	624	0.88	AACD000262	fb
630	315	645	0.88	AACD000278	fb
630	350	695	0.88	AACD000293	fb
630	400	766	0.88	AACD000307	fb
630	450	836	0.88	AACD000320	fb
630	500	907	0.88	AACD000332	fb
630	550	978	0.88	AACD000343	fb
630	600	1,049	0.88	AACD000353	fb
630	630	1,091	0.88	AACD000362	fb
650	80	213	0.88	AACD000021	fb
650	100	241	0.88	AACD000048	fb
650	120	270	0.88	AACD000074	fb
650	140	298	0.88	AACD000099	fb
650	150	312	0.88	AACD000123	fb
650	160	326	0.88	AACD000146	fb
650	180	355	0.88	AACD000168	fb
650	200	383	0.88	AACD000189	fb
650	225	418	0.88	AACD000209	fb
650	250	554	0.88	AACD000228	fb
650	275	589	0.88	AACD000246	fb
650	300	624	0.88	AACD000263	fb
650	315	645	0.88	AACD000279	fb
650	350	695	0.88	AACD000294	fb
650	400	766	0.88	AACD000308	fb
650	450	836	0.88	AACD000321	fb
650	500	907	0.88	AACD000333	fb
650	550	978	0.88	AACD000344	fb
650	600	1,049	0.88	AACD000354	fb
650	630	1,091	0.88	AACD000363	fb
650	650	1,119	0.88	AACD000371	fb
700	80	213	0.88	AACD000022	fb
700	100	241	0.88	AACD000049	fb
700	120	270	0.88	AACD000075	fb
700	140	298	0.88	AACD000100	fb
700	150	312	0.88	AACD000124	fb
700	160	326	0.88	AACD000147	fb
700	180	355	0.88	AACD000169	fb
700	200	383	0.88	AACD000190	fb
700	225	418	0.88	AACD000210	fb
700	250	554	0.88	AACD000229	fb
700	275	589	0.88	AACD000247	fb
700	300	624	0.88	AACD000264	fb
700	315	645	0.88	AACD000280	fb
700	350	695	0.88	AACD000295	fb
700	400	766	0.88	AACD000309	fb
700	450	836	0.88	AACD000322	fb
700	500	907	0.88	AACD000334	fb
700	550	978	0.88	AACD000345	fb
700	600	1,049	0.88	AACD000355	fb
700	630	1,091	0.88	AACD000364	fb
700	650	1,119	0.88	AACD000372	fb
700	700	1,190	0.88	AACD000384	L.fl
700	700	1,190	0.88	AACD000407	fb
750	80	213	0.88	AACD000023	fb
750	100	241	0.88	AACD000050	fb
750	120	270	0.88	AACD000076	fb
750	140	298	0.88	AACD000101	fb
750	150	312	0.88	AACD000125	fb
750	160	326	0.88	AACD000148	fb
750	180	355	0.88	AACD000170	fb
750	200	383	0.88	AACD000191	fb
750	225	418	0.88	AACD000211	fb
750	250	554	0.88	AACD000230	fb
750	275	589	0.88	AACD000248	fb
750	300	624	0.88	AACD000265	fb
750	315	645	0.88	AACD000281	fb
750	350	695	0.88	AACD000296	fb
750	400	766	0.88	AACD000310	fb
750	450	836	0.88	AACD000323	fb
750	500	907	0.88	AACD000335	fb
750	550	978	0.88	AACD000346	fb
750	600	1,049	0.88	AACD000356	fb
750	630	1,091	0.88	AACD000365	fb
750	650	1,119	0.88	AACD000373	fb
750	700	1,190	0.88	AACD000379	L.fl
750	750	1,261	0.88	AACD000390	L.fl
750	750	1,261	0.88	AACD000408	fb
800	80	213	0.88	AACD000024	fb
800	100	241	0.88	AACD000051	fb
800	120	270	0.88	AACD000077	fb
800	140	298	0.88	AACD000102	fb
800	150	312	0.88	AACD000126	fb
800	160	326	0.88	AACD000149	fb
800	180	355	0.88	AACD000171	fb
800	200	383	0.88	AACD000192	fb
800	225	418	0.88	AACD000212	fb
800	250	554	0.88	AACD000231	fb
800	275	589	0.88	AACD000249	fb
800	300	624	0.88	AACD000266	fb
800	315	645	0.88	AACD000282	fb
800	350	695	0.88	AACD000297	fb
800	400	766	0.88	AACD000311	fb
800	450	836	0.88	AACD000324	fb
800	500	907	0.88	AACD000336	fb
800	550	978	0.88	AACD000347	fb
800	600	1,049	0.88	AACD000357	fb
800	630	1,091	0.88	AACD000366	fb
800	650	1,119	0.88	AACD000374	fb
800	700	1,190	0.88	AACD000380	L.fl
800	750	1,261	0.88	AACD000386	L.fl
800	800	1,331	0.88	AACD000392	L.fl
800	800	1,331	0.88	AACD000413	fb
850	80	213	0.88	AACD000025	fb
850	100	241	0.88	AACD000052	fb
850	120	270	0.88	AACD000078	fb
850	140	298	0.88	AACD000103	fb
850	150	312	0.88	AACD000127	fb
850	160	326	0.88	AACD000150	fb
850	180	355	0.88	AACD000172	fb
850	200	383	0.88	AACD000193	fb
850	225	418	0.88	AACD000213	fb
850	250	554	0.88	AACD000232	fb
850	275	589	0.88	AACD000250	fb
850	300	624	0.88	AACD000267	fb
850	315	645	0.88	AACD000283	fb
850	350	695	0.88	AACD000298	fb
850	400	766	0.88	AACD000312	fb
850	450	836	0.88	AACD000325	fb
850	500	907	0.88	AACD000337	fb
850	550	978	0.88	AACD000348	fb
850	600	1,049	0.88	AACD000358	fb
850	630	1,091	0.88	AACD000367	fb
850	650	1,119	0.88	AACD000375	fb
850	700	1,190	0.88	AACD000381	L.fl
850	750	1,261	0.88	AACD000387	L.fl
850	800	1,331	0.88	AACD000393	L.fl
850	850	1,402	0.88	AACD000397	L.fl
850	850	1,402	0.88	AACD000414	fb
900	80	213	0.88	AACD000026	fb
900	100	241	0.88	AACD000053	fb
900	120	270	0.88	AACD000079	fb
900	140	298	0.88	AACD000104	fb
900	150	312	0.88	AACD000128	fb
900	160	326	0.88	AACD000151	fb
900	180	355	0.88	AACD000173	fb
900	200	383	0.88	AACD000194	fb
900	225	418	0.88	AACD000214	fb
900	250	554	0.88	AACD000233	fb
900	275	589	0.88	AACD000251	fb
900	300	624	0.88	AACD000268	fb
900	315	645	0.88	AACD000284	fb
900	350	695	0.88	AACD000299	fb
900	400	766	0.88	AACD000313	fb
900	450	836	0.88	AACD000326	fb
900	500	907	0.88	AACD000338	fb
900	550	978	0.88	AACD000349	fb
900	600	1,049	0.88	AACD000359	fb
900	630	1,091	0.88	AACD000368	fb
900	650	1,119	0.88	AACD000376	fb
900	700	1,190	0.88	AACD000382	L.fl
900	750	1,261	0.88	AACD000388	L.fl
900	800	1,331	0.88	AACD000394	L.fl
900	850	1,402	0.88	AACD000398	L.fl
900	900	1,473	0.88	AACD000401	L.fl
900	900	1,473	0.88	AACD000415	fb
950	80	213	0.88	AACD000027	fb
950	100	241	0.88	AACD000054	fb
950	120	270	0.88	AACD000080	fb
950	140	298	0.88	AACD000105	fb
950	150	312	0.88	AACD000129	fb
950	160	326	0.88	AACD000152	fb
950	180	355	0.88	AACD000174	fb
950	200	383	0.88	AACD000195	fb
950	225	418	0.88	AACD000215	fb
950	250	554	0.88	AACD000234	fb
950	275	589	0.88	AACD000252	fb
950	300	624	0.88	AACD000269	fb
950	315	645	0.88	AACD000285	fb
950	350	695	0.88	AACD000300	fb
950	400	766	0.88	AACD000314	fb
950	450	836	0.88	AACD000327	fb
950	500	907	0.88	AACD000339	fb
950	550	978	0.88	AACD000350	fb
950	600	1,049	0.88	AACD000360	fb
950	630	1,091	0.88	AACD000369	fb
950	650	1,119	0.88	AACD000377	fb
950	700	1,190	0.88	AACD000383	L.fl
950	750	1,261	0.88	AACD000389	L.fl
950	800	1,331	0.88	AACD000395	L.fl
950	850	1,402	0.88	AACD000399	L.fl
950	900	1,473	0.88	AACD000402	L.fl
950	950	1,544	0.88	AACD000404	L.fl
950	950	1,544	0.88	AACD000416	fb
1,000	80	213	0.88	AACD000028	fb
1,000	100	241	0.88	AACD000055	fb
1,000	120	270	0.88	AACD000081	fb
1,000	140	298	0.88	AACD000106	fb
1,000	150	312	0.88	AACD000130	fb
1,000	160	326	0.88	AACD000153	fb
1,000	180	355	0.88	AACD000175	fb
1,000	200	383	0.88	AACD000196	fb
1,000	225	418	0.88	AACD000216	fb
1,000	250	554	0.88	AACD000235	fb
1,000	275	589	0.88	AACD000253	fb
1,000	300	624	0.88	AACD000270	fb
1,000	315	645	0.88	AACD000286	fb
1,000	350	695	0.88	AACD000301	fb
1,000	400	766	0.88	AACD000315	fb
1,000	450	836	0.88	AACD000328	fb
1,000	500	907	0.88	AACD000340	fb
1,000	550	978	0.88	AACD000351	fb
1,000	600	1,049	0.88	AACD000361	fb
1,000	630	1,091	0.88	AACD000370	fb
1,000	650	1,119	0.88	AACD000378	fb
1,000	700	1,190	0.88	AACD000385	L.fl
1,000	750	1,261	0.88	AACD000391	L.fl
1,000	800	1,331	0.88	AACD000396	L.fl
1,000	850	1,402	0.88	AACD000400	L.fl
1,000	900	1,473	0.88	AACD000403	L.fl
1,000	950	1,544	0.88	AACD000405	L.fl
1,000	1,000	1,614	0.88	AACD000406	L.fl
1,000	1,000	1,614	0.88	AACD000417	fb

Tấm rẽ nhánh cho ống

Dòng sản phẩm

Downloads

Giới thiệu

Các sản phẩm liên quan

Cuộn dây và đầu nối

Van điện khí nén

Xi lanh khí nén tuyến tính

Bộ truyền động khí nén xoay

Bộ truyền động điện Belimo

Bộ truyền động điện xoay
