Bộ tiêu âm được làm bằng kim loại tấm mạ kẽm với vật liệu hút âm được áp dụng ở bên trong.

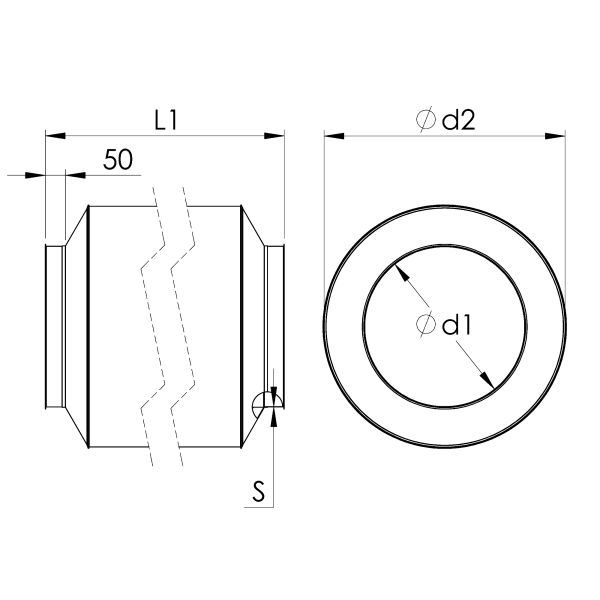

| Diameter | Diameter 2 | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|---|
| Ød, mm | Ød, mm | L, mm | s, mm | ||
| 100 | 300 | 1,000 | 0.88 | AAFA000037 | fb |
| 120 | 320 | 1,000 | 0.88 | AAFA000038 | fb |
| 125 | 325 | 1,000 | 0.88 | AAFA000321 | fb |
| 140 | 340 | 1,000 | 0.88 | AAFA000039 | fb |
| 150 | 350 | 1,000 | 0.88 | AAFA000040 | fb |
| 160 | 360 | 1,000 | 0.88 | AAFA000041 | fb |
| 180 | 380 | 1,000 | 0.88 | AAFA000042 | fb |
| 200 | 400 | 1,000 | 0.88 | AAFA000043 | fb |
| 225 | 425 | 1,000 | 0.88 | AAFA000044 | fb |
| 250 | 450 | 1,000 | 0.88 | AAFA000045 | fb |
| 275 | 475 | 1,000 | 0.88 | AAFA000046 | fb |
| 280 | 480 | 1,000 | 0.88 | AAFA000322 | fb |
| 300 | 500 | 1,000 | 0.88 | AAFA000047 | fb |
| 315 | 515 | 1,000 | 0.88 | AAFA000048 | fb |
| 350 | 550 | 1,000 | 0.88 | AAFA000049 | fb |
| 400 | 600 | 1,000 | 0.88 | AAFA000050 | fb |
| 450 | 650 | 1,000 | 0.88 | AAFA000051 | fb |
| 500 | 700 | 1,000 | 0.88 | AAFA000052 | fb |
| 550 | 750 | 1,000 | 0.88 | AAFA000053 | fb |
| 600 | 800 | 1,000 | 0.88 | AAFA000054 | fb |
| 630 | 830 | 1,000 | 0.88 | AAFA000055 | fb |
| 650 | 850 | 1,000 | 0.88 | AAFA000056 | fb |
| 700 | 900 | 1,000 | 0.88 | AAFA000323 | fb |
| 750 | 950 | 1,000 | 0.88 | AAFA000324 | fb |
| 800 | 1,000 | 1,000 | 0.88 | AAFA000325 | fb |
| 850 | 1,050 | 1,000 | 0.88 | AAFA000326 | fb |
| 900 | 1,100 | 1,000 | 0.88 | AAFA000327 | fb |
| 950 | 1,150 | 1,000 | 0.88 | AAFA000328 | fb |
| 1,000 | 1,200 | 1,000 | 0.88 | AAFA000329 | fb |
| 700 | 900 | 1,000 | 0.88 | AAFA000057 | L.fl |
| 750 | 950 | 1,000 | 0.88 | AAFA000058 | L.fl |
| 800 | 1,000 | 1,000 | 0.88 | AAFA000059 | L.fl |
| 850 | 1,050 | 1,000 | 0.88 | AAFA000060 | L.fl |
| 900 | 1,100 | 1,000 | 0.88 | AAFA000061 | L.fl |
| 950 | 1,150 | 1,000 | 0.88 | AAFA000062 | L.fl |
| 1,000 | 1,200 | 1,000 | 0.88 | AAFA000063 | L.fl |
