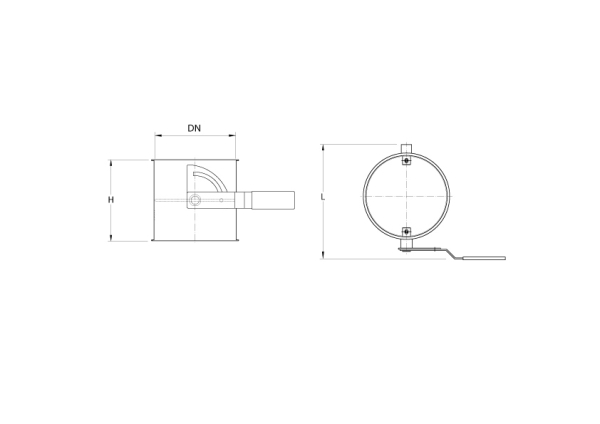

Van bướm tay hàn kín hoàn toàn để điều chỉnh lưu lượng khí trong hệ thống. Lưỡi van bướm được khóa ở vị trí mong muốn bằng cách siết chặt đai ốc cánh chuồn trên tay cầm.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 1.5 | BDDJ000001 | fb |
| 100 | 100 | 1.5 | BDDJ000002 | fb |
| 120 | 120 | 1.5 | BDDJ000003 | fb |
| 140 | 140 | 1.5 | BDDJ000004 | fb |
| 150 | 150 | 1.5 | BDDJ000005 | fb |
| 160 | 160 | 1.5 | BDDJ000006 | fb |
| 175 | 175 | 1.5 | BDDJ000007 | fb |
| 200 | 200 | 1.5 | BDDJ000008 | fb |
| 224 | 200 | 1.5 | BDDJ000009 | fb |
| 250 | 200 | 1.5 | BDDJ000010 | fb |
| 280 | 200 | 1.5 | BDDJ000011 | fb |
| 300 | 200 | 1.5 | BDDJ000012 | fb |
| 315 | 200 | 2 | BDDJ000013 | fb |
| 350 | 200 | 2 | BDDJ000014 | fb |
| 400 | 200 | 2 | BDDJ000015 | fb |
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 1.50 | BADJ000001 | fb |
| 100 | 100 | 1.50 | BADJ000002 | fb |
| 120 | 120 | 1.50 | BADJ000003 | fb |
| 140 | 140 | 1.50 | BADJ000004 | fb |
| 150 | 150 | 1.50 | BADJ000005 | fb |
| 160 | 160 | 1.50 | BADJ000006 | fb |
| 175 | 175 | 1.50 | BADJ000007 | fb |
| 200 | 200 | 1.50 | BADJ000008 | fb |
| 224 | 200 | 1.50 | BADJ000009 | fb |
| 250 | 200 | 1.50 | BADJ000010 | fb |
| 280 | 200 | 1.50 | BADJ000011 | fb |
| 300 | 200 | 1.50 | BADJ000012 | fb |
| 315 | 200 | 2.00 | BADJ000029 | fb |
| 350 | 200 | 2.00 | BADJ000030 | fb |
| 400 | 200 | 2.00 | BADJ000031 | fb |
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 80 | 80 | 1.50 | BBDJ000001 | fb |
| 100 | 100 | 1.50 | BBDJ000002 | fb |
| 100 | 100 | 2.00 | BBDJ000018 | fb |
| 120 | 120 | 1.50 | BBDJ000003 | fb |
| 120 | 120 | 2.00 | BBDJ000019 | fb |
| 140 | 140 | 1.50 | BBDJ000004 | fb |
| 140 | 140 | 2.00 | BBDJ000020 | fb |
| 150 | 150 | 1.50 | BBDJ000005 | fb |
| 150 | 150 | 2.00 | BBDJ000021 | fb |
| 160 | 160 | 1.50 | BBDJ000006 | fb |
| 160 | 160 | 2.00 | BBDJ000022 | fb |
| 175 | 175 | 1.50 | BBDJ000007 | fb |
| 175 | 175 | 2.00 | BBDJ000023 | fb |
| 200 | 200 | 1.50 | BBDJ000008 | fb |
| 200 | 200 | 2.00 | BBDJ000024 | fb |
| 224 | 200 | 1.50 | BBDJ000009 | fb |
| 224 | 200 | 2.00 | BBDJ000025 | fb |
| 250 | 200 | 1.50 | BBDJ000010 | fb |
| 250 | 200 | 2.00 | BBDJ000026 | fb |
| 280 | 200 | 1.50 | BBDJ000011 | fb |
| 280 | 200 | 2.00 | BBDJ000027 | fb |
| 300 | 200 | 1.50 | BBDJ000012 | fb |
| 300 | 200 | 2.00 | BBDJ000028 | fb |
| 315 | 200 | 2.00 | BBDJ000029 | fb |
| 350 | 200 | 2.00 | BBDJ000030 | fb |
| 400 | 200 | 2.00 | BBDJ000031 | fb |
