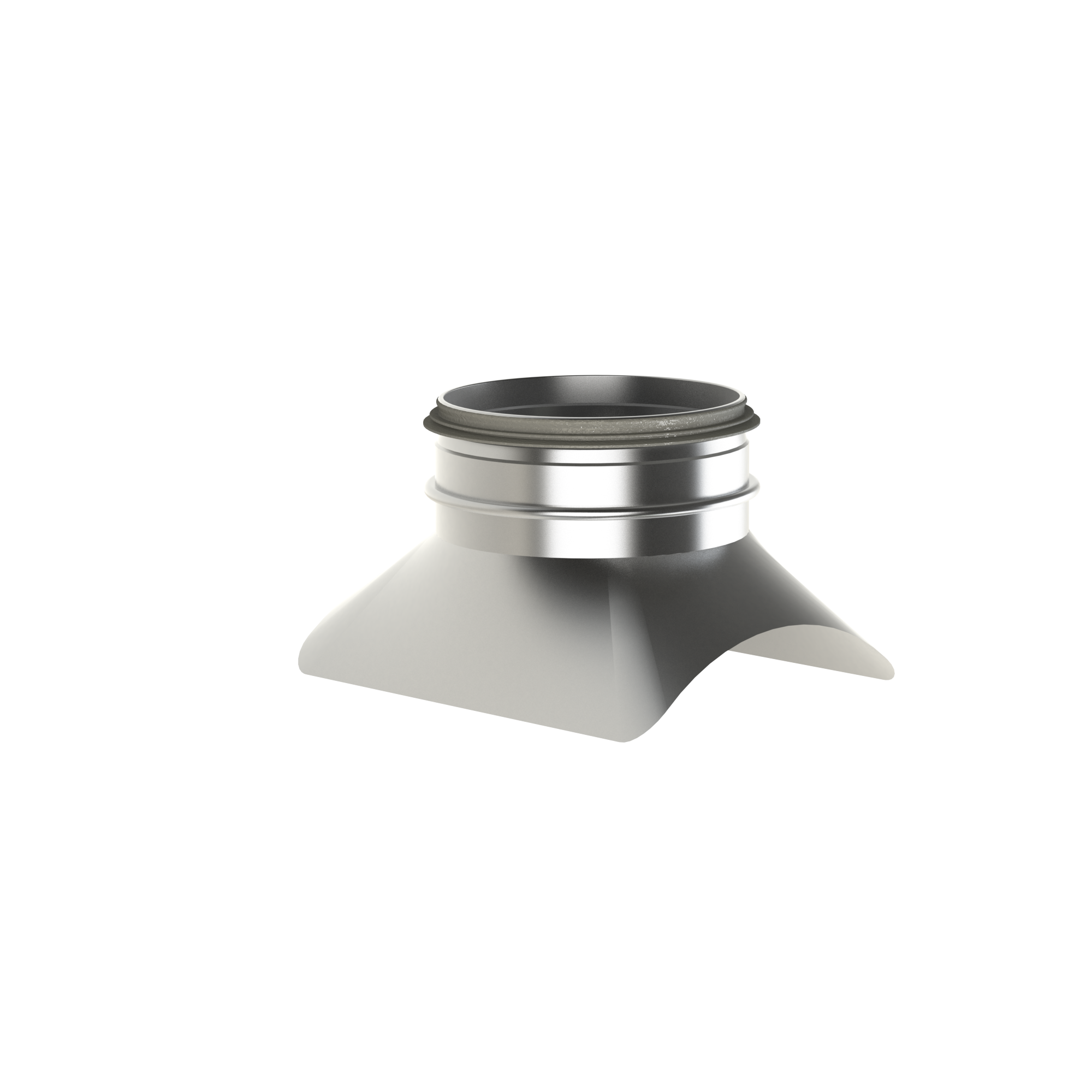

Yên ngựa

Yên ngựa đồng tâm gia công thủ công. Kích thước tiêu chuẩn lên đến Ø400.

Dòng sản phẩm

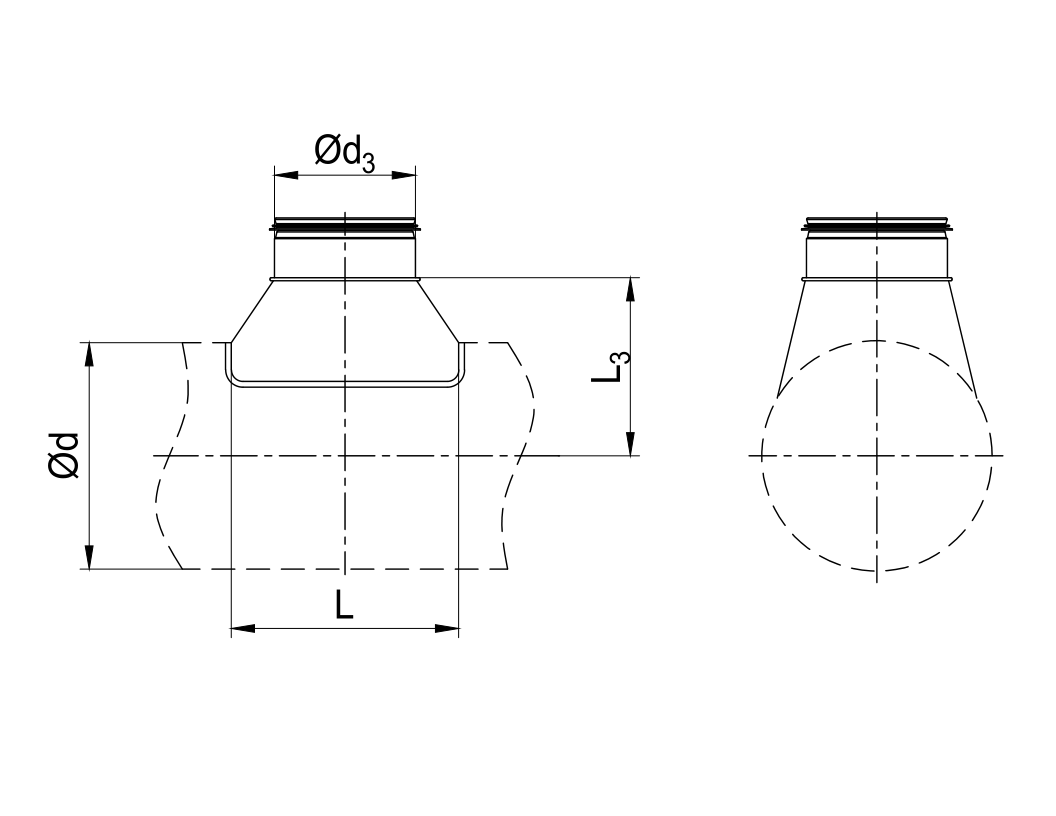

Diameter	Diameter 3	Length	Thickness	W	Item ID
d	d3	L	t	W
80	80	170	0.5	0.21	EACD100001
100	80	170	0.5	0.29	EACD100002
100	100	190	0.5	0.25	EACD100003
125	80	170	0.5	0.36	EACD100004
125	100	190	0.5	0.35	EACD100005
125	125	215	0.5	0.41	EACD100006
160	100	190	0.5	0.5	EACD100007
160	125	215	0.6	0.47	EACD100008
160	160	260	0.6	0.57	EACD100009
180	100	190	0.6	0.65	EACD100010
180	125	215	0.6	0.85	EACD100011
180	160	260	0.6	0.62	EACD100012
180	180	280	0.6	0.69	EACD100013
200	125	215	0.6	0.82	EACD100014
200	160	260	0.6	0.66	EACD100015
200	180	280	0.6	0.79	EACD100016
200	200	330	0.6	0.63	EACD100017
224	125	215	0.6	0.84	EACD100018
224	160	260	0.6	0.9	EACD100019
224	180	280	0.6	1.05	EACD100020
224	200	330	0.6	1.1	EACD100021
224	224	355	0.6	1.2	EACD100022
250	160	260	0.6	1.1	EACD100023
250	180	280	0.6	1.2	EACD100024
250	200	330	0.6	1.3	EACD100025
250	224	355	0.6	1.4	EACD100026
250	250	380	0.6	1.5	EACD100027
280	160	260	0.6	1.2	EACD100028
280	180	280	0.6	1.3	EACD100029
280	200	330	0.6	1.4	EACD100030
280	224	355	0.6	1.5	EACD100031
280	250	380	0.6	1.6	EACD100032
280	280	430	0.6	1.7	EACD100033
300	160	260	0.6	1.3	EACD100034
300	180	280	0.6	1.4	EACD100035
300	200	330	0.6	1.5	EACD100036
300	224	355	0.6	1.6	EACD100037
300	250	380	0.6	1.7	EACD100038
300	280	430	0.6	1.8	EACD100039
300	300	450	0.6	1.9	EACD100040
315	160	260	0.6	1.4	EACD100041
315	180	280	0.6	1.5	EACD100042
315	200	330	0.6	1.6	EACD100043
315	224	355	0.6	1.7	EACD100044
315	250	380	0.6	1.8	EACD100045
315	280	430	0.6	1.9	EACD100046
315	300	450	0.6	2	EACD100047
315	315	465	0.6	2.1	EACD100048
