Côn thu

Name: Côn thu - Formula Air
SKU: AAEA038 - VI

Côn thu được hàn lăn dọc thân dùng cho hệ thống áp suất dương, áp suất âm và không áp. Tất cả các côn thu của chúng tôi được sản xuất để có thể sử dụng mọi loại đai để lắp đặt. Bạn có thể sử dụng công cụ tính toán côn thu bên dưới để xác định giá trị chiều dài côn thu khi đã chọn tất cả các đường kính và phương pháp kết nối.

Dòng sản phẩm

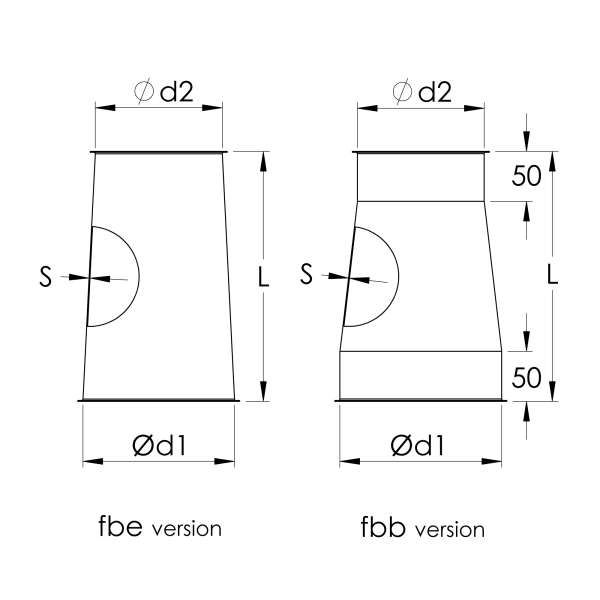

Diameter	Diameter 2	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
80	50	150	1	AAEA000001	fb	gl
80	60	150	1	AAEA000002	fb	gl
80	63	150	1.5	AAEA000003	fb	gl
80	76	150	1.5	AAEA000004	fb	gl
100	50	150	1.5	AAEA000005	fb	gl
100	63	150	1.5	AAEA000006	fb	gl
100	76	150	1.5	AAEA000007	fb	gl
120	80	250	0.88	AAEA000009	fbb	fbb
125	80	250	0.88	AAEA000249	fbb	fbb
140	80	250	0.88	AAEA000011	fbb	fbb
140	100	250	0.88	AAEA000012	fbb	fbb
150	80	250	0.88	AAEA000014	fbb	fbb
150	100	250	0.88	AAEA000015	fbb	fbb
150	120	250	0.88	AAEA000016	fbb	fbb
160	80	350	0.88	AAEA000018	fbb	fbb
160	100	250	0.88	AAEA000019	fbb	fbb
160	120	250	0.88	AAEA000020	fbb	fbb
160	125	250	0.88	AAEA000253	fbb	fbb
180	80	350	0.88	AAEA000023	fbb	fbb
180	100	350	0.88	AAEA000024	fbb	fbb
180	120	250	0.88	AAEA000025	fbb	fbb
180	140	250	0.88	AAEA000026	fbb	fbb
180	150	250	0.88	AAEA000027	fbb	fbb
180	125	250	0.88	AAEA000254	fbb	fbb
200	80	350	0.88	AAEA000029	fbb	fbb
200	100	350	0.88	AAEA000030	fbb	fbb
200	120	350	0.88	AAEA000031	fbb	fbb
200	140	250	0.88	AAEA000032	fbb	fbb
200	150	250	0.88	AAEA000033	fbb	fbb
200	160	250	0.88	AAEA000034	fbb	fbb
200	125	350	0.88	AAEA000255	fbb	fbb
225	80	400	0.88	AAEA000036	fbb	fbb
225	100	400	0.88	AAEA000037	fbb	fbb
225	120	350	0.88	AAEA000038	fbb	fbb
225	140	350	0.88	AAEA000039	fbb	fbb
225	150	350	0.88	AAEA000040	fbb	fbb
225	160	250	0.88	AAEA000041	fbb	fbb
225	180	250	0.88	AAEA000042	fbb	fbb
225	125	350	0.88	AAEA000256	fbb	fbb
250	80	450	0.88	AAEA000044	fbb	fbb
250	100	450	0.88	AAEA000045	fbb	fbb
250	120	400	0.88	AAEA000046	fbb	fbb
250	140	350	0.88	AAEA000047	fbb	fbb
250	150	350	0.88	AAEA000048	fbb	fbb
250	160	350	0.88	AAEA000049	fbb	fbb
250	180	250	0.88	AAEA000050	fbb	fbb
250	200	250	0.88	AAEA000051	fbb	fbb
250	125	400	0.88	AAEA000257	fbb	fbb
275	80	500	0.88	AAEA000053	fbb	fbb
275	100	500	0.88	AAEA000054	fbb	fbb
275	120	450	0.88	AAEA000055	fbb	fbb
275	140	400	0.88	AAEA000056	fbb	fbb
275	150	400	0.88	AAEA000057	fbb	fbb
275	160	350	0.88	AAEA000058	fbb	fbb
275	180	350	0.88	AAEA000059	fbb	fbb
275	200	350	0.88	AAEA000060	fbb	fbb
275	225	250	0.88	AAEA000061	fbb	fbb
275	125	450	0.88	AAEA000258	fbb	fbb
280	250	250	0.88	AAEA000241	fbb	fbb
280	100	500	0.88	AAEA000259	fbb	fbb
280	120	450	0.88	AAEA000260	fbb	fbb
280	125	450	0.88	AAEA000261	fbb	fbb
280	140	400	0.88	AAEA000262	fbb	fbb
280	150	400	0.88	AAEA000263	fbb	fbb
280	160	350	0.88	AAEA000264	fbb	fbb
280	180	350	0.88	AAEA000265	fbb	fbb
280	200	350	0.88	AAEA000266	fbb	fbb
280	225	250	0.88	AAEA000267	fbb	fbb
300	80	550	0.88	AAEA000063	fbb	fbb
300	100	550	0.88	AAEA000064	fbb	fbb
300	120	500	0.88	AAEA000065	fbb	fbb
300	140	450	0.88	AAEA000066	fbb	fbb
300	150	450	0.88	AAEA000067	fbb	fbb
300	160	400	0.88	AAEA000068	fbb	fbb
300	180	350	0.88	AAEA000069	fbb	fbb
300	200	350	0.88	AAEA000070	fbb	fbb
300	225	350	0.88	AAEA000071	fbb	fbb
300	250	250	0.88	AAEA000072	fbb	fbb
300	125	500	0.88	AAEA000269	fbb	fbb
315	80	600	0.88	AAEA000074	fbb	fbb
315	100	550	0.88	AAEA000075	fbb	fbb
315	120	500	0.88	AAEA000076	fbb	fbb
315	140	500	0.88	AAEA000077	fbb	fbb
315	150	450	0.88	AAEA000078	fbb	fbb
315	160	450	0.88	AAEA000079	fbb	fbb
315	180	400	0.88	AAEA000080	fbb	fbb
315	200	350	0.88	AAEA000081	fbb	fbb
315	225	350	0.88	AAEA000082	fbb	fbb
315	250	250	0.88	AAEA000083	fbb	fbb
315	275	250	0.88	AAEA000084	fbb	fbb
315	125	500	0.88	AAEA000271	fbb	fbb
315	280	250	0.88	AAEA000272	fbb	fbb
350	80	650	0.88	AAEA000086	fbb	fbb
350	100	650	0.88	AAEA000087	fbb	fbb
350	120	600	0.88	AAEA000088	fbb	fbb
350	140	550	0.88	AAEA000089	fbb	fbb
350	150	550	0.88	AAEA000090	fbb	fbb
350	160	500	0.88	AAEA000091	fbb	fbb
350	180	450	0.88	AAEA000092	fbb	fbb
350	200	450	0.88	AAEA000093	fbb	fbb
350	225	400	0.88	AAEA000094	fbb	fbb
350	250	350	0.88	AAEA000095	fbb	fbb
350	275	350	0.88	AAEA000096	fbb	fbb
350	300	250	0.88	AAEA000097	fbb	fbb
350	315	250	0.88	AAEA000098	fbb	fbb
350	125	600	0.88	AAEA000273	fbb	fbb
350	280	250	0.88	AAEA000274	fbb	fbb
400	80	750	0.88	AAEA000099	fbb	fbb
400	100	750	0.88	AAEA000100	fbb	fbb
400	120	700	0.88	AAEA000101	fbb	fbb
400	140	650	0.88	AAEA000102	fbb	fbb
400	150	650	0.88	AAEA000103	fbb	fbb
400	160	600	0.88	AAEA000104	fbb	fbb
400	180	550	0.88	AAEA000105	fbb	fbb
400	200	550	0.88	AAEA000106	fbb	fbb
400	225	500	0.88	AAEA000107	fbb	fbb
400	250	450	0.88	AAEA000108	fbb	fbb
400	275	400	0.88	AAEA000109	fbb	fbb
400	300	350	0.88	AAEA000110	fbb	fbb
400	315	350	0.88	AAEA000111	fbb	fbb
400	350	250	0.88	AAEA000112	fbb	fbb
400	125	700	0.88	AAEA000275	fbb	fbb
400	280	350	0.88	AAEA000276	fbb	fbb
450	80	850	0.88	AAEA000113	fbb	fbb
450	100	850	0.88	AAEA000114	fbb	fbb
450	120	800	0.88	AAEA000115	fbb	fbb
450	140	750	0.88	AAEA000116	fbb	fbb
450	150	750	0.88	AAEA000117	fbb	fbb
450	160	700	0.88	AAEA000118	fbb	fbb
450	180	650	0.88	AAEA000119	fbb	fbb
450	200	650	0.88	AAEA000120	fbb	fbb
450	225	600	0.88	AAEA000121	fbb	fbb
450	250	550	0.88	AAEA000122	fbb	fbb
450	275	500	0.88	AAEA000123	fbb	fbb
450	300	450	0.88	AAEA000124	fbb	fbb
450	315	400	0.88	AAEA000125	fbb	fbb
450	350	350	0.88	AAEA000126	fbb	fbb
450	400	250	0.88	AAEA000127	fbb	fbb
450	125	800	0.88	AAEA000277	fbb	fbb
450	280	450	0.88	AAEA000278	fbb	fbb
500	100	950	0.88	AAEA000128	fbb	fbb
500	120	900	0.88	AAEA000129	fbb	fbb
500	140	850	0.88	AAEA000130	fbb	fbb
500	150	850	0.88	AAEA000131	fbb	fbb
500	160	800	0.88	AAEA000132	fbb	fbb
500	180	750	0.88	AAEA000133	fbb	fbb
500	200	750	0.88	AAEA000134	fbb	fbb
500	225	700	0.88	AAEA000135	fbb	fbb
500	250	650	0.88	AAEA000136	fbb	fbb
500	275	600	0.88	AAEA000137	fbb	fbb
500	300	550	0.88	AAEA000138	fbb	fbb
500	315	500	0.88	AAEA000139	fbb	fbb
500	350	450	0.88	AAEA000140	fbb	fbb
500	400	350	0.88	AAEA000141	fbb	fbb
500	450	250	0.88	AAEA000142	fbb	fbb
500	125	900	0.88	AAEA000279	fbb	fbb
500	280	550	0.88	AAEA000280	fbb	fbb
550	140	950	0.88	AAEA000143	fbb	fbb
550	150	950	0.88	AAEA000144	fbb	fbb
550	160	900	0.88	AAEA000145	fbb	fbb
550	180	850	0.88	AAEA000146	fbb	fbb
550	200	850	0.88	AAEA000147	fbb	fbb
550	225	800	0.88	AAEA000148	fbb	fbb
550	250	750	0.88	AAEA000149	fbb	fbb
550	275	700	0.88	AAEA000150	fbb	fbb
550	300	650	0.88	AAEA000151	fbb	fbb
550	315	600	0.88	AAEA000152	fbb	fbb
550	350	550	0.88	AAEA000153	fbb	fbb
550	400	450	0.88	AAEA000154	fbb	fbb
550	450	350	0.88	AAEA000155	fbb	fbb
550	500	250	0.88	AAEA000156	fbb	fbb
600	150	1,050	0.88	AAEA000157	fbb	fbb
600	160	1,000	0.88	AAEA000158	fbb	fbb
600	180	950	0.88	AAEA000159	fbb	fbb
600	200	950	0.88	AAEA000160	fbb	fbb
600	225	900	0.88	AAEA000161	fbb	fbb
600	250	850	0.88	AAEA000162	fbb	fbb
600	275	800	0.88	AAEA000163	fbb	fbb
600	300	750	0.88	AAEA000164	fbb	fbb
600	315	700	0.88	AAEA000165	fbb	fbb
600	350	650	0.88	AAEA000166	fbb	fbb
600	400	550	0.88	AAEA000167	fbb	fbb
600	450	450	0.88	AAEA000168	fbb	fbb
600	500	350	0.88	AAEA000169	fbb	fbb
600	550	250	0.88	AAEA000170	fbb	fbb
630	250	900	0.88	AAEA000171	fbb	fbb
630	275	850	0.88	AAEA000172	fbb	fbb
630	300	800	0.88	AAEA000173	fbb	fbb
630	315	750	0.88	AAEA000174	fbb	fbb
630	350	700	0.88	AAEA000175	fbb	fbb
630	400	600	0.88	AAEA000176	fbb	fbb
630	450	500	0.88	AAEA000177	fbb	fbb
630	500	400	0.88	AAEA000178	fbb	fbb
630	550	350	0.88	AAEA000179	fbb	fbb
630	600	250	0.88	AAEA000180	fbb	fbb
650	300	850	0.88	AAEA000181	fbb	fbb
650	315	800	0.88	AAEA000182	fbb	fbb
650	350	750	0.88	AAEA000183	fbb	fbb
650	400	650	0.88	AAEA000184	fbb	fbb
650	450	550	0.88	AAEA000185	fbb	fbb
650	500	450	0.88	AAEA000186	fbb	fbb
650	550	350	0.88	AAEA000187	fbb	fbb
650	600	250	0.88	AAEA000188	fbb	fbb
700	650	250	0.88	AAEA000242	fbb	fbb
750	700	250	0.88	AAEA000243	fbb	fbb
800	750	250	0.88	AAEA000244	fbb	fbb
850	800	250	0.88	AAEA000245	fbb	fbb
900	850	250	0.88	AAEA000246	fbb	fbb
950	900	250	0.88	AAEA000247	fbb	fbb
1,000	950	250	0.88	AAEA000248	fbb	fbb
100	80	250	0.88	AAEA000008	fbe	fbe
120	100	250	0.88	AAEA000010	fbe	fbe
125	100	250	0.88	AAEA000240	fbe	fbe
125	120	250	0.88	AAEA000250	fbe	fbe
140	120	250	0.88	AAEA000013	fbe	fbe
140	125	250	0.88	AAEA000251	fbe	fbe
150	140	250	0.88	AAEA000017	fbe	fbe
150	125	250	0.88	AAEA000252	fbe	fbe
160	140	250	0.88	AAEA000021	fbe	fbe
160	150	250	0.88	AAEA000022	fbe	fbe
180	160	250	0.88	AAEA000028	fbe	fbe
200	180	250	0.88	AAEA000035	fbe	fbe
225	200	250	0.88	AAEA000043	fbe	fbe
250	225	250	0.88	AAEA000052	fbe	fbe
275	250	250	0.88	AAEA000062	fbe	fbe
280	275	250	0.88	AAEA000268	fbe	fbe
300	275	250	0.88	AAEA000073	fbe	fbe
300	280	250	0.88	AAEA000270	fbe	fbe
315	300	250	0.88	AAEA000085	fbe	fbe
650	630	250	0.88	AAEA000189	fbe	fbe
700	400	750	0.88	AAEA000190	L.fl	fbb
700	450	650	0.88	AAEA000191	L.fl	fbb
700	500	550	0.88	AAEA000192	L.fl	fbb
700	550	450	0.88	AAEA000193	L.fl	fbb
700	600	350	0.88	AAEA000194	L.fl	fbb
700	630	250	0.88	AAEA000195	L.fl	fbb
700	650	250	0.88	AAEA000196	L.fl	fbb
750	400	850	0.88	AAEA000197	L.fl	fbb
750	450	750	0.88	AAEA000198	L.fl	fbb
750	500	650	0.88	AAEA000199	L.fl	fbb
750	550	550	0.88	AAEA000200	L.fl	fbb
750	600	450	0.88	AAEA000201	L.fl	fbb
750	630	350	0.88	AAEA000202	L.fl	fbb
750	650	350	0.88	AAEA000203	L.fl	fbb
750	700	250	0.88	AAEA000204	L.fl	L.fl
800	400	950	0.88	AAEA000205	L.fl	fbb
800	450	850	0.88	AAEA000206	L.fl	fbb
800	500	750	0.88	AAEA000207	L.fl	fbb
800	550	650	0.88	AAEA000208	L.fl	fbb
800	600	550	0.88	AAEA000209	L.fl	fbb
800	630	450	0.88	AAEA000210	L.fl	fbb
800	650	450	0.88	AAEA000211	L.fl	fbb
800	700	350	0.88	AAEA000212	L.fl	L.fl
800	750	250	0.88	AAEA000213	L.fl	L.fl
850	600	650	0.88	AAEA000214	L.fl	fbb
850	630	550	0.88	AAEA000215	L.fl	fbb
850	650	550	0.88	AAEA000216	L.fl	fbb
850	700	450	0.88	AAEA000217	L.fl	L.fl
850	750	350	0.88	AAEA000218	L.fl	L.fl
850	800	250	0.88	AAEA000219	L.fl	L.fl
900	600	750	0.88	AAEA000220	L.fl	fbb
900	630	650	0.88	AAEA000221	L.fl	fbb
900	650	650	0.88	AAEA000222	L.fl	fbb
900	700	550	0.88	AAEA000223	L.fl	L.fl
900	750	450	0.88	AAEA000224	L.fl	L.fl
900	800	350	0.88	AAEA000225	L.fl	L.fl
900	850	250	0.88	AAEA000226	L.fl	L.fl
950	650	750	0.88	AAEA000227	L.fl	fbb
950	700	650	0.88	AAEA000228	L.fl	L.fl
950	750	550	0.88	AAEA000229	L.fl	L.fl
950	800	450	0.88	AAEA000230	L.fl	L.fl
950	850	350	0.88	AAEA000231	L.fl	L.fl
950	900	250	0.88	AAEA000232	L.fl	L.fl
1,000	650	850	0.88	AAEA000233	L.fl	fbb
1,000	700	750	0.88	AAEA000234	L.fl	L.fl
1,000	750	650	0.88	AAEA000235	L.fl	L.fl
1,000	800	550	0.88	AAEA000236	L.fl	L.fl
1,000	850	450	0.88	AAEA000237	L.fl	L.fl
1,000	900	350	0.88	AAEA000238	L.fl	L.fl
1,000	950	250	0.88	AAEA000239	L.fl	L.fl

Diameter	Diameter 2	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
120	80	250	0.80	ABEA000002	fbb	fbb
125	80	250	0.80	ABEA000004	fbb	fbb
140	80	250	0.80	ABEA000007	fbb	fbb
140	100	250	0.80	ABEA000008	fbb	fbb
150	80	250	0.80	ABEA000011	fbb	fbb
150	100	250	0.80	ABEA000012	fbb	fbb
150	120	250	0.80	ABEA000013	fbb	fbb
160	80	350	0.80	ABEA000016	fbb	fbb
160	100	250	0.80	ABEA000017	fbb	fbb
160	120	250	0.80	ABEA000018	fbb	fbb
160	125	250	0.80	ABEA000019	fbb	fbb
180	80	350	0.80	ABEA000022	fbb	fbb
180	100	350	0.80	ABEA000023	fbb	fbb
180	120	250	0.80	ABEA000024	fbb	fbb
180	125	250	0.80	ABEA000025	fbb	fbb
180	140	250	0.80	ABEA000026	fbb	fbb
180	150	250	0.80	ABEA000027	fbb	fbb
200	80	350	0.80	ABEA000029	fbb	fbb
200	100	350	0.80	ABEA000030	fbb	fbb
200	120	350	0.80	ABEA000031	fbb	fbb
200	125	350	0.80	ABEA000032	fbb	fbb
200	140	250	0.80	ABEA000033	fbb	fbb
200	150	250	0.80	ABEA000034	fbb	fbb
200	160	250	0.80	ABEA000035	fbb	fbb
225	80	400	0.80	ABEA000037	fbb	fbb
225	100	400	0.80	ABEA000038	fbb	fbb
225	120	350	0.80	ABEA000039	fbb	fbb
225	125	350	0.80	ABEA000040	fbb	fbb
225	140	350	0.80	ABEA000041	fbb	fbb
225	150	350	0.80	ABEA000042	fbb	fbb
225	160	250	0.80	ABEA000043	fbb	fbb
225	180	250	0.80	ABEA000044	fbb	fbb
250	80	450	0.80	ABEA000046	fbb	fbb
250	100	450	0.80	ABEA000047	fbb	fbb
250	120	400	0.80	ABEA000048	fbb	fbb
250	125	400	0.80	ABEA000049	fbb	fbb
250	140	350	0.80	ABEA000050	fbb	fbb
250	150	350	0.80	ABEA000051	fbb	fbb
250	160	350	0.80	ABEA000052	fbb	fbb
250	180	250	0.80	ABEA000053	fbb	fbb
250	200	250	0.80	ABEA000054	fbb	fbb
275	80	500	0.80	ABEA000056	fbb	fbb
275	100	500	0.80	ABEA000057	fbb	fbb
275	120	450	0.80	ABEA000058	fbb	fbb
275	125	450	0.80	ABEA000059	fbb	fbb
275	140	400	0.80	ABEA000060	fbb	fbb
275	150	400	0.80	ABEA000061	fbb	fbb
275	160	350	0.80	ABEA000062	fbb	fbb
275	180	350	0.80	ABEA000063	fbb	fbb
275	200	350	0.80	ABEA000064	fbb	fbb
275	225	250	0.80	ABEA000065	fbb	fbb
280	80	550	0.80	ABEA000067	fbb	fbb
280	100	500	0.80	ABEA000068	fbb	fbb
280	120	450	0.80	ABEA000069	fbb	fbb
280	125	450	0.80	ABEA000070	fbb	fbb
280	140	400	0.80	ABEA000071	fbb	fbb
280	150	400	0.80	ABEA000072	fbb	fbb
280	160	350	0.80	ABEA000073	fbb	fbb
280	180	350	0.80	ABEA000074	fbb	fbb
280	200	350	0.80	ABEA000075	fbb	fbb
280	225	250	0.80	ABEA000076	fbb	fbb
280	250	250	0.80	ABEA000077	fbb	fbb
300	80	550	0.80	ABEA000079	fbb	fbb
300	100	550	0.80	ABEA000080	fbb	fbb
300	120	500	0.80	ABEA000081	fbb	fbb
300	125	500	0.80	ABEA000082	fbb	fbb
300	140	450	0.80	ABEA000083	fbb	fbb
300	150	450	0.80	ABEA000084	fbb	fbb
300	160	400	0.80	ABEA000085	fbb	fbb
300	180	350	0.80	ABEA000086	fbb	fbb
300	200	350	0.80	ABEA000087	fbb	fbb
300	225	350	0.80	ABEA000088	fbb	fbb
300	250	250	0.80	ABEA000089	fbb	fbb
315	80	600	0.80	ABEA000092	fbb	fbb
315	100	550	0.80	ABEA000093	fbb	fbb
315	120	500	0.80	ABEA000094	fbb	fbb
315	125	500	0.80	ABEA000095	fbb	fbb
315	140	500	0.80	ABEA000096	fbb	fbb
315	150	450	0.80	ABEA000097	fbb	fbb
315	160	450	0.80	ABEA000098	fbb	fbb
315	180	400	0.80	ABEA000099	fbb	fbb
315	200	350	0.80	ABEA000100	fbb	fbb
315	225	350	0.80	ABEA000101	fbb	fbb
315	250	250	0.80	ABEA000102	fbb	fbb
315	275	250	0.80	ABEA000103	fbb	fbb
315	280	250	0.80	ABEA000104	fbb	fbb
350	80	650	0.80	ABEA000106	fbb	fbb
350	100	650	0.80	ABEA000107	fbb	fbb
350	120	600	0.80	ABEA000108	fbb	fbb
350	125	600	0.80	ABEA000109	fbb	fbb
350	140	550	0.80	ABEA000110	fbb	fbb
350	150	550	0.80	ABEA000111	fbb	fbb
350	160	500	0.80	ABEA000112	fbb	fbb
350	180	450	0.80	ABEA000113	fbb	fbb
350	200	450	0.80	ABEA000114	fbb	fbb
350	225	400	0.80	ABEA000115	fbb	fbb
350	250	350	0.80	ABEA000116	fbb	fbb
350	275	350	0.80	ABEA000117	fbb	fbb
350	280	250	0.80	ABEA000118	fbb	fbb
350	300	250	0.80	ABEA000119	fbb	fbb
350	315	250	0.80	ABEA000120	fbb	fbb
400	80	750	0.80	ABEA000121	fbb	fbb
400	100	750	0.80	ABEA000122	fbb	fbb
400	120	700	0.80	ABEA000123	fbb	fbb
400	125	700	0.80	ABEA000124	fbb	fbb
400	140	650	0.80	ABEA000125	fbb	fbb
400	150	650	0.80	ABEA000126	fbb	fbb
400	160	600	0.80	ABEA000127	fbb	fbb
400	180	550	0.80	ABEA000128	fbb	fbb
400	200	550	0.80	ABEA000129	fbb	fbb
400	225	500	0.80	ABEA000130	fbb	fbb
400	250	450	0.80	ABEA000131	fbb	fbb
400	275	400	0.80	ABEA000132	fbb	fbb
400	280	350	0.80	ABEA000133	fbb	fbb
400	300	350	0.80	ABEA000134	fbb	fbb
400	315	350	0.80	ABEA000135	fbb	fbb
400	350	250	0.80	ABEA000136	fbb	fbb
450	80	850	0.80	ABEA000137	fbb	fbb
450	100	850	0.80	ABEA000138	fbb	fbb
450	120	800	0.80	ABEA000139	fbb	fbb
450	125	800	0.80	ABEA000140	fbb	fbb
450	140	750	0.80	ABEA000141	fbb	fbb
450	150	750	0.80	ABEA000142	fbb	fbb
450	160	700	0.80	ABEA000143	fbb	fbb
450	180	650	0.80	ABEA000144	fbb	fbb
450	200	650	0.80	ABEA000145	fbb	fbb
450	225	600	0.80	ABEA000146	fbb	fbb
450	250	550	0.80	ABEA000147	fbb	fbb
450	275	500	0.80	ABEA000148	fbb	fbb
450	280	450	0.80	ABEA000149	fbb	fbb
450	300	450	0.80	ABEA000150	fbb	fbb
450	315	400	0.80	ABEA000151	fbb	fbb
450	350	350	0.80	ABEA000152	fbb	fbb
450	400	250	0.80	ABEA000153	fbb	fbb
500	100	950	0.80	ABEA000154	fbb	fbb
500	120	900	0.80	ABEA000155	fbb	fbb
500	125	900	0.80	ABEA000156	fbb	fbb
500	140	850	0.80	ABEA000157	fbb	fbb
500	150	850	0.80	ABEA000158	fbb	fbb
500	160	800	0.80	ABEA000159	fbb	fbb
500	180	750	0.80	ABEA000160	fbb	fbb
500	200	750	0.80	ABEA000161	fbb	fbb
500	225	700	0.80	ABEA000162	fbb	fbb
500	250	650	0.80	ABEA000163	fbb	fbb
500	275	600	0.80	ABEA000164	fbb	fbb
500	280	550	0.80	ABEA000165	fbb	fbb
500	300	550	0.80	ABEA000166	fbb	fbb
500	315	500	0.80	ABEA000167	fbb	fbb
500	350	450	0.80	ABEA000168	fbb	fbb
500	400	350	0.80	ABEA000169	fbb	fbb
500	450	250	0.80	ABEA000170	fbb	fbb
100	80	250	0.80	ABEA000001	fbe	fbe
120	100	250	0.80	ABEA000003	fbe	fbe
125	100	250	0.80	ABEA000005	fbe	fbe
125	120	250	0.80	ABEA000006	fbe	fbe
140	120	250	0.80	ABEA000009	fbe	fbe
140	125	250	0.80	ABEA000010	fbe	fbe
150	125	250	0.80	ABEA000014	fbe	fbe
150	140	250	0.80	ABEA000015	fbe	fbe
160	140	250	0.80	ABEA000020	fbe	fbe
160	150	250	0.80	ABEA000021	fbe	fbe
180	160	250	0.80	ABEA000028	fbe	fbe
200	180	250	0.80	ABEA000036	fbe	fbe
225	200	250	0.80	ABEA000045	fbe	fbe
250	225	250	0.80	ABEA000055	fbe	fbe
275	250	250	0.80	ABEA000066	fbe	fbe
280	275	250	0.80	ABEA000078	fbe	fbe
300	275	250	0.80	ABEA000090	fbe	fbe
300	280	250	0.80	ABEA000091	fbe	fbe
315	300	250	0.80	ABEA000105	fbe	fbe

Côn thu

Dòng sản phẩm

Downloads

Giới thiệu

Các sản phẩm liên quan

Cuộn dây và đầu nối

Van điện khí nén

Xi lanh khí nén tuyến tính

Bộ truyền động khí nén xoay

Bộ truyền động điện Belimo

Bộ truyền động điện xoay
