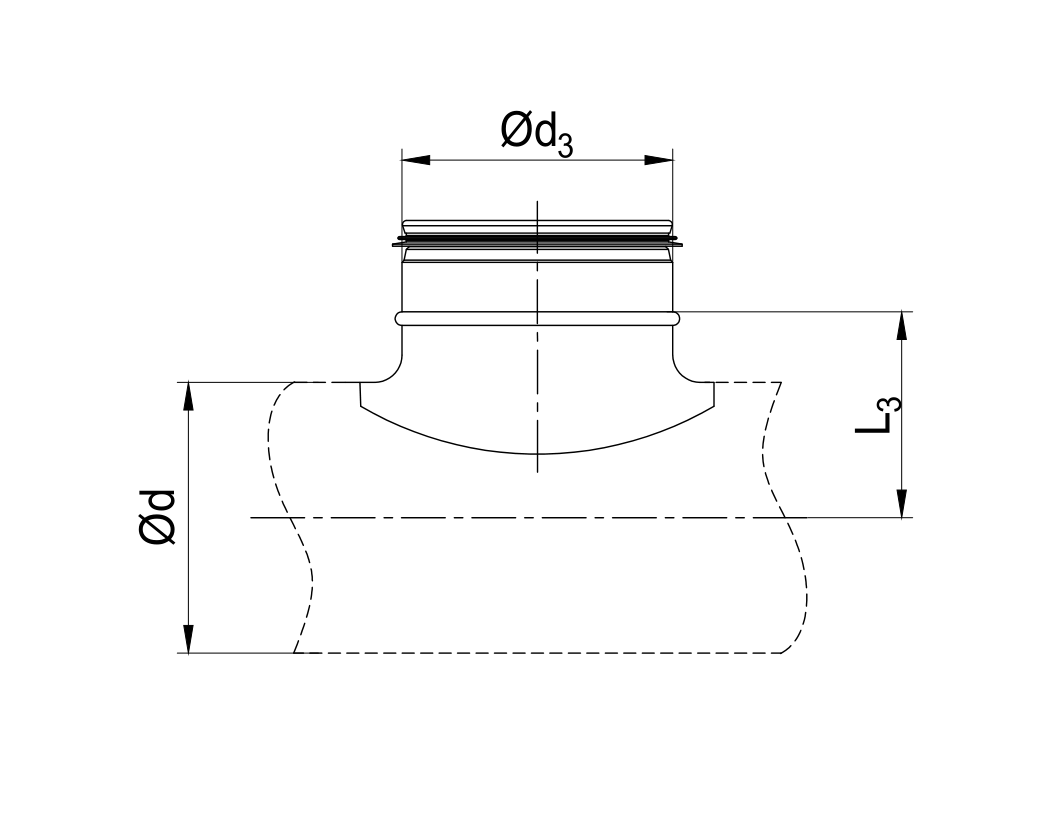

Yên ngựa dập

Yên ngựa dập. Kích thước tiêu chuẩn lên đến Ø400.

Dòng sản phẩm

Diameter	Diameter 3	Thickness	W	Item ID
d	d3	t	W
80	80	0.5	0.13	EACD200001
100	80	0.5	0.14	EACD200002
100	100	0.5	0.18	EACD200003
125	80	0.5	0.13	EACD200004
125	100	0.5	0.18	EACD200005
125	125	0.5	0.25	EACD200006
160	80	0.6	0.1	EACD200007
160	100	0.6	0.18	EACD200008
160	125	0.6	0.18	EACD200009
160	160	0.6	0.26	EACD200010
180	80	0.6	0.09	EACD200011
180	100	0.6	0.19	EACD200012
180	125	0.6	0.25	EACD200013
180	160	0.6	0.27	EACD200014
180	180	0.6	0.48	EACD200015
200	80	0.6	0.09	EACD200016
200	100	0.6	0.19	EACD200017
200	125	0.6	0.25	EACD200018
200	160	0.6	0.27	EACD200019
200	180	0.6	0.45	EACD200020
200	200	0.6	0.39	EACD200021
224	80	0.6	0.12	EACD200022
224	100	0.6	0.18	EACD200023
224	125	0.6	0.23	EACD200024
224	160	0.6	0.24	EACD200025
224	180	0.6	0.41	EACD200026
224	224	0.6	0.64	EACD200027
250	80	0.6	0.12	EACD200028
250	100	0.6	0.18	EACD200029
250	125	0.6	0.23	EACD200030
250	160	0.6	0.24	EACD200031
250	180	0.6	0.41	EACD200032
250	200	0.6	0.34	EACD200033
250	224	0.6	0.63	EACD200034
250	250	0.6	0.8	EACD200035
280	80	0.6	0.2	EACD200036
280	100	0.6	0.33	EACD200037
280	125	0.6	0.45	EACD200038
280	160	0.6	0.52	EACD200039
280	180	0.6	0.67	EACD200040
280	200	0.6	0.9	EACD200041
280	224	0.6	1	EACD200042
280	250	0.6	1.1	EACD200043
280	280	0.6	1.2	EACD200044
300	80	0.6	0.2	EACD200045
300	100	0.6	0.33	EACD200046
300	125	0.6	0.45	EACD200047
300	160	0.6	0.52	EACD200048
300	180	0.6	0.67	EACD200049
300	200	0.6	0.9	EACD200050
300	224	0.6	1	EACD200051
300	250	0.6	1.1	EACD200052
300	280	0.6	1.2	EACD200053
300	300	0.6	1.4	EACD200054
315	80	0.6	0.3	EACD200055
315	100	0.6	0.41	EACD200056
315	125	0.6	0.57	EACD200057
315	160	0.6	0.62	EACD200058
315	180	0.6	0.78	EACD200059
315	200	0.6	1	EACD200060
315	224	0.6	1.14	EACD200061
315	250	0.6	1.2	EACD200062
315	280	0.6	1.3	EACD200063
315	300	0.6	1.5	EACD200064
315	315	0.6	1.6	EACD200065
