Air bleed – multi slot

Name: Air bleed - multi slot - Formula Air
SKU: AADG027

The air bleeds are designed to regulate the airflow in an installation by drawing in outside air for use in under-pressure and pressureless systems.

The outer mantle can be turned to open or close the openings and it is held in place by two star knobs.

Product range

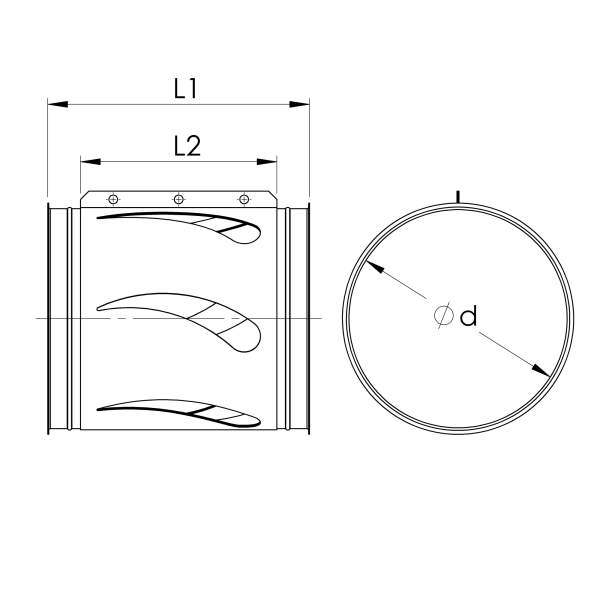

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	240	0.88	AADG000001	fb
100	240	0.88	AADG000002	fb
120	240	0.88	AADG000003	fb
125	240	0.88	AADG000021	fb
140	240	0.88	AADG000004	fb
150	240	0.88	AADG000005	fb
160	240	0.88	AADG000006	fb
180	240	0.88	AADG000007	fb
200	240	0.88	AADG000008	fb
225	240	0.88	AADG000009	fb
250	240	0.88	AADG000010	fb
275	240	0.88	AADG000011	fb
280	240	0.88	AADG000022	fb
300	240	0.88	AADG000012	fb
315	240	0.88	AADG000013	fb
350	240	0.88	AADG000014	fb
400	240	0.88	AADG000015	fb
450	240	0.88	AADG000016	fb
500	240	0.88	AADG000017	fb
550	240	0.88	AADG000018	fb
600	240	0.88	AADG000019	fb
630	240	0.88	AADG000020	fb
