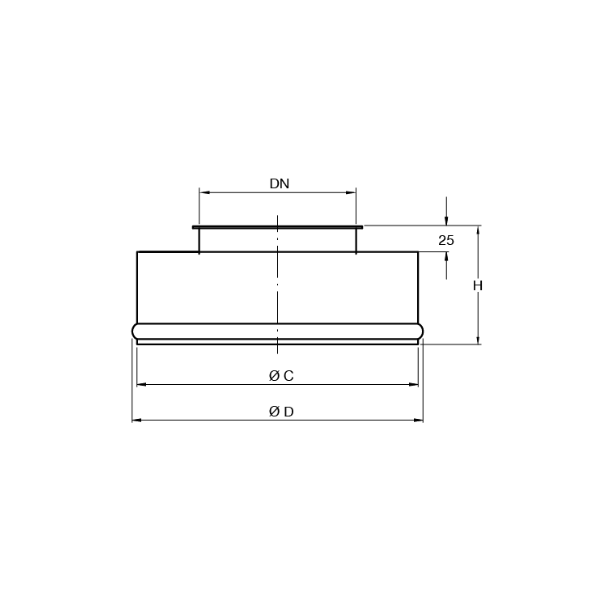

Bagging spout

Pipe piece especially designed to connected under a cyclone, a silo, or a filter to attach a Big-Bag or sack to recuperate falling material.

Product range

Diameter	Diameter 2	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
80	275	115	1.5	BAGF000001	fb	fsl
100	275	115	1.5	BAGF000002	fb	fsl
120	275	115	1.5	BAGF000003	fb	fsl
150	275	115	1.5	BAGF000004	fb	fsl
175	275	115	1.5	BAGF000005	fb	fsl
200	275	115	1.5	BAGF000006	fb	fsl
250	275	115	1.5	BAGF000007	fb	fsl
300	300	115	1.5	BAGF000008	fb	fsl

Diameter	Diameter 2	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
80	275	115	1.50	BDGF000001	fb	fsl
100	275	115	1.50	BDGF000002	fb	fsl
120	275	115	1.50	BDGF000003	fb	fsl
150	275	115	1.50	BDGF000004	fb	fsl
175	275	115	1.50	BDGF000005	fb	fsl
200	275	115	1.50	BDGF000006	fb	fsl
250	275	115	1.50	BDGF000007	fb	fsl
300	300	115	1.50	BDGF000008	fb	fsl

Diameter	Diameter 2	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	Ød, mm	L, mm	s, mm
80	275	115	1.50	BBGF000001	fb	fsl
100	275	115	1.50	BBGF000002	fb	fsl
120	275	115	1.50	BBGF000003	fb	fsl
150	275	115	1.50	BBGF000004	fb	fsl
175	275	115	1.50	BBGF000005	fb	fsl
200	275	115	1.50	BBGF000006	fb	fsl
250	275	115	1.50	BBGF000007	fb	fsl
300	300	115	1.50	BBGF000008	fb	fsl
