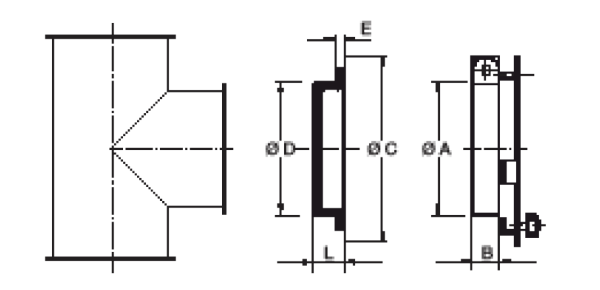

Rubber caps for inspection branches that insure airthightness of the opening. Thery can also be used as an end cap in an installation.
These caps are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such. Black: BZZS000002-BZZS000008, white BZZS000010-BZZS000016.
These can be fitted with a cap lock BBZG to ensure that rubber cap stays in place (especially used in overpressure installations).
| Diameter | Length | Thickness | Item ID |
|---|---|---|---|
| Ød, mm | L, mm | s, mm | |
| 80 | 22 | 6 | BZZS000001 |
| 80 | 22 | 6 | BZZS000009 |
| 100 | 22 | 5 | BZZS000002 |
| 100 | 22 | 5 | BZZS000010 |
| 120 | 24 | 6 | BZZS000003 |
| 120 | 24 | 6 | BZZS000011 |
| 150 | 33 | 7 | BZZS000004 |
| 150 | 33 | 7 | BZZS000012 |
| 175 | 35 | 7 | BZZS000005 |
| 175 | 35 | 7 | BZZS000013 |
| 200 | 40 | 8 | BZZS000006 |
| 200 | 40 | 8 | BZZS000014 |
| 250 | 42 | 10 | BZZS000007 |
| 250 | 42 | 10 | BZZS000015 |
| 300 | 40 | 8 | BZZS000008 |
| 300 | 40 | 8 | BZZS000016 |
