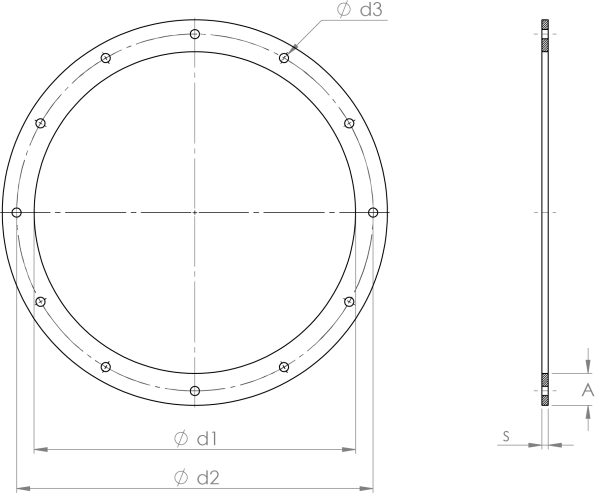

Galvanized flanges for the assembly of different ducting components.
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 3 | GABA000001 |
| 100 | 3 | GABA000002 |
| 120 | 3 | GABA000003 |
| 125 | 3 | GABA000030 |
| 140 | 3 | GABA000004 |
| 150 | 5 | GABA000005 |
| 160 | 5 | GABA000006 |
| 180 | 5 | GABA000007 |
| 200 | 5 | GABA000008 |
| 225 | 5 | GABA000009 |
| 250 | 5 | GABA000010 |
| 275 | 5 | GABA000011 |
| 280 | 5 | GABA000031 |
| 300 | 5 | GABA000012 |
| 315 | 5 | GABA000013 |
| 350 | 6 | GABA000014 |
| 400 | 6 | GABA000015 |
| 450 | 6 | GABA000016 |
| 500 | 6 | GABA000017 |
| 550 | 6 | GABA000018 |
| 600 | 6 | GABA000019 |
| 630 | 6 | GABA000020 |
| 650 | 6 | GABA000021 |
| 700 | 6 | GABA000022 |
| 750 | 6 | GABA000023 |
| 800 | 6 | GABA000024 |
| 850 | 6 | GABA000025 |
| 900 | 6 | GABA000026 |
| 950 | 6 | GABA000027 |
| 1,000 | 6 | GABA000028 |
| 1,250 | 6 | GABA000029 |
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 3.00 | GBBA000001 |
| 100 | 3.00 | GBBA000002 |
| 120 | 3.00 | GBBA000003 |
| 140 | 3.00 | GBBA000004 |
| 150 | 5.00 | GBBA000005 |
| 160 | 5.00 | GBBA000006 |
| 180 | 5.00 | GBBA000007 |
| 200 | 5.00 | GBBA000008 |
| 225 | 5.00 | GBBA000009 |
| 250 | 5.00 | GBBA000010 |
| 275 | 5.00 | GBBA000011 |
| 300 | 5.00 | GBBA000012 |
| 315 | 5.00 | GBBA000013 |
| 350 | 6.00 | GBBA000014 |
| 400 | 6.00 | GBBA000015 |
| 450 | 6.00 | GBBA000016 |
| 500 | 6.00 | GBBA000017 |
| 550 | 6.00 | GBBA000018 |
| 600 | 6.00 | GBBA000019 |
| 630 | 6.00 | GBBA000020 |
| 650 | 6.00 | GBBA000021 |
| 700 | 6.00 | GBBA000022 |
| 750 | 6.00 | GBBA000023 |
| 800 | 6.00 | GBBA000024 |
| 850 | 6.00 | GBBA000025 |
| 900 | 6.00 | GBBA000026 |
| 950 | 6.00 | GBBA000027 |
| 1,000 | 6.00 | GBBA000028 |
