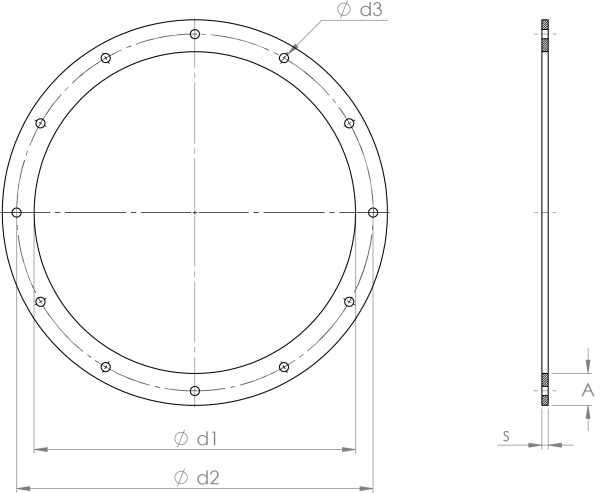

Galvanized flanges according to the DIN 24154 standard for the assembly of different ducting components. Model Riehe 5 (R5).
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 4 | GABF000001 |
| 100 | 4 | GABF000002 |
| 125 | 4 | GABF000003 |
| 140 | 4 | GABF000004 |
| 150 | 4 | GABF000005 |
| 160 | 4 | GABF000006 |
| 180 | 4 | GABF000007 |
| 200 | 4 | GABF000008 |
| 224 | 4 | GABF000009 |
| 250 | 4 | GABF000010 |
| 280 | 5 | GABF000011 |
| 300 | 5 | GABF000012 |
| 315 | 5 | GABF000013 |
| 355 | 5 | GABF000014 |
| 400 | 5 | GABF000015 |
| 450 | 5 | GABF000016 |
| 500 | 5 | GABF000017 |
| 560 | 6 | GABF000018 |
| 600 | 6 | GABF000019 |
| 630 | 6 | GABF000020 |
| 710 | 6 | GABF000021 |
| 800 | 6 | GABF000022 |
| 900 | 6 | GABF000023 |
| 1,000 | 6 | GABF000024 |
| 1,250 | 8 | GABF000025 |
