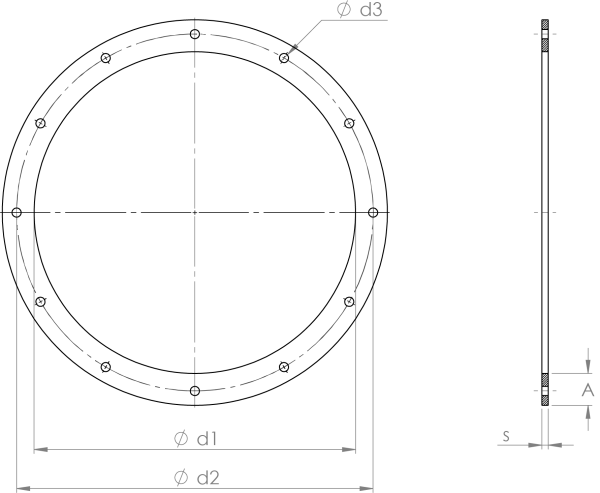

Galvanized flanges according to the DIN 24154 standard for the assembly of different ducting components. Model Riehe I (T1).
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 3 | GABB000001 |
| 100 | 3 | GABB000002 |
| 125 | 3 | GABB000003 |
| 140 | 4 | GABB000004 |
| 150 | 4 | GABB000005 |
| 160 | 4 | GABB000006 |
| 180 | 4 | GABB000007 |
| 200 | 4 | GABB000008 |
| 224 | 4 | GABB000009 |
| 250 | 4 | GABB000010 |
| 280 | 4 | GABB000011 |
| 300 | 4 | GABB000012 |
| 315 | 4 | GABB000013 |
| 355 | 4 | GABB000014 |
| 400 | 4 | GABB000015 |
| 450 | 4 | GABB000016 |
| 500 | 4 | GABB000017 |
| 560 | 4 | GABB000018 |
| 600 | 4 | GABB000019 |
| 630 | 4 | GABB000020 |
| 710 | 4 | GABB000021 |
| 800 | 4 | GABB000022 |
| 900 | 4 | GABB000023 |
| 1,000 | 4 | GABB000024 |
| 1,250 | 5 | GABB000025 |
