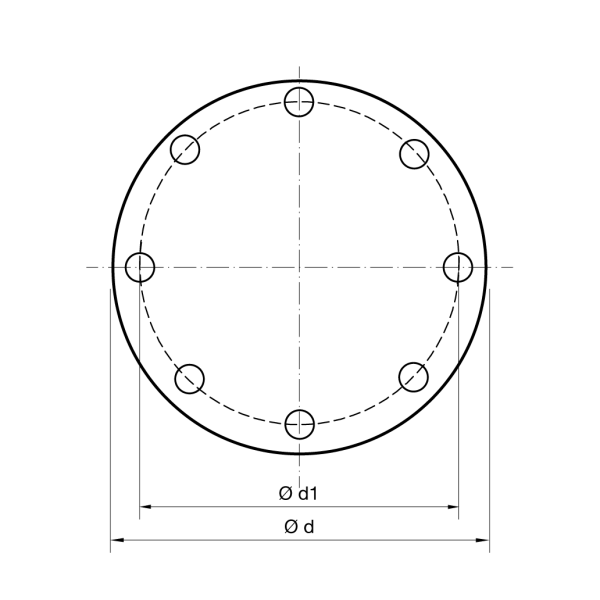

Blanking plates are designed to close off a line, for example at the end of a pipe or a branch that is not used.
To mount on a flanged ducting element.
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 350 | 6 | BAZH000014 |
| 400 | 6 | BAZH000015 |
| 450 | 6 | BAZH000016 |
| 500 | 6 | BAZH000017 |
| 560 | 6 | BAZH000019 |
| 630 | 6 | BAZH000021 |
| Diameter | Thickness | Item ID |
|---|---|---|
| Ød, mm | s, mm | |
| 80 | 3.00 | BBZH000001 |
| 100 | 3.00 | BBZH000002 |
| 120 | 3.00 | BBZH000003 |
| 140 | 3.00 | BBZH000004 |
| 150 | 3.00 | BBZH000005 |
| 160 | 3.00 | BBZH000006 |
| 175 | 3.00 | BBZH000007 |
| 200 | 3.00 | BBZH000008 |
| 224 | 3.00 | BBZH000009 |
| 250 | 3.00 | BBZH000010 |
| 280 | 3.00 | BBZH000011 |
| 300 | 3.00 | BBZH000012 |
| 315 | 3.00 | BBZH000013 |
| 350 | 6.00 | BBZH000022 |
| 400 | 6.00 | BBZH000023 |
| 450 | 6.00 | BBZH000024 |
| 500 | 6.00 | BBZH000025 |
| 560 | 6.00 | BBZH000027 |
| 630 | 6.00 | BBZH000029 |
