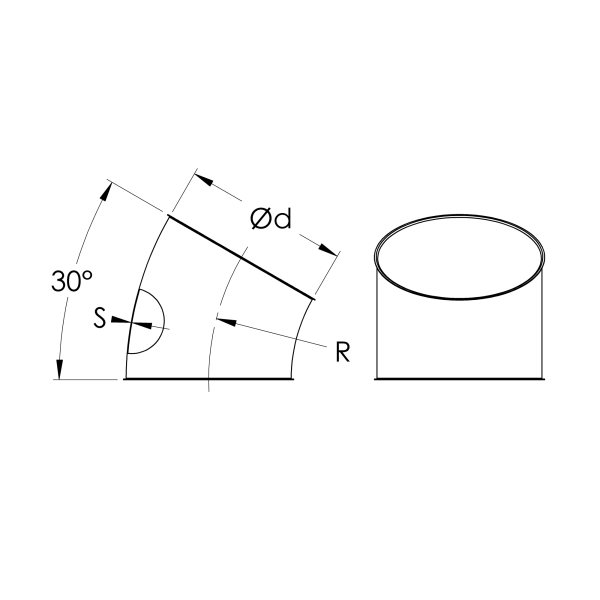

Laser welded pressed bends 30° are made of two pressed halves of which the seams are laser welded together. These airtight bends are used for applications using vapors, or oil mists, but also applications requiring the least possible air leakage in the ducting such as over-pressure installations.
| Diameter | Radius | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | R, mm | s, mm | ||
| 80 | R=1.5D | 1 | BCBA000203 | fb |
| 100 | R=1.5D | 1 | BCBA000204 | fb |
| 120 | R=1.5D | 1 | BCBA000205 | fb |
| 125 | R=1.5D | 1 | BCBA000230 | fb |
| 140 | R=1.5D | 1 | BCBA000206 | fb |
| 150 | R=1.5D | 1 | BCBA000207 | fb |
| 160 | R=1.5D | 1 | BCBA000208 | fb |
| 180 | R=1.5D | 1 | BCBA000209 | fb |
| 200 | R=1.5D | 1 | BCBA000210 | fb |
| 225 | R=1.5D | 1 | BCBA000221 | fb |
| 250 | R=1.5D | 1 | BCBA000211 | fb |
| 275 | R=1.5D | 1 | BCBA000222 | fb |
