HG Branch 45°

Name: HG Branch 45° - Formula Air
SKU: BACA094

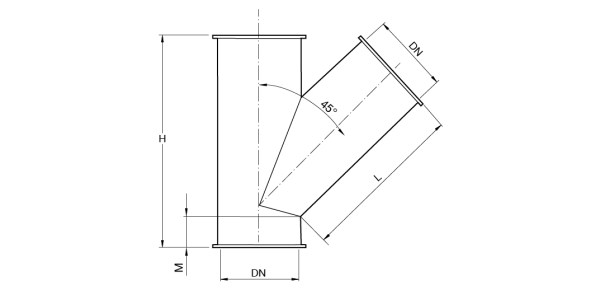

Full welded cylindrical branches at 45º with three same diameters.

These branches are suitable for the transport of waste materials such as dust and chips but also for the transport of grains and such.

Product range

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	160	1.5	BACA000001	fb
100	100	100	215	1.5	BACA000002	fb
100	100	100	215	2	BACA000022	fb
120	120	120	240	1.5	BACA000003	fb
120	120	120	240	2	BACA000023	fb
140	140	140	280	1.5	BACA000004	fb
140	140	140	280	2	BACA000024	fb
150	150	150	290	1.5	BACA000005	fb
150	150	150	290	2	BACA000025	fb
150	150	150	290	3	BACA000042	fb
160	160	160	320	1.5	BACA000006	fb
160	160	160	320	2	BACA000026	fb
175	175	175	340	1.5	BACA000007	fb
175	175	175	340	2	BACA000027	fb
175	175	175	340	3	BACA000043	fb
200	200	200	390	1.5	BACA000008	fb
200	200	200	390	2	BACA000028	fb
200	200	200	390	3	BACA000044	fb
224	224	224	420	1.5	BACA000009	fb
224	224	224	420	2	BACA000029	fb
224	224	224	420	3	BACA000045	fb
250	250	250	450	1.5	BACA000010	fb
250	250	250	450	2	BACA000030	fb
250	250	250	450	3	BACA000046	fb
280	280	280	500	1.5	BACA000011	fb
280	280	280	500	2	BACA000031	fb
280	280	280	500	3	BACA000047	fb
300	300	300	520	1.5	BACA000012	fb
300	300	300	520	2	BACA000032	fb
300	300	300	520	3	BACA000048	fb
315	315	315	560	1.5	BACA000013	fb
315	315	315	560	2	BACA000033	fb
315	315	315	560	3	BACA000049	fb
350	350	350	615	1.5	BACA000014	fb
350	350	350	615	2	BACA000034	fb
350	350	350	615	3	BACA000050	fb
400	400	400	685	1.5	BACA000015	fb
400	400	400	685	2	BACA000035	fb
400	400	400	685	3	BACA000051	fb
450	450	450	800	1.5	BACA000016	fb
450	450	450	800	2	BACA000036	fb
450	450	450	800	3	BACA000052	fb
500	500	500	850	1.5	BACA000017	fb
500	500	500	850	2	BACA000037	fb
500	500	500	850	3	BACA000053	fb
560	560	560	950	2	BACA000039	fb
560	560	560	950	3	BACA000055	fb
630	630	630	1,060	2	BACA000041	fb
630	630	630	1,060	3	BACA000057	fb

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	160	1.50	BDCA000001	fb
100	100	100	215	1.50	BDCA000002	fb
120	120	120	240	1.50	BDCA000003	fb
140	140	140	280	1.50	BDCA000004	fb
150	150	150	290	1.50	BDCA000005	fb
160	160	160	320	1.50	BDCA000006	fb
175	175	175	340	1.50	BDCA000007	fb
200	200	200	390	1.50	BDCA000008	fb
224	224	224	420	1.50	BDCA000009	fb
250	250	250	450	1.50	BDCA000010	fb
280	280	280	500	1.50	BDCA000011	fb
300	300	300	520	1.50	BDCA000012	fb
315	315	315	560	1.50	BDCA000013	fb
350	350	350	615	1.50	BDCA000014	fb
400	400	400	685	1.50	BDCA000015	fb
450	450	450	800	1.50	BDCA000016	fb
500	500	500	850	1.50	BDCA000017	fb

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	160	1.50	BBCA000001	fb
100	100	100	215	1.50	BBCA000002	fb
100	100	100	215	2.00	BBCA000022	fb
120	120	120	240	1.50	BBCA000003	fb
120	120	120	240	2.00	BBCA000023	fb
140	140	140	280	1.50	BBCA000004	fb
140	140	140	280	2.00	BBCA000024	fb
150	150	150	290	1.50	BBCA000005	fb
150	150	150	290	2.00	BBCA000025	fb
160	160	160	320	1.50	BBCA000006	fb
160	160	160	320	2.00	BBCA000026	fb
175	175	175	340	1.50	BBCA000007	fb
175	175	175	340	2.00	BBCA000027	fb
200	200	200	390	1.50	BBCA000008	fb
200	200	200	390	2.00	BBCA000028	fb
224	224	224	420	1.50	BBCA000009	fb
224	224	224	420	2.00	BBCA000029	fb
250	250	250	450	1.50	BBCA000010	fb
250	250	250	450	2.00	BBCA000030	fb
280	280	280	500	1.50	BBCA000011	fb
280	280	280	500	2.00	BBCA000031	fb
300	300	300	520	1.50	BBCA000012	fb
300	300	300	520	2.00	BBCA000032	fb
315	315	315	560	1.50	BBCA000013	fb
315	315	315	560	2.00	BBCA000033	fb
350	350	350	615	1.50	BBCA000014	fb
350	350	350	615	2.00	BBCA000034	fb
400	400	400	685	1.50	BBCA000015	fb
400	400	400	685	2.00	BBCA000035	fb
450	450	450	800	1.50	BBCA000016	fb
450	450	450	800	2.00	BBCA000036	fb
500	500	500	850	1.50	BBCA000017	fb
500	500	500	850	2.00	BBCA000037	fb
560	560	560	950	2.00	BBCA000039	fb
630	630	630	1,060	2.00	BBCA000041	fb
