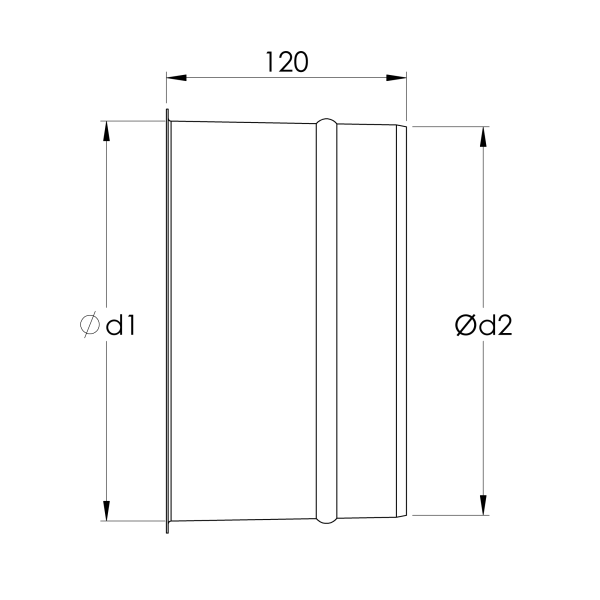

Hose reduction pieces are standard longitudinally welded designed for the assembly of various types of hoses for use in overpressure, under-pressure and pressureless systems.The exterior diameter is slightly smaller than the nominal ducting diameter to fit the flexible hose. A boom in the middle prevents the hose from sliding off.Delivery without the hose clamp.
| Diameter | Diameter 2 | Length | Thickness | Item ID | Edge | Edge 2 |
|---|---|---|---|---|---|---|
| Ød, mm | Ød, mm | L, mm | s, mm | |||
| 80 | 76 | 120 | 0.75 | AAZA000001 | fb | fsl |
| 100 | 96 | 120 | 0.75 | AAZA000002 | fb | fsl |
| 120 | 116 | 120 | 0.88 | AAZA000003 | fb | fsl |
| 125 | 121 | 120 | 0.88 | AAZA000021 | fb | fsl |
| 140 | 136 | 120 | 0.88 | AAZA000004 | fb | fsl |
| 150 | 146 | 120 | 0.88 | AAZA000005 | fb | fsl |
| 160 | 156 | 120 | 0.88 | AAZA000006 | fb | fsl |
| 180 | 176 | 120 | 0.88 | AAZA000007 | fb | fsl |
| 200 | 196 | 120 | 0.88 | AAZA000008 | fb | fsl |
| 225 | 221 | 120 | 0.88 | AAZA000009 | fb | fsl |
| 250 | 246 | 120 | 0.88 | AAZA000010 | fb | fsl |
| 275 | 271 | 120 | 0.88 | AAZA000011 | fb | fsl |
| 280 | 276 | 120 | 0.88 | AAZA000022 | fb | fsl |
| 300 | 296 | 120 | 0.88 | AAZA000012 | fb | fsl |
| 315 | 311 | 120 | 0.88 | AAZA000013 | fb | fsl |
| 350 | 346 | 120 | 0.88 | AAZA000014 | fb | fsl |
| 400 | 396 | 120 | 0.88 | AAZA000015 | fb | fsl |
| 450 | 446 | 120 | 0.88 | AAZA000016 | fb | fsl |
| 500 | 496 | 120 | 0.88 | AAZA000017 | fb | fsl |
| 550 | 546 | 120 | 0.88 | AAZA000018 | fb | fsl |
| 600 | 596 | 120 | 0.88 | AAZA000019 | fb | fsl |
| 630 | 626 | 120 | 0.88 | AAZA000020 | fb | fsl |
| Diameter | Diameter 2 | Length | Thickness | Item ID | Edge | Edge 2 |
|---|---|---|---|---|---|---|
| Ød, mm | Ød, mm | L, mm | s, mm | |||
| 80 | 120 | 0.60 | ABZA000001 | fb | fsl | |
| 100 | 120 | 0.60 | ABZA000002 | fb | fsl | |
| 120 | 120 | 0.80 | ABZA000003 | fb | fsl | |
| 125 | 120 | 0.80 | ABZA000004 | fb | fsl | |
| 140 | 120 | 0.80 | ABZA000005 | fb | fsl | |
| 150 | 120 | 0.80 | ABZA000006 | fb | fsl | |
| 160 | 120 | 0.80 | ABZA000007 | fb | fsl | |
| 180 | 120 | 0.80 | ABZA000008 | fb | fsl | |
| 200 | 120 | 0.80 | ABZA000009 | fb | fsl | |
| 225 | 120 | 0.80 | ABZA000010 | fb | fsl | |
| 250 | 120 | 0.80 | ABZA000011 | fb | fsl | |
| 275 | 120 | 0.80 | ABZA000012 | fb | fsl | |
| 280 | 120 | 0.80 | ABZA000013 | fb | fsl | |
| 300 | 120 | 0.80 | ABZA000014 | fb | fsl | |
| 315 | 120 | 0.80 | ABZA000015 | fb | fsl | |
| 350 | 120 | 0.80 | ABZA000016 | fb | fsl | |
| 400 | 120 | 0.80 | ABZA000017 | fb | fsl | |
| 450 | 120 | 0.80 | ABZA000018 | fb | fsl | |
| 500 | 120 | 0.80 | ABZA000019 | fb | fsl | |
| 550 | 120 | 0.80 | ABZA000020 | fb | fsl | |
| 600 | 120 | 0.80 | ABZA000021 | fb | fsl | |
| 630 | 120 | 0.80 | ABZA000022 | fb | fsl |
