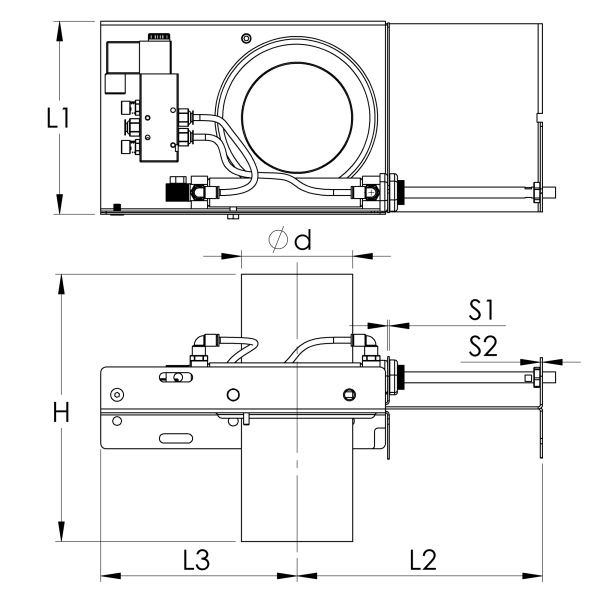

HV Pneumatic sliding damper with gasket

The CADB sliding dampers are activated by pneumatic cylinders and monostable solenoid valve, the air-tightness is achieved by two seals of EPDM and plastic. The plastic seal can be replaced by Teflon depending on the temperature.

The use of the CADB pneumatic sliding dampers optimizes the installation and allows that only the machines needed are used. This also allows for lower running costs. They are attached to the pipe with pipe connectors.

Coil and connector will be dded to your order (NDCD) for standard CADB sliding dampers as per chosen voltage.
