Inspection pipe

Inspection pipes are longitudinally spot-welded or welded with a stitch-welder for use in under-pressure and pressureless systems.

The inspection door is always produced with an inner plate for a smooth inner surface inside the pipe and a foam seal is applied along the edge of the opening to insure airtightness.

Product range

DiameterLengthThicknessItem IDEdge
Ød, mmL, mms, mm
804900.75AAAC000001fb
1004900.75AAAC000002fb
1204900.75AAAC000003fb
1254900.75AAAC000021fb
1404900.75AAAC000004fb
1504900.75AAAC000005fb
1604900.75AAAC000006fb
1804900.75AAAC000007fb
2004900.75AAAC000008fb
2254900.75AAAC000009fb
2504900.75AAAC000010fb
2754900.75AAAC000011fb
2804900.75AAAC000022fb
3004900.75AAAC000012fb
3154900.75AAAC000013fb
3504900.88AAAC000014fb
4004900.88AAAC000015fb
4504900.88AAAC000016fb
5004900.88AAAC000017fb
5504900.88AAAC000018fb
6004900.88AAAC000019fb
6304900.88AAAC000020fb
DiameterLengthThicknessItem IDEdge
Ød, mmL, mms, mm
804900.60ABAC000001fb
1004900.60ABAC000002fb
1204900.60ABAC000003fb
1404900.60ABAC000004fb
1504900.60ABAC000005fb
1604900.60ABAC000006fb
1804900.60ABAC000007fb
2004900.60ABAC000008fb
2254900.60ABAC000009fb
2504900.60ABAC000010fb
2754900.60ABAC000011fb
3004900.60ABAC000012fb
3154900.60ABAC000013fb
3504900.80ABAC000014fb
4004900.80ABAC000015fb
4504900.80ABAC000016fb
5004900.80ABAC000017fb
photo-Inspection20pipe_8179

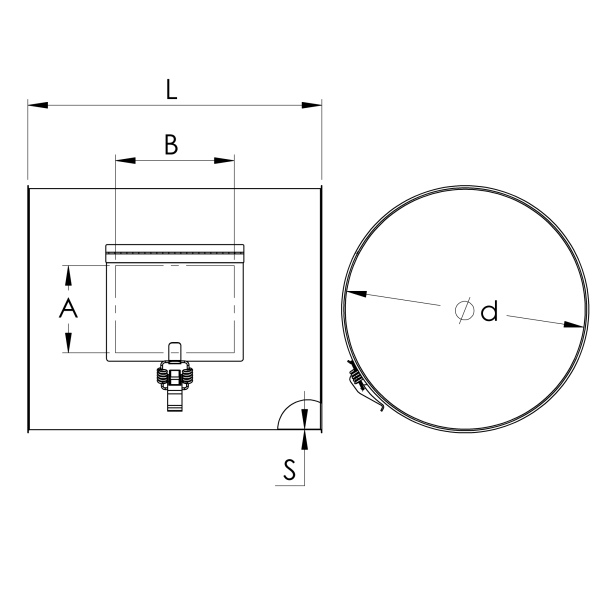

drawing-Inspection20pipe
drawing
