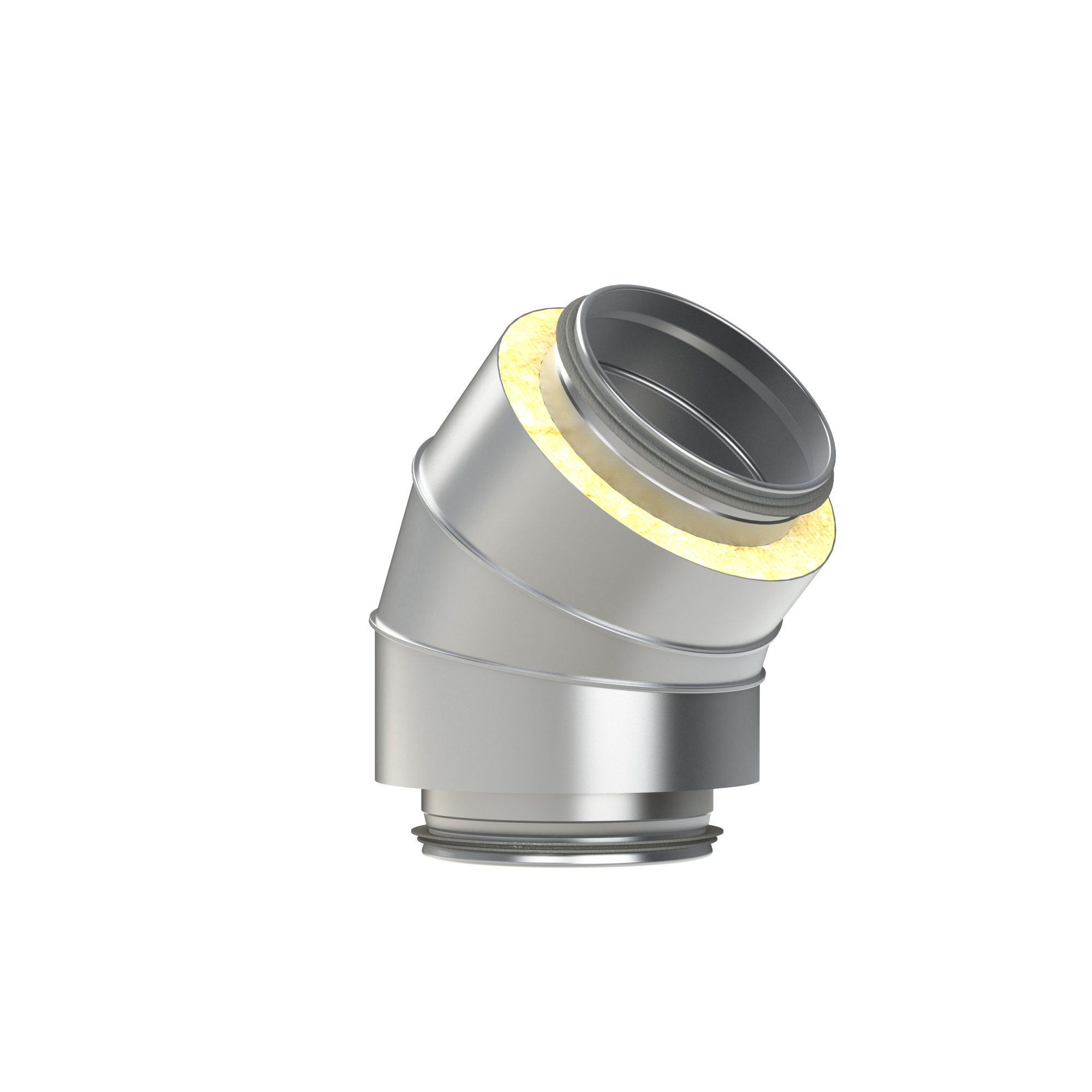

The bend is double-jacketed and insulated with mineral wool, and is supplied with rubber seal on the inner dimension. With stop bead at both inner and outer part to ensure correct installation.

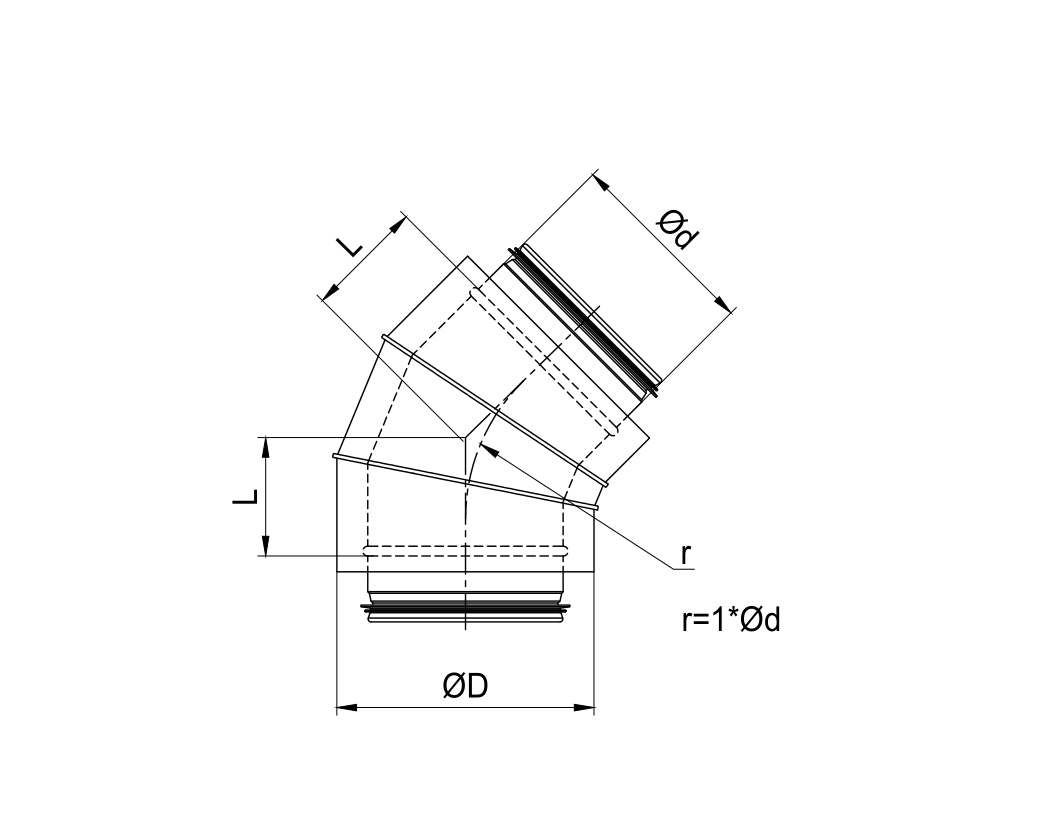

| Diameter | Diameter 3 | Length | Thickness | m | Item ID |
|---|---|---|---|---|---|
| d | D | L | t | m | |
| 80 | 112 | 41 | 0.5 | 0.4 | EIBA300001 |
| 100 | 132 | 41 | 0.5 | 0.5 | EIBA300002 |
| 125 | 157 | 52 | 0.5 | 0.7 | EIBA300003 |
| 160 | 192 | 66 | 0.6 | 1 | EIBA300004 |
| 180 | 200 | 75 | 0.6 | 1.2 | EIBA300005 |
| 200 | 232 | 83 | 0.6 | 1.5 | EIBA300006 |
| 224 | 260 | 93 | 0.6 | 1.8 | EIBA300007 |
| 250 | 280 | 104 | 0.6 | 2.3 | EIBA300008 |
| 280 | 315 | 114 | 0.6 | 3.2 | EIBA300009 |
| 300 | 355 | 124 | 0.6 | 3.6 | EIBA300010 |
| 315 | 355 | 130 | 0.6 | 4.2 | EIBA300011 |
