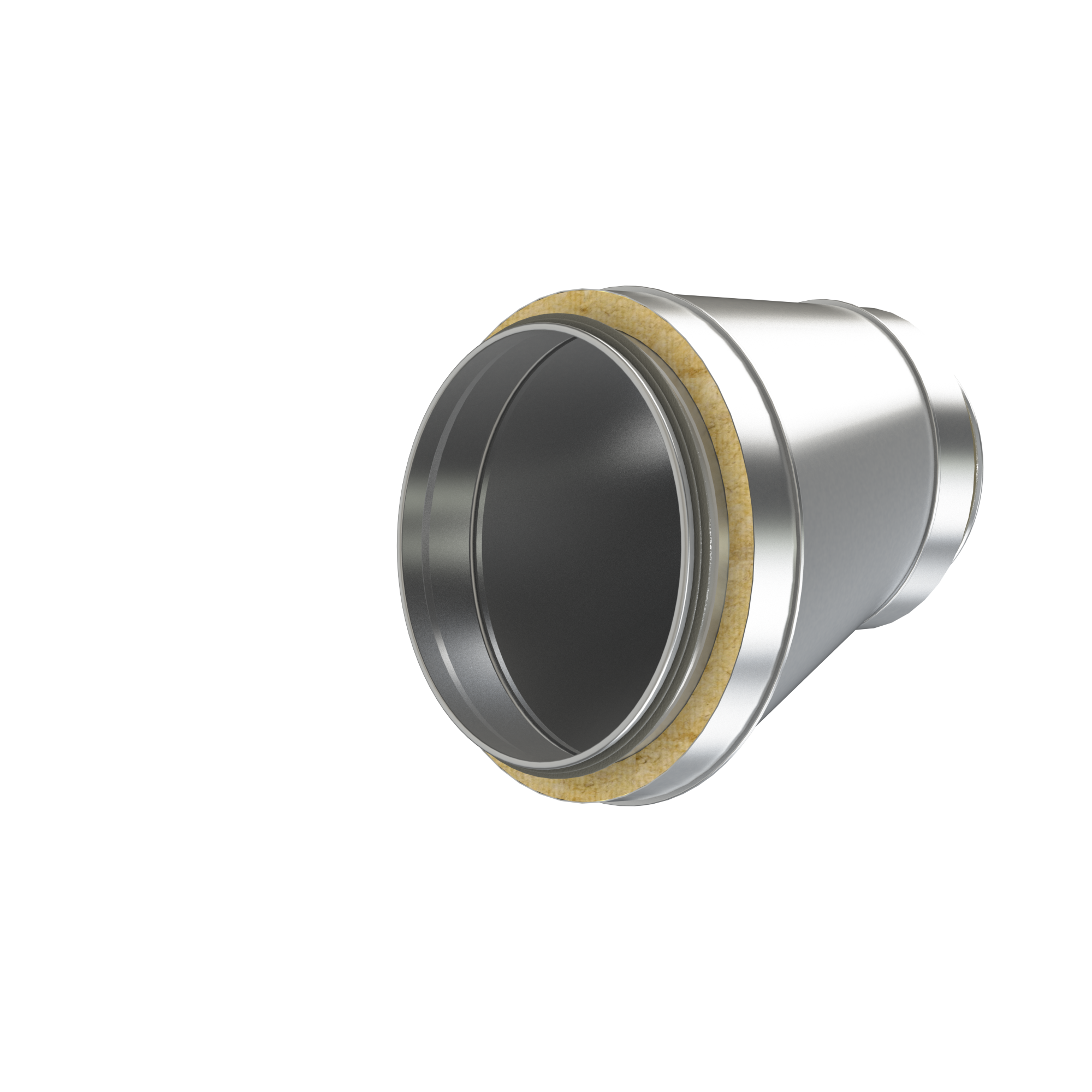

Insulated Eccentric Reducer

The long eccentric reducer is double-jacketed and insulated with mineral wool, and is supplied with rubber seal on the inner dimensions.

Product range

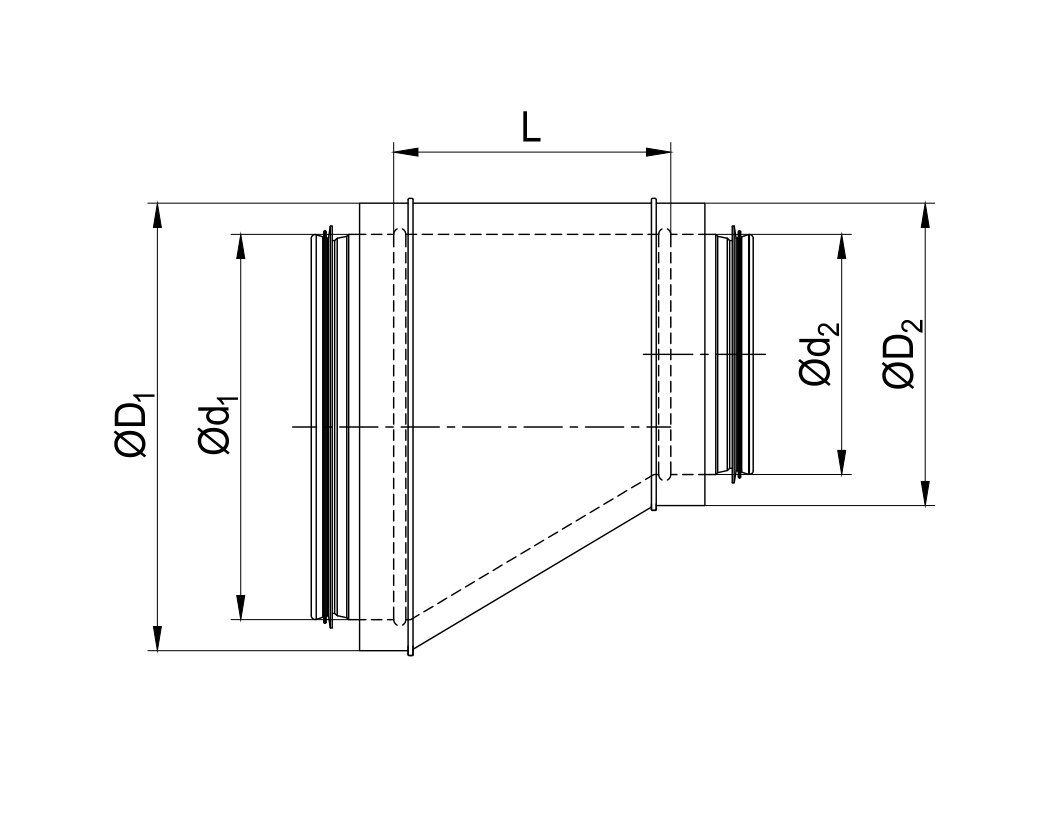

Diameter	Diameter 2	Diameter 3	Diameter 4	Length	Thickness	W	Item ID
d1	d2	D1	D2	L	t	W
100	80	132	100	58	0.5	0.4	EIEA200001
125	80	157	100	92	0.5	0.6	EIEA200002
125	100	157	125	64	0.5	0.6	EIEA200003
160	80	192	100	140	0.6	1	EIEA200004
160	100	192	132	112	0.6	1	EIEA200005
160	125	192	157	78	0.6	0.8	EIEA200006
180	80	200	100	167	0.6	1	EIEA200007
180	100	200	132	140	0.6	1	EIEA200008
180	125	200	157	106	0.6	1	EIEA200009
180	160	200	192	58	0.6	0.8	EIEA200010
200	80	232	100	195	0.6	1.2	EIEA200011
200	100	232	132	167	0.6	1.2	EIEA200012
200	125	232	157	133	0.6	1.2	EIEA200013
200	160	232	192	85	0.6	1	EIEA200014
200	180	232	200	58	0.6	1	EIEA200015
224	80	250	100	195	0.6	1.2	EIEA200016
224	100	250	132	167	0.6	1.3	EIEA200017
224	125	250	157	133	0.6	1.3	EIEA200018
224	160	250	192	85	0.6	1	EIEA200019
224	180	250	200	58	0.6	1	EIEA200020
224	200	250	232	55	0.6	1	EIEA200021
250	100	280	132	236	0.6	2	EIEA200022
250	125	280	157	202	0.6	1.8	EIEA200023
250	160	280	192	154	0.6	1.8	EIEA200024
250	180	280	200	126	0.6	1.6	EIEA200025
250	200	280	232	99	0.6	1.6	EIEA200026
280	125	315	157	243	0.6	2.2	EIEA200027
280	160	315	192	195	0.6	2.2	EIEA200028
280	180	315	200	167	0.6	2	EIEA200029
280	200	315	232	140	0.6	2	EIEA200030
280	250	315	280	99	0.6	1.6	EIEA200031
300	125	355	157	270	0.6	2.6	EIEA200032
300	160	355	192	222	0.6	2.4	EIEA200033
300	180	355	200	195	0.6	2.4	EIEA200034
300	200	355	232	167	0.6	2.2	EIEA200035
300	250	355	280	99	0.6	2	EIEA200036
300	280	355	315	58	0.6	1.8	EIEA200037
315	125	355	157	270	0.6	2.6	EIEA200038
315	160	355	192	222	0.6	2.4	EIEA200039
315	180	355	200	195	0.6	2.4	EIEA200040
315	200	355	232	167	0.6	2.2	EIEA200041
315	250	355	280	99	0.6	2	EIEA200042
315	280	355	315	58	0.6	1.8	EIEA200043
315	300	355	355	58	0.6	1.8	EIEA200044
