Medium pipe connectors with rubber seal and conductive buttons for the assembly of high vacuum components. The conductivity buttons insure the equipotential connection between the ducting elements.

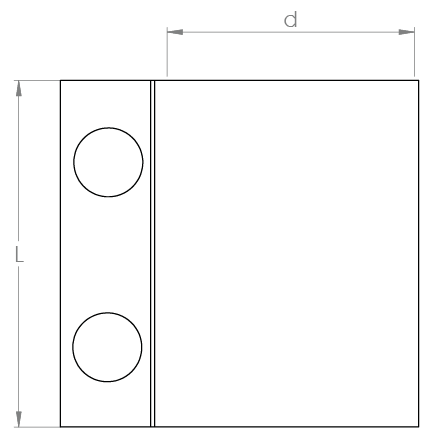

| Diameter | Length | Thickness | Item ID |
|---|---|---|---|
| Ød, mm | L, mm | s, mm | |
| 38 | 100 | 0.6 | GACB000005 |
| 50 | 100 | 0.6 | GACB000006 |
| 63 | 100 | 0.6 | GACB000007 |
| 76 | 100 | 0.6 | GACB000008 |
| 89 | 100 | 0.6 | GACB000009 |
| 102 | 150 | 0.8 | GACB000010 |
| 114 | 150 | 0.8 | GACB000011 |
