Our BADA-VEX non-return valve is an excellent ATEX ST2 certified Safety system for the compartmentalization of an explosion and is suitable for use in Ex zone 21 (ext.) and up to Ex zone 20 (int.) for organic as well as synthetic and metal dust applications and is equiped as a standard with a non-ATEX closing detection sensor. The blade locking mechanism allows the BADA-VEX to be placed before and after the vessel in horizontal and vertical position.
Advantages
economically suitable solution for security against an explosion
completely mechanical requiring practically no maintenance
no power consumption
low pressure losses
high pressure resistance
indoor or outdoor assembly allowed
loaded and clean air mounting
horizontal and vertical assembly
ATEX conformity
ATEX norm 114 : 2014/34/EC
EN 16447 : 2014, EN 15089 : 2009 and NFPA 69 regulations

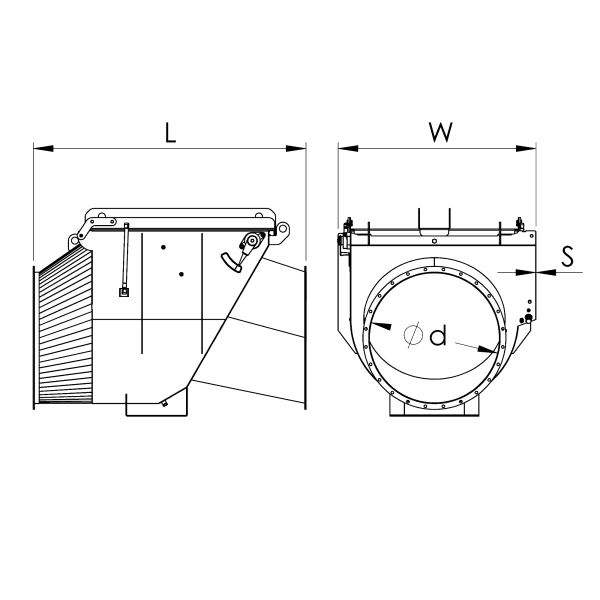

| Diameter | Description | Item ID |
|---|---|---|
| Ød, mm | ||
| 160 | Non-Return Valve BADA-VEX ATEX St2 Ø160 W.fl RAL3020 | NABA000501 |
| 180 | Non-Return Valve BADA-VEX ATEX St2 Ø180 W.fl RAL3020 | NABA000502 |
| 200 | Non-Return Valve BADA-VEX ATEX St2 Ø200 W.fl RAL3020 | NABA000503 |
| 250 | Non-Return Valve BADA-VEX ATEX St2 Ø250 W.fl RAL3020 | NABA000504 |
| 300 | Non-Return Valve BADA-VEX ATEX St2 Ø300 W.fl RAL3020 | NABA000505 |
| 350 | Non-Return Valve BADA-VEX ATEX St2 Ø350 W.fl RAL3020 | NABA000506 |
| 400 | Non-Return Valve BADA-VEX ATEX St2 Ø400 W.fl RAL3020 | NABA000507 |
| 450 | Non-Return Valve BADA-VEX ATEX St2 Ø450 W.fl RAL3020 | NABA000508 |
| 500 | Non-Return Valve BADA-VEX ATEX St2 Ø500 W.fl RAL3020 | NABA000509 |
| 550 | Non-Return Valve BADA-VEX ATEX St2 Ø550 W.fl RAL3020 | NABA000510 |
| 600 | Non-Return Valve BADA-VEX ATEX St2 Ø600 W.fl RAL3020 | NABA000511 |
| 650 | Non-Return Valve BADA-VEX ATEX St2 Ø650 W.fl RAL3020 | NABA000512 |
| 700 | Non-Return Valve BADA-VEX ATEX St2 Ø700 W.fl RAL3020 | NABA000513 |
| 750 | Non-Return Valve BADA-VEX ATEX St2 Ø750 W.fl RAL3020 | NABA000514 |
| 800 | Non-Return Valve BADA-VEX ATEX St2 Ø800 W.fl RAL3020 | NABA000515 |
