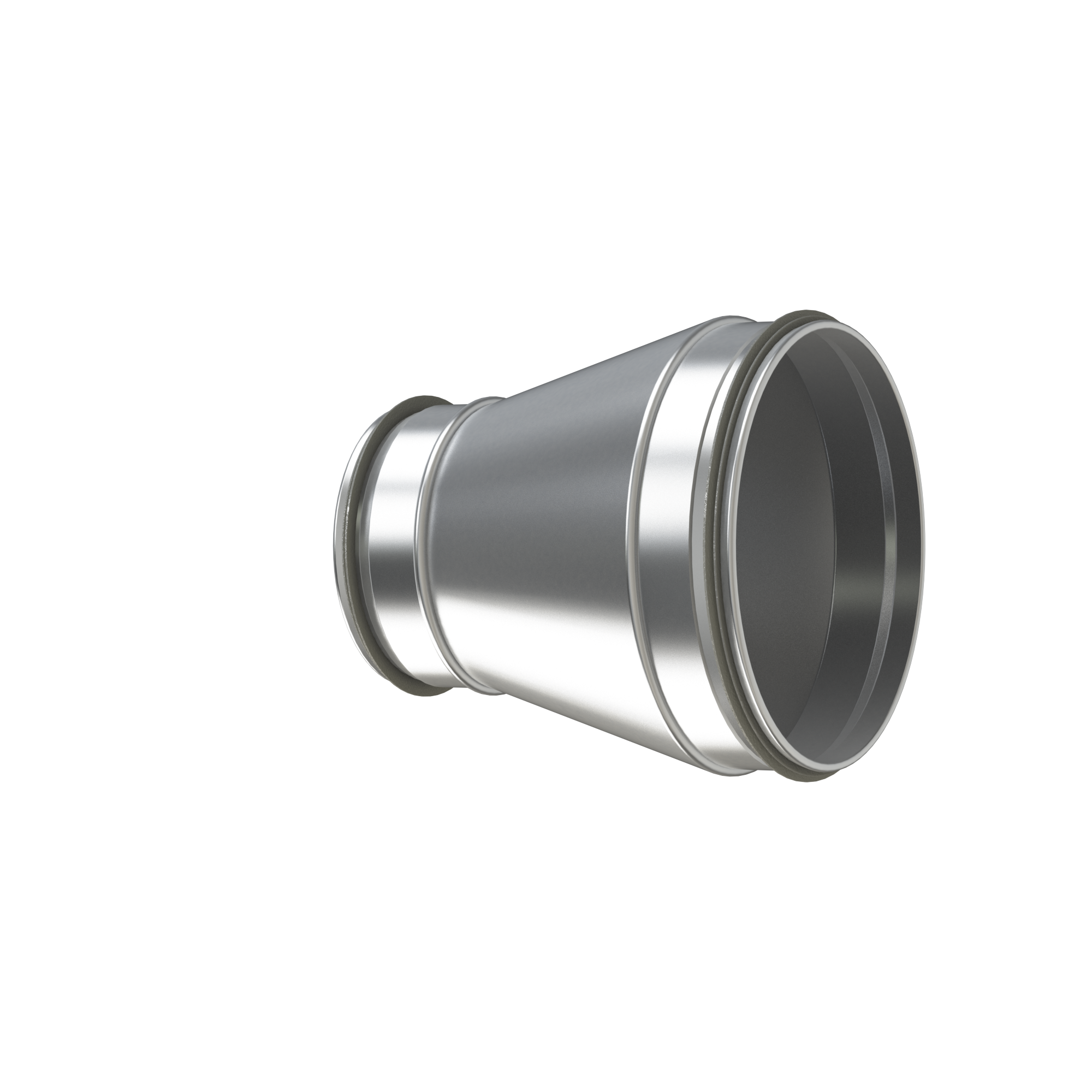

NonInsulated Centric Reducer

Long, centric, handmade reducer. Also available in other dimensions up to Ø400.

Product range

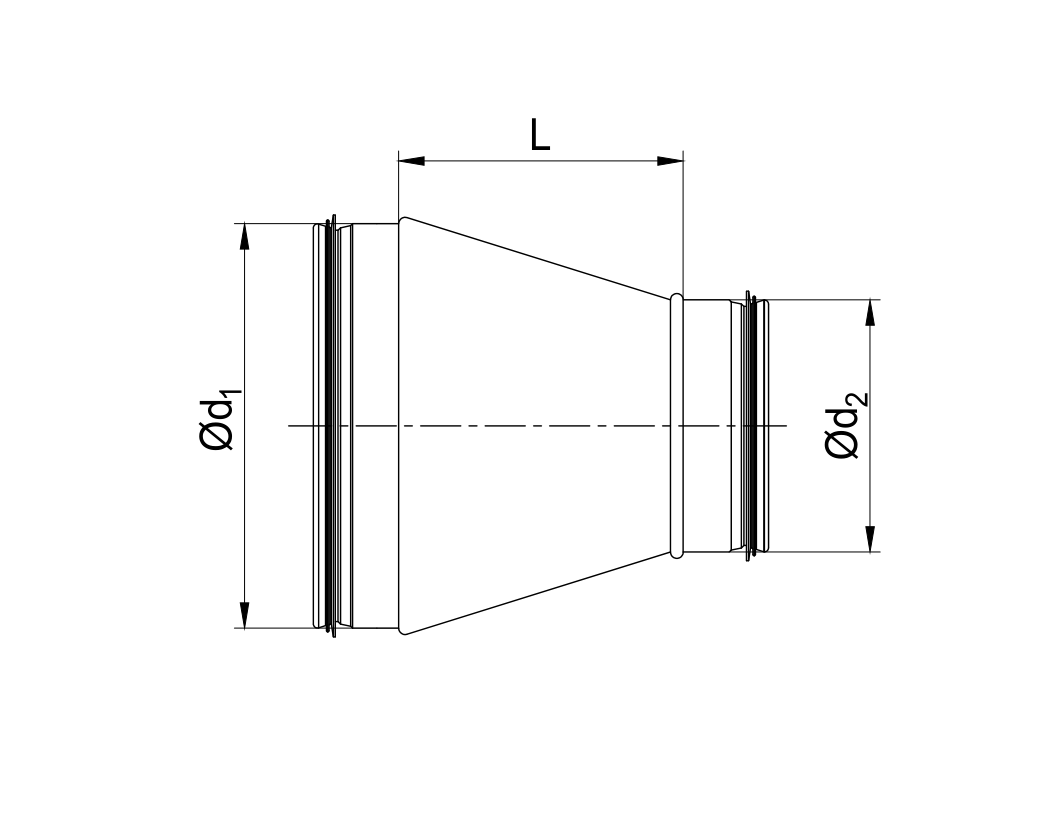

Diameter	Diameter 2	Length	Thickness	W	Item ID
d1	d2	L	t	W
100	80	58	0.5	0.2	EAEA100001
125	80	92	0.5	0.3	EAEA100002
125	100	64	0.5	0.3	EAEA100003
160	80	140	0.6	0.5	EAEA100004
160	100	112	0.6	0.5	EAEA100005
160	125	78	0.6	0.4	EAEA100006
180	80	167	0.6	0.5	EAEA100007
180	100	140	0.6	0.5	EAEA100008
180	125	106	0.6	0.5	EAEA100009
180	160	58	0.6	0.4	EAEA100010
200	80	195	0.6	0.6	EAEA100011
200	100	167	0.6	0.6	EAEA100012
200	125	133	0.6	0.6	EAEA100013
200	160	85	0.6	0.5	EAEA100014
200	180	58	0.6	0.4	EAEA100015
224	100	200	0.6	0.7	EAEA100016
224	125	166	0.6	0.7	EAEA100017
224	160	118	0.6	0.6	EAEA100018
224	180	90	0.6	0.6	EAEA100019
224	200	63	0.6	0.5	EAEA100020
250	100	236	0.6	1	EAEA100021
250	125	202	0.6	0.9	EAEA100022
250	160	154	0.6	0.9	EAEA100023
250	180	126	0.6	0.8	EAEA100024
250	200	99	0.6	0.8	EAEA100025
250	224	66	0.6	0.7	EAEA100026
280	100	236	0.6	1	EAEA100027
280	125	243	0.6	1.1	EAEA100028
280	160	195	0.6	1.1	EAEA100029
280	180	167	0.6	1	EAEA100030
280	200	140	0.6	1	EAEA100031
280	224	107	0.6	0.9	EAEA100032
280	250	71	0.6	0.8	EAEA100033
300	125	270	0.6	1.3	EAEA100034
300	160	222	0.6	1.2	EAEA100035
300	180	195	0.6	1.2	EAEA100036
300	200	167	0.6	1.1	EAEA100037
300	224	135	0.6	1	EAEA100038
300	250	99	0.6	1	EAEA100039
300	280	58	0.6	0.9	EAEA100040
315	125	291	0.6	1.4	EAEA100041
315	160	243	0.6	1.3	EAEA100042
315	180	216	0.6	1.3	EAEA100043
315	200	188	0.6	1.2	EAEA100044
315	224	155	0.6	1.1	EAEA100045
315	250	119	0.6	1.1	EAEA100046
315	280	78	0.6	1	EAEA100047
315	300	51	0.6	0.9	EAEA100048
