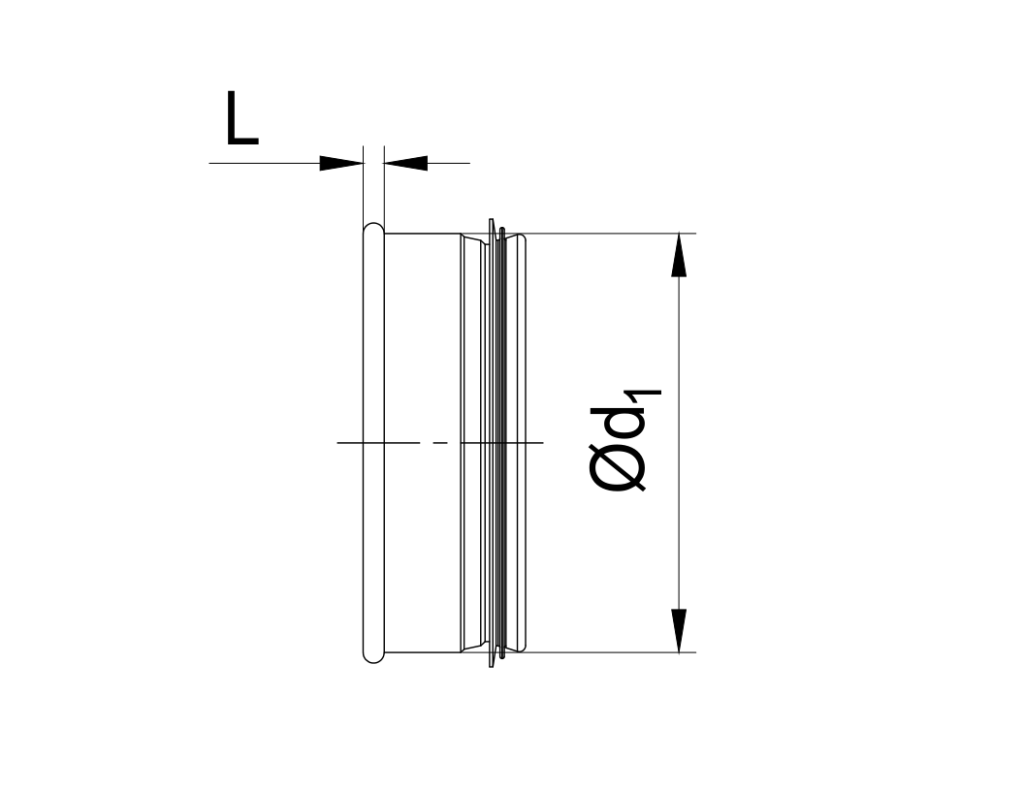

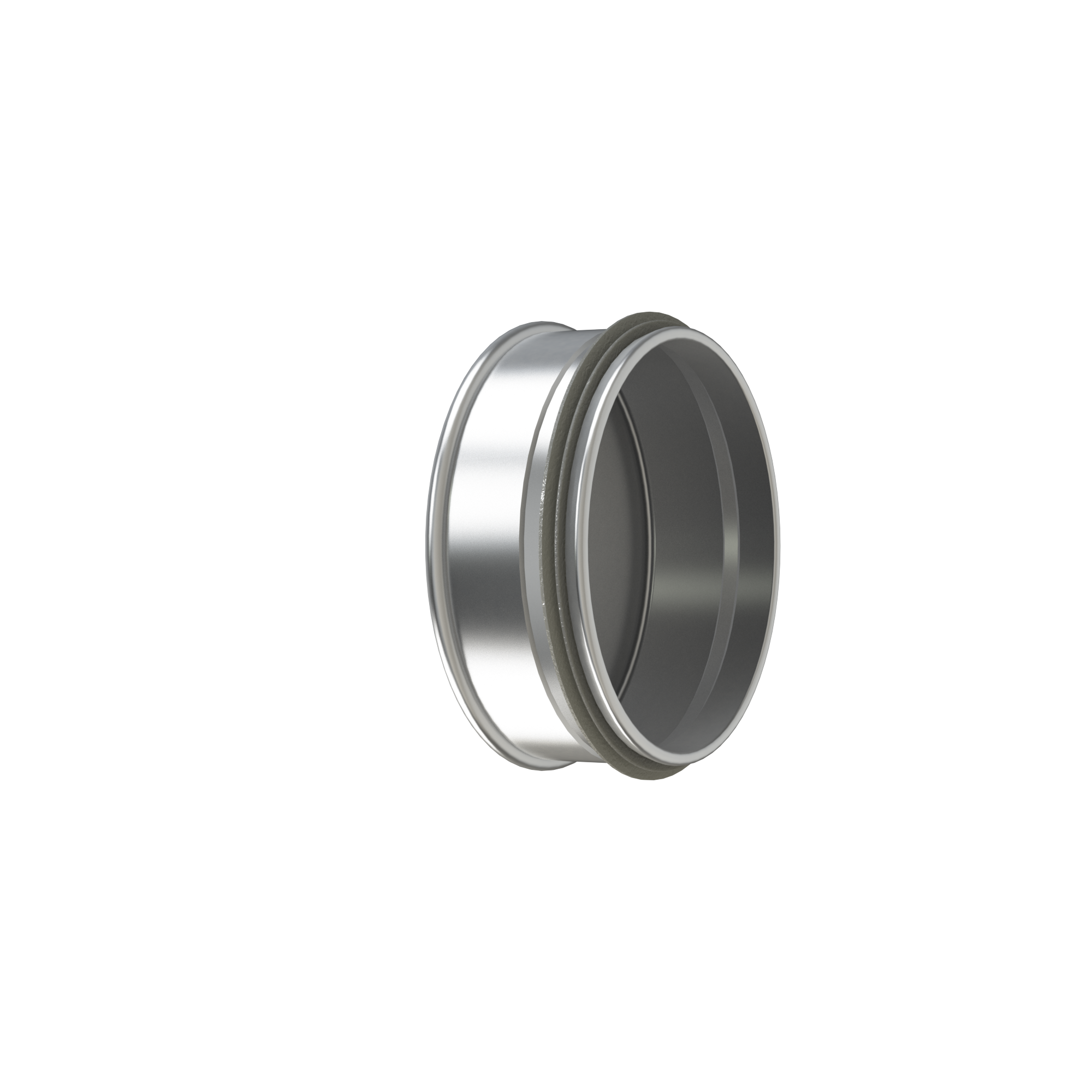

Male end cap, which fits inside a fitting. Also available in other dimensions up to Ø400.
| Diameter | Length | Thickness | W | Item ID |
|---|---|---|---|---|
| d | L | t | W | |
| 80 | 10 | 0.5 | 0.1 | EAZA200001 |
| 100 | 10 | 0.5 | 0.1 | EAZA200002 |
| 125 | 10 | 0.5 | 0.14 | EAZA200003 |
| 160 | 10 | 0.6 | 0.24 | EAZA200004 |
| 180 | 10 | 0.6 | 0.28 | EAZA200005 |
| 200 | 10 | 0.6 | 0.32 | EAZA200006 |
| 224 | 10 | 0.6 | 0.4 | EAZA200007 |
| 250 | 10 | 0.6 | 0.5 | EAZA200008 |
| 280 | 10 | 0.6 | 0.75 | EAZA200009 |
| 300 | 10 | 0.6 | 1 | EAZA200010 |
| 315 | 10 | 0.6 | 1.4 | EAZA200011 |
