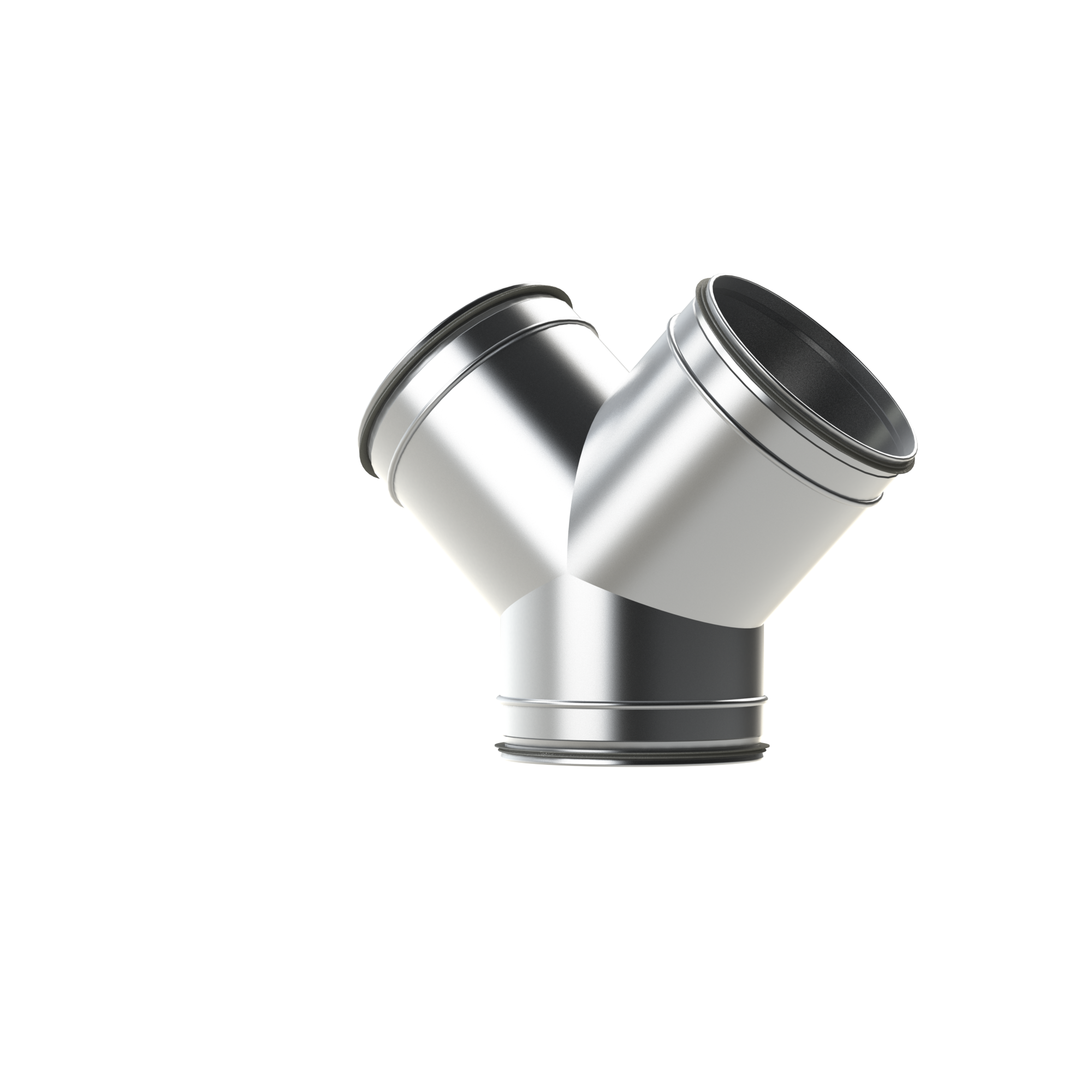

NonInsulated Trouser

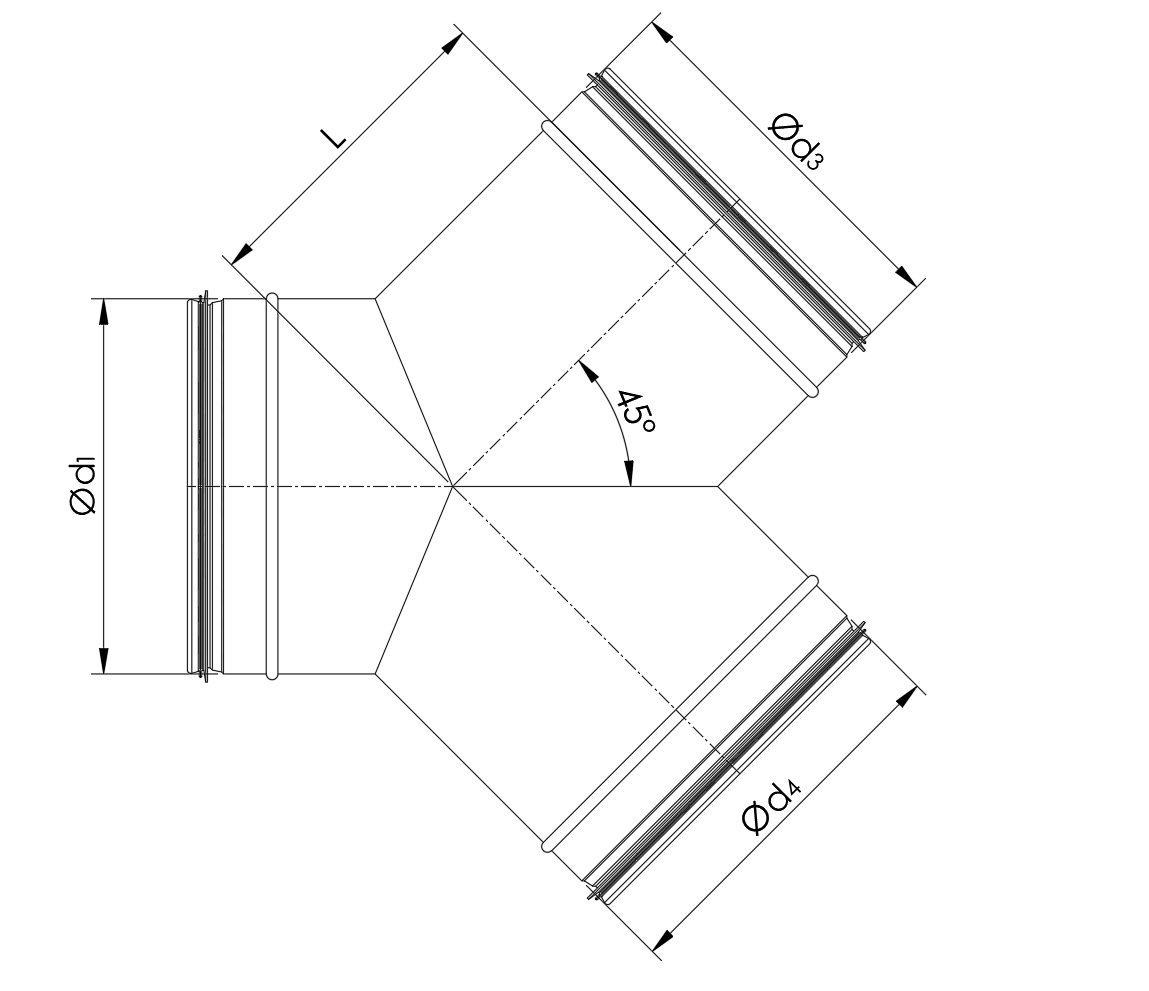

Trouser 45°. Available on request : 15°, 30°, 60°. Also available in other dimensions up to Ø400.

Product range

Diameter	Diameter 3	Diameter 4	Length	Thickness	W	Item ID
d1	d3	d4	L	t	W
80	80	80	120	0.5	0.9	EACE100001
100	80	80	140	0.5	1	EACE100002
100	100	100	140	0.5	1	EACE100003
125	80	80	170	0.5	1.1	EACE100004
125	100	100	170	0.5	1.2	EACE100005
125	125	125	170	0.5	1.3	EACE100006
160	100	100	205	0.6	1.5	EACE100007
160	125	125	205	0.6	1.6	EACE100008
160	160	160	205	0.6	1.8	EACE100009
180	125	125	215	0.6	1.8	EACE100010
180	160	160	215	0.6	2	EACE100011
180	180	180	215	0.6	2.2	EACE100012
224	125	125	240	0.6	2.2	EACE100013
224	160	160	240	0.6	2.4	EACE100014
224	180	180	240	0.6	2.6	EACE100015
224	224	224	240	0.6	2.8	EACE100016
250	160	160	280	0.6	3.2	EACE100017
250	180	180	280	0.6	3.5	EACE100018
250	224	224	280	0.6	3.8	EACE100019
250	250	250	280	0.6	4	EACE100020
280	180	180	310	0.6	3.4	EACE100021
280	200	200	310	0.6	3.6	EACE100022
280	224	224	310	0.6	3.8	EACE100023
280	250	250	310	0.6	4	EACE100024
280	280	280	310	0.6	4.2	EACE100025
300	180	180	320	0.6	4	EACE100026
300	200	200	320	0.6	4.2	EACE100027
300	224	224	320	0.6	4.4	EACE100028
300	250	250	320	0.6	4.6	EACE100029
300	280	280	320	0.6	4.8	EACE100030
300	300	300	320	0.6	5	EACE100031
315	200	200	335	0.6	4.2	EACE100032
315	224	224	335	0.6	4.4	EACE100033
315	250	250	335	0.6	4.6	EACE100034
315	280	280	335	0.6	4.8	EACE100035
315	300	300	335	0.6	5	EACE100036
315	315	315	335	0.6	5.2	EACE100037
