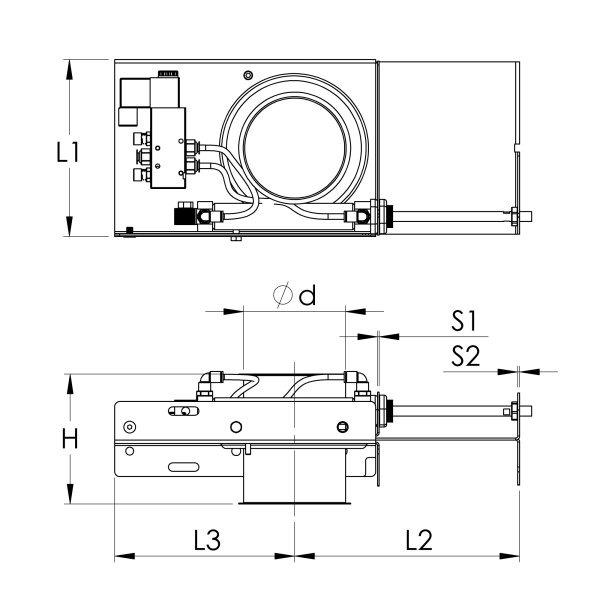

Pneumatic sliding damper with gasket

The AADA sliding dampers are activated by pneumatic cylinders and monostabe solenoid valve, the airtightness is achieved up to Ø 200 mm with two gaskets sets (EPDM and PEHD) but with only one plastic gasket set as of Ø 225 mm. The plastic seal can be replaced by Teflon depending on the temperature.

The use of the AADA pneumatic sliding dampers in under-pressure and pressureless systems optimizes the installation and allows that only the machines needed are used and for lower running costs.

Please specify voltage when ordering and coil and connector will be added to your order (NDCD).
