Quick pull ring

Name: Quick pull ring - Formula Air
SKU: GAAE241

Rings without seal for use with seals. The seals are sold separately depending on the sheet thickness used. For unpressurized, over-pressure or under-pressure systems.

For assembly of ducting 1mm, 2mm, 3mm. Specify ducting thickness when ordering the seals (GZFA, GZFB & GZFC).

Product range

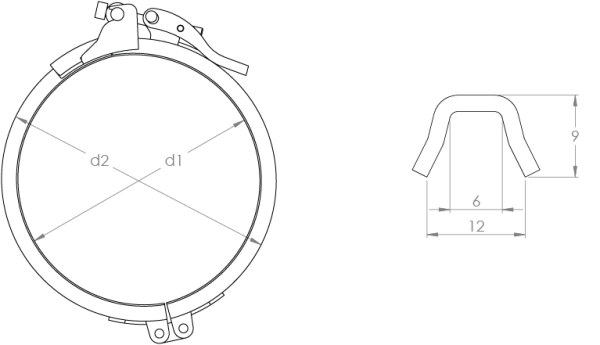

Diameter	Thickness	For ducting	Item ID
Ød, mm	s, mm	s, mm
80	2	1-2-3 mm	GAAE000001
100	2	1-2-3 mm	GAAE000002
120	2	1-2-3 mm	GAAE000003
125	2	1-2-3 mm	GAAE000023
140	2	1-2-3 mm	GAAE000004
150	2	1-2-3 mm	GAAE000005
160	2	1-2-3 mm	GAAE000006
175	2	1-2-3 mm	GAAE000007
180	2	1-2-3 mm	GAAE000008
200	2	1-2-3 mm	GAAE000009
224	2	1-2-3 mm	GAAE000010
250	2	1-2-3 mm	GAAE000011
280	2	1-2-3 mm	GAAE000012
300	2	1-2-3 mm	GAAE000013
315	2	1-2-3 mm	GAAE000014
350	2	1-2-3 mm	GAAE000015
400	2	1-2-3 mm	GAAE000016
450	2	1-2-3 mm	GAAE000017
500	2	1-2-3 mm	GAAE000018
550	2	1-2-3 mm	GAAE000019
560	2	1-2-3 mm	GAAE000020
600	2	1-2-3 mm	GAAE000021
630	2	1-2-3 mm	GAAE000022
650	2	1-2-3 mm	GAAE000024

Diameter	Thickness	For ducting	Item ID
Ød, mm	s, mm	s, mm
80	2.00	1-2-3 mm	GBAE000001
100	2.00	1-2-3 mm	GBAE000002
120	2.00	1-2-3 mm	GBAE000003
125	2.00	1-2-3 mm	GBAE000023
140	2.00	1-2-3 mm	GBAE000004
150	2.00	1-2-3 mm	GBAE000005
160	2.00	1-2-3 mm	GBAE000006
175	2.00	1-2-3 mm	GBAE000007
180	2.00	1-2-3 mm	GBAE000008
200	2.00	1-2-3 mm	GBAE000009
224	2.00	1-2-3 mm	GBAE000010
250	2.00	1-2-3 mm	GBAE000011
280	2.00	1-2-3 mm	GBAE000012
300	2.00	1-2-3 mm	GBAE000013
315	2.00	1-2-3 mm	GBAE000014
350	2.00	1-2-3 mm	GBAE000015
400	2.00	1-2-3 mm	GBAE000016
450	2.00	1-2-3 mm	GBAE000017
500	2.00	1-2-3 mm	GBAE000018
550	2.00	1-2-3 mm	GBAE000019
560	2.00	1-2-3 mm	GBAE000020
600	2.00	1-2-3 mm	GBAE000021
630	2.00	1-2-3 mm	GBAE000022
650	2.00	1-2-3 mm	GBAE000024
