Rapid lock red PVC insert

Name: Rapid lock red PVC insert - Formula Air
SKU: GAAC239

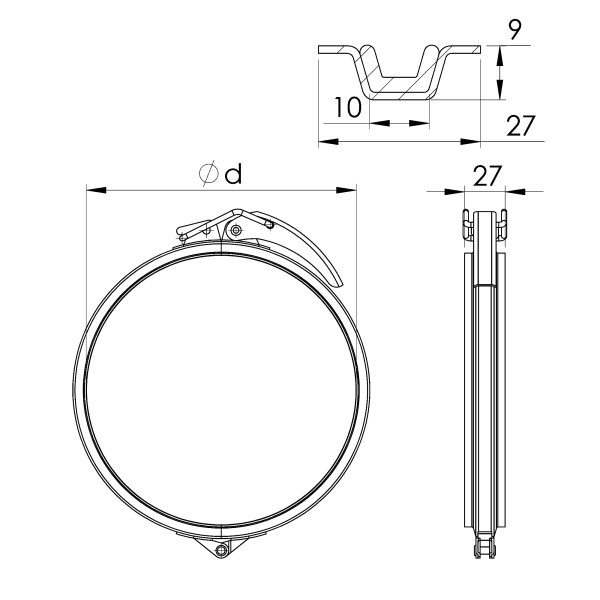

Rings with integrated red PVC insert with handle and hinge.

From Ø 80 up to Ø 400 mm with integrated hinge and handle. From Ø 450 mm, it is supplied without hinge and with an M8x80 bolt.

For assembly of ducting from 0.75 mm up to 1.25 mm.

Maximum tightening torque as of Ø450 : 10 Nm.

Product range

Diameter	Thickness	For ducting	Item ID
Ød, mm	s, mm	s, mm
80	1.25	1 mm	GAAC000001
100	1.25	1 mm	GAAC000002
120	1.25	1 mm	GAAC000003
125	1.25	1 mm	GAAC000021
140	1.25	1 mm	GAAC000004
150	1.25	1 mm	GAAC000005
160	1.25	1 mm	GAAC000006
180	1.25	1 mm	GAAC000007
200	1.25	1 mm	GAAC000008
225	1.25	1 mm	GAAC000009
250	1.25	1 mm	GAAC000010
275	1.25	1 mm	GAAC000011
280	1.25	1 mm	GAAC000022
300	1.25	1 mm	GAAC000012
315	1.25	1 mm	GAAC000013
350	1.25	1 mm	GAAC000014
400	1.25	1 mm	GAAC000015
450	1.25	1 mm	GAAC000016
500	1.25	1 mm	GAAC000017
550	1.25	1 mm	GAAC000018
600	1.25	1 mm	GAAC000019
630	1.25	1 mm	GAAC000020

Diameter	Thickness	For ducting	Item ID
Ød, mm	s, mm	s, mm
80	1.25		GBAC000001
100	1.25	1 mm	GBAC000002
120	1.25	1 mm	GBAC000003
125	1.25	1 mm	GBAC000004
140	1.25	1 mm	GBAC000005
150	1.25	1 mm	GBAC000006
160	1.25	1 mm	GBAC000007
180	1.25	1 mm	GBAC000008
200	1.25	1 mm	GBAC000009
225	1.25	1 mm	GBAC000010
250	1.25	1 mm	GBAC000011
300	1.25	1 mm	GBAC000012
315	1.25	1 mm	GBAC000013
350	1.25	1 mm	GBAC000014
400	1.25	1 mm	GBAC000015
450	1.25	1 mm	GBAC000016
