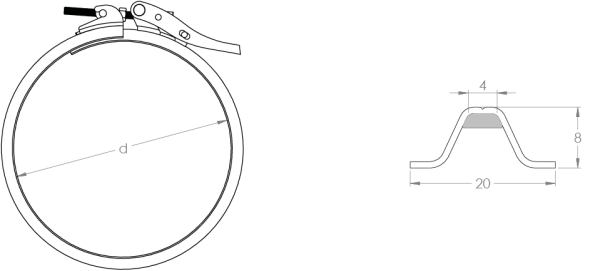

Rings with integrated foam insert and adjustable handle.From Ø 80 up to Ø 140 mm with adjustable handle and hinge.From Ø 150 mm, it is supplied without hinge and with an adjustable handle.For assembly of ducting from 0.75 mm up to 1.25 mm.
| Diameter | Thickness | For ducting | Item ID |
|---|---|---|---|
| Ød, mm | s, mm | s, mm | |
| 80 | 1.25 | 0.75-1.25 mm | GAAD000001 |
| 100 | 1.25 | 0.75-1.25 mm | GAAD000002 |
| 120 | 1.25 | 0.75-1.25 mm | GAAD000003 |
| 125 | 1.25 | 0.75-1.25 mm | GAAD000019 |
| 140 | 1.25 | 0.75-1.25 mm | GAAD000004 |
| 150 | 1.25 | 0.75-1.25 mm | GAAD000005 |
| 160 | 1.25 | 0.75-1.25 mm | GAAD000006 |
| 180 | 1.25 | 0.75-1.25 mm | GAAD000007 |
| 200 | 1.25 | 0.75-1.25 mm | GAAD000008 |
| 225 | 1.25 | 0.75-1.25 mm | GAAD000009 |
| 250 | 1.25 | 0.75-1.25 mm | GAAD000010 |
| 275 | 1.25 | 0.75-1.25 mm | GAAD000020 |
| 280 | 1.25 | 0.75-1.25 mm | GAAD000021 |
| 300 | 1.25 | 0.75-1.25 mm | GAAD000011 |
| 315 | 1.25 | 0.75-1.25 mm | GAAD000012 |
| 350 | 1.25 | 0.75-1.25 mm | GAAD000013 |
| 400 | 1.25 | 0.75-1.25 mm | GAAD000014 |
| 450 | 1.25 | 0.75-1.25 mm | GAAD000015 |
| 500 | 1.25 | 0.75-1.25 mm | GAAD000016 |
| 550 | 1.25 | 0.75-1.25 mm | GAAD000017 |
| 600 | 1.25 | 0.75-1.25 mm | GAAD000018 |
