These pipes are composed of one pipe inserted in another and held in place on bearings pinched between flanges for use in under-pressure and pressureless systems.
Designed to be used in situations where a lot of movements are required, the lower pipe can pivot freely on 360º.

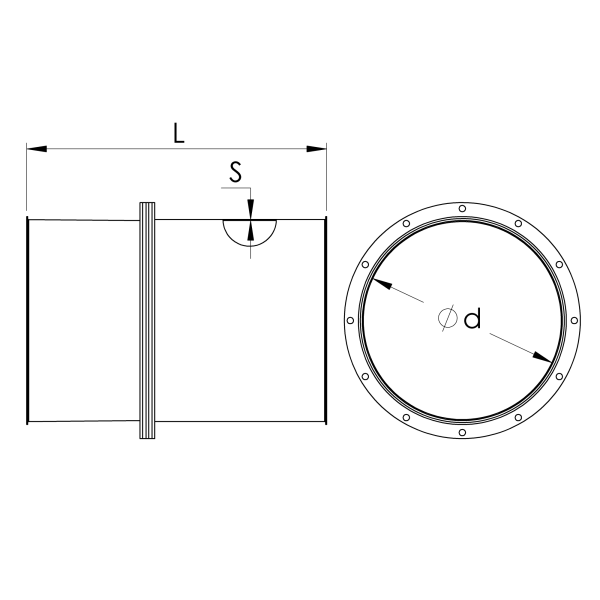

| Diameter | Height | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | h, mm | s, mm | ||
| 150 | 450 | 1.5 | AAAH000001 | fb |
| 160 | 450 | 1.5 | AAAH000002 | fb |
| 200 | 450 | 1.5 | AAAH000003 | fb |
| 250 | 450 | 1.5 | AAAH000004 | fb |
| 300 | 450 | 1.5 | AAAH000005 | fb |
