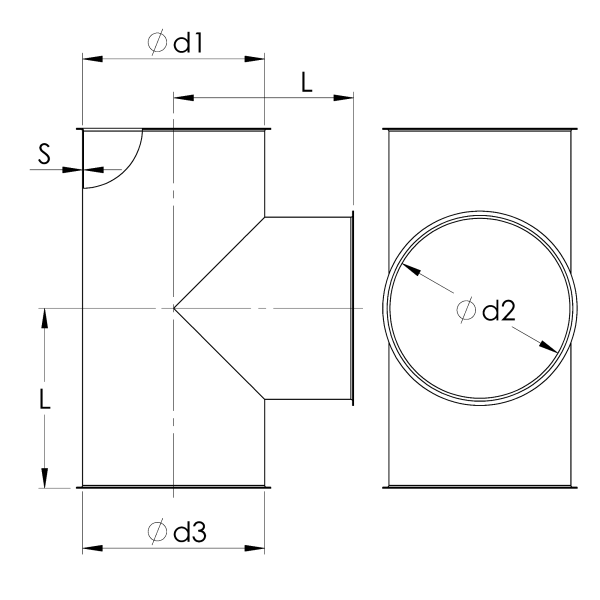

T-branch

T-branches are longitudinally stitch-welded with a spot-welded side branch for use in overpressure, under-pressure and pressureless systems.

Product range

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	115	0.88	AACB000001	fb
100	100	100	125	0.88	AACB000002	fb
120	120	120	135	0.88	AACB000003	fb
125	125	125	135	0.88	AACB000029	fb
140	140	140	145	0.88	AACB000004	fb
150	150	150	150	0.88	AACB000005	fb
160	160	160	155	0.88	AACB000006	fb
180	180	180	165	0.88	AACB000007	fb
200	200	200	175	0.88	AACB000008	fb
225	225	225	213	0.88	AACB000009	fb
250	250	250	225	0.88	AACB000010	fb
275	275	275	238	0.88	AACB000011	fb
280	280	280	238	0.88	AACB000030	fb
300	300	300	250	0.88	AACB000012	fb
315	315	315	258	0.88	AACB000013	fb
350	350	350	275	0.88	AACB000014	fb
400	400	400	300	0.88	AACB000015	fb
450	450	450	375	0.88	AACB000016	fb
500	500	500	400	0.88	AACB000017	fb
550	550	550	425	0.88	AACB000018	fb
600	600	600	450	0.88	AACB000019	fb
630	630	630	465	0.88	AACB000020	fb
650	650	650	475	0.88	AACB000021	fb
700	700	700	550	0.88	AACB000031	fb
750	750	750	575	0.88	AACB000032	fb
800	800	800	600	0.88	AACB000033	fb
850	850	850	625	0.88	AACB000034	fb
900	900	900	650	0.88	AACB000035	fb
950	950	950	675	0.88	AACB000036	fb
1,000	1,000	1,000	700	0.88	AACB000037	fb
700	700	700	550	0.88	AACB000022	L.fl
750	750	750	575	0.88	AACB000023	L.fl
800	800	800	600	0.88	AACB000024	L.fl
850	850	850	625	0.88	AACB000025	L.fl
900	900	900	650	0.88	AACB000026	L.fl
950	950	950	675	0.88	AACB000027	L.fl
1,000	1,000	1,000	700	0.88	AACB000028	L.fl

Diameter	Diameter 2	Diameter 3	Length	Thickness	Item ID	Edge
Ød, mm	Ød, mm	Ød, mm	L, mm	s, mm
80	80	80	115	0.80	ABCB000001	fb
100	100	100	125	0.80	ABCB000002	fb
120	120	120	135	0.80	ABCB000003	fb
125	125	125	135	0.80	ABCB000018	fb
140	140	140	145	0.80	ABCB000004	fb
150	150	150	150	0.80	ABCB000005	fb
160	160	160	155	0.80	ABCB000006	fb
180	180	180	165	0.80	ABCB000007	fb
200	200	200	175	0.80	ABCB000008	fb
225	225	225	213	0.80	ABCB000009	fb
250	250	250	225	0.80	ABCB000010	fb
275	275	275	238	0.80	ABCB000011	fb
280	280	280	238	0.80	ABCB000019	fb
300	300	300	250	0.80	ABCB000012	fb
315	315	315	258	0.80	ABCB000013	fb
350	350	350	275	0.80	ABCB000014	fb
400	400	400	300	0.80	ABCB000015	fb
450	450	450	375	0.80	ABCB000016	fb
500	500	500	400	0.80	ABCB000017	fb
