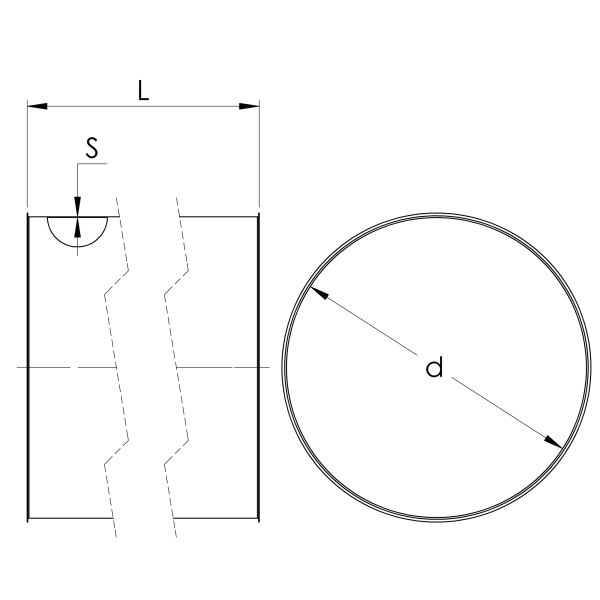

Welded pipe L=0.5m

Longitudinally welded pipes.

Product range

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	488	1	BAAA000043	fb
100	488	1	BAAA000044	fb
100	488	2	BAAA000132	fb
120	488	1	BAAA000045	fb
120	488	2	BAAA000133	fb
140	488	1	BAAA000046	fb
140	488	2	BAAA000134	fb
150	488	1	BAAA000047	fb
150	488	2	BAAA000135	fb
150	488	3	BAAA000210	fb
160	488	1	BAAA000048	fb
160	488	2	BAAA000136	fb
175	488	1	BAAA000049	fb
175	488	2	BAAA000137	fb
175	488	3	BAAA000211	fb
200	488	1	BAAA000050	fb
200	488	2	BAAA000138	fb
200	488	3	BAAA000212	fb
224	488	1	BAAA000051	fb
224	488	2	BAAA000139	fb
224	488	3	BAAA000213	fb
250	488	1	BAAA000052	fb
250	488	2	BAAA000140	fb
250	488	3	BAAA000214	fb
280	488	1	BAAA000053	fb
280	488	2	BAAA000141	fb
280	488	3	BAAA000215	fb
300	488	1	BAAA000054	fb
300	488	2	BAAA000142	fb
300	488	3	BAAA000216	fb
315	488	1	BAAA000055	fb
315	488	2	BAAA000143	fb
315	488	3	BAAA000217	fb
350	488	1	BAAA000056	fb
350	488	2	BAAA000144	fb
350	488	3	BAAA000218	fb
400	488	1	BAAA000057	fb
400	488	2	BAAA000145	fb
400	488	3	BAAA000219	fb
450	488	1	BAAA000058	fb
450	488	2	BAAA000146	fb
450	488	3	BAAA000220	fb
500	488	1	BAAA000059	fb
500	488	2	BAAA000147	fb
500	488	3	BAAA000221	fb
560	488	2	BAAA000149	fb
560	488	3	BAAA000223	fb
630	488	2	BAAA000151	fb
630	488	3	BAAA000225	fb

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	488	1.00	BDAA000043	fb
100	488	1.00	BDAA000044	fb
120	488	1.00	BDAA000045	fb
140	488	1.00	BDAA000046	fb
150	488	1.00	BDAA000047	fb
160	488	1.00	BDAA000048	fb
175	488	1.00	BDAA000049	fb
200	488	1.00	BDAA000050	fb
224	488	1.00	BDAA000051	fb
250	488	1.00	BDAA000052	fb
280	488	1.00	BDAA000053	fb
300	488	1.00	BDAA000054	fb
315	488	1.00	BDAA000055	fb
350	488	1.00	BDAA000056	fb
400	488	1.00	BDAA000057	fb
450	488	1.00	BDAA000058	fb
500	488	1.00	BDAA000059	fb

Diameter	Length	Thickness	Item ID	Edge
Ød, mm	L, mm	s, mm
80	488	1.00	BBAA000043	fb
100	488	1.00	BBAA000044	fb
100	488	2.00	BBAA000132	fb
120	488	1.00	BBAA000045	fb
120	488	2.00	BBAA000133	fb
140	488	1.00	BBAA000046	fb
140	488	2.00	BBAA000134	fb
150	488	1.00	BBAA000047	fb
150	488	2.00	BBAA000135	fb
160	488	1.00	BBAA000048	fb
160	488	2.00	BBAA000136	fb
175	488	1.00	BBAA000049	fb
175	488	2.00	BBAA000137	fb
200	488	1.00	BBAA000050	fb
200	488	2.00	BBAA000138	fb
224	488	1.00	BBAA000051	fb
224	488	2.00	BBAA000139	fb
250	488	1.00	BBAA000052	fb
250	488	2.00	BBAA000140	fb
280	488	1.00	BBAA000053	fb
280	488	2.00	BBAA000141	fb
300	488	1.00	BBAA000054	fb
300	488	2.00	BBAA000142	fb
315	488	1.00	BBAA000055	fb
315	488	2.00	BBAA000143	fb
350	488	1.00	BBAA000056	fb
350	488	2.00	BBAA000144	fb
400	488	1.00	BBAA000057	fb
400	488	2.00	BBAA000145	fb
450	488	1.00	BBAA000058	fb
450	488	2.00	BBAA000146	fb
500	488	1.00	BBAA000059	fb
500	488	2.00	BBAA000147	fb
560	488	2.00	BBAA000149	fb
630	488	2.00	BBAA000151	fb
