Welding end

Longitudinally welded pipes pieces. Designed to be welded onto a machine to start a dust extraction line.

Product range

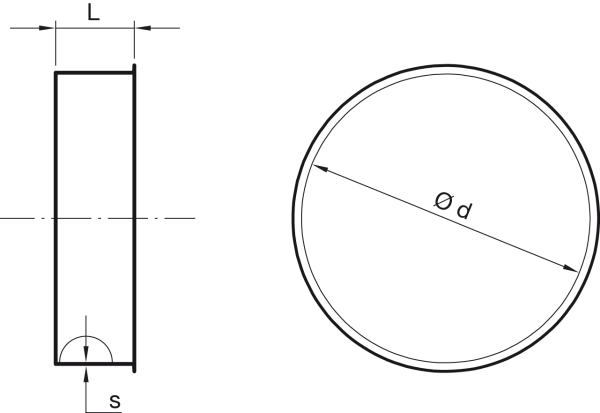

Diameter	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	L, mm	s, mm
80	55	2	BAZF000041	fb	gl
100	55	2	BAZF000042	fb	gl
120	55	2	BAZF000043	fb	gl
140	55	2	BAZF000044	fb	gl
150	55	2	BAZF000045	fb	gl
150	55	3	BAZF000062	fb	gl
160	55	2	BAZF000046	fb	gl
175	55	2	BAZF000047	fb	gl
175	55	3	BAZF000063	fb	gl
200	55	2	BAZF000048	fb	gl
200	55	3	BAZF000064	fb	gl
224	55	2	BAZF000049	fb	gl
224	55	3	BAZF000065	fb	gl
250	55	2	BAZF000050	fb	gl
250	55	3	BAZF000066	fb	gl
280	55	2	BAZF000051	fb	gl
280	55	3	BAZF000067	fb	gl
300	55	2	BAZF000052	fb	gl
300	55	3	BAZF000068	fb	gl
315	55	2	BAZF000053	fb	gl
315	55	3	BAZF000069	fb	gl
350	55	2	BAZF000054	fb	gl
350	55	3	BAZF000070	fb	gl
400	55	2	BAZF000055	fb	gl
400	55	3	BAZF000071	fb	gl
450	55	2	BAZF000056	fb	gl
450	55	3	BAZF000072	fb	gl
500	55	2	BAZF000057	fb	gl
500	55	3	BAZF000073	fb	gl
560	55	2	BAZF000059	fb	gl
560	55	3	BAZF000075	fb	gl
630	55	2	BAZF000061	fb	gl
630	55	3	BAZF000077	fb	gl

Diameter	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	L, mm	s, mm
80	55	2.00	BAZF000001	fb	gl
100	55	2.00	BAZF000002	fb	gl
120	55	2.00	BAZF000003	fb	gl
125	55	2.00	BAZF000040	fb	gl
140	55	2.00	BAZF000004	fb	gl
150	55	2.00	BAZF000005	fb	gl
150	55	3.00	BAZF000024	fb	gl
160	55	2.00	BAZF000006	fb	gl
175	55	2.00	BAZF000007	fb	gl
175	55	3.00	BAZF000025	fb	gl
180	55	2.00	BAZF000008	fb	gl
200	55	2.00	BAZF000009	fb	gl
200	55	3.00	BAZF000026	fb	gl
224	55	2.00	BAZF000010	fb	gl
224	55	3.00	BAZF000027	fb	gl
250	55	2.00	BAZF000011	fb	gl
250	55	3.00	BAZF000028	fb	gl
275	55	2.00	BAZF000012	fb	gl
280	55	2.00	BAZF000013	fb	gl
280	55	3.00	BAZF000029	fb	gl
300	55	2.00	BAZF000014	fb	gl
300	55	3.00	BAZF000030	fb	gl
315	55	2.00	BAZF000015	fb	gl
315	55	3.00	BAZF000031	fb	gl
350	55	2.00	BAZF000016	fb	gl
350	55	3.00	BAZF000032	fb	gl
400	55	2.00	BAZF000017	fb	gl
400	55	3.00	BAZF000033	fb	gl
450	55	2.00	BAZF000018	fb	gl
450	55	3.00	BAZF000034	fb	gl
500	55	2.00	BAZF000019	fb	gl
500	55	3.00	BAZF000035	fb	gl
550	55	2.00	BAZF000020	fb	gl
560	55	2.00	BAZF000021	fb	gl
560	55	3.00	BAZF000037	fb	gl
600	55	2.00	BAZF000022	fb	gl
630	55	2.00	BAZF000023	fb	gl
630	55	3.00	BAZF000039	fb	gl

Diameter	Length	Thickness	Item ID	Edge	Edge 2
Ød, mm	L, mm	s, mm
80	55	2.00	BBZF000001	fb	gl
100	55	2.00	BBZF000002	fb	gl
120	55	2.00	BBZF000003	fb	gl
140	55	2.00	BBZF000004	fb	gl
150	55	2.00	BBZF000005	fb	gl
160	55	2.00	BBZF000006	fb	gl
175	55	2.00	BBZF000007	fb	gl
200	55	2.00	BBZF000008	fb	gl
224	55	2.00	BBZF000009	fb	gl
250	55	2.00	BBZF000010	fb	gl
280	55	2.00	BBZF000011	fb	gl
300	55	2.00	BBZF000012	fb	gl
315	55	2.00	BBZF000013	fb	gl
350	55	2.00	BBZF000014	fb	gl
400	55	2.00	BBZF000015	fb	gl
450	55	2.00	BBZF000016	fb	gl
500	55	2.00	BBZF000017	fb	gl
560	55	2.00	BBZF000019	fb	gl
630	55	2.00	BBZF000021	fb	gl
