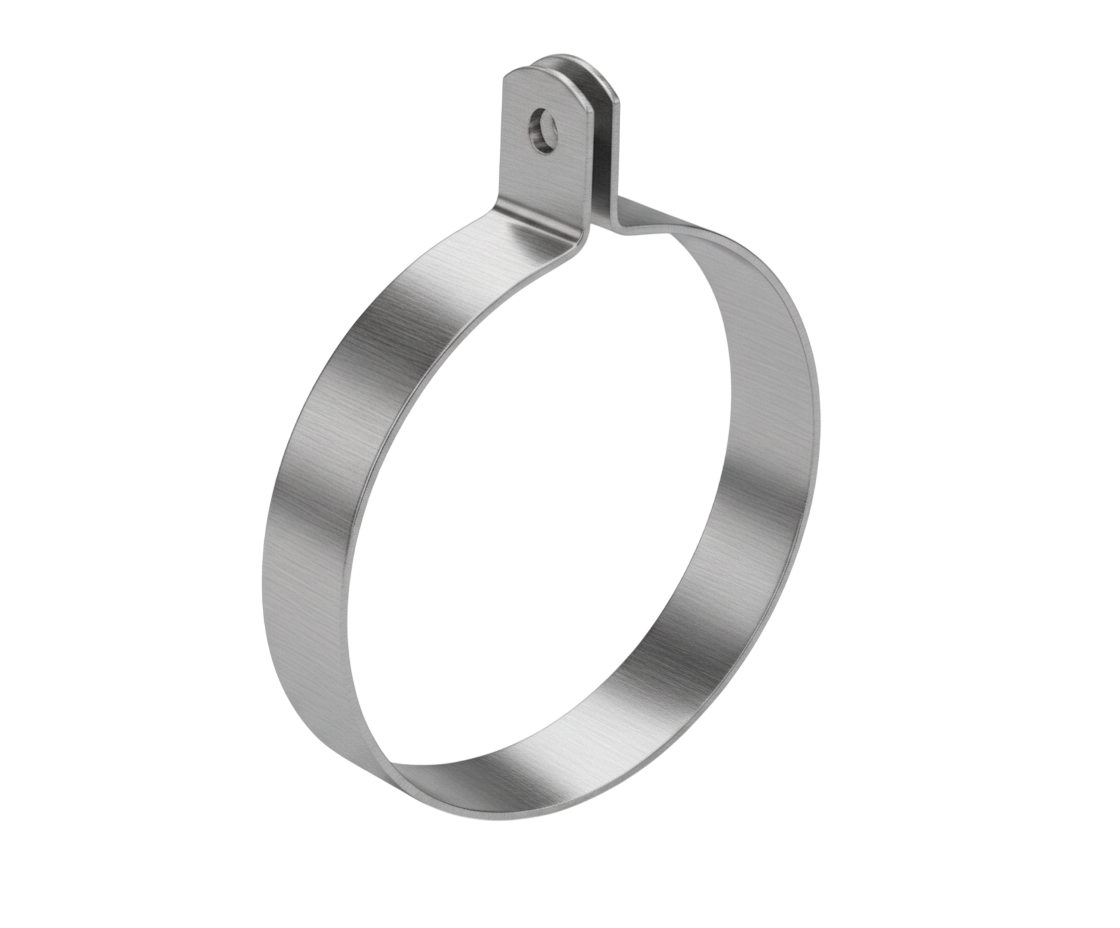

Description Clamp with short ear, for suspension of circular ducting in restricted spaces. For insulated duct it is recommended that the suspension ring is mounted inside the insulation.

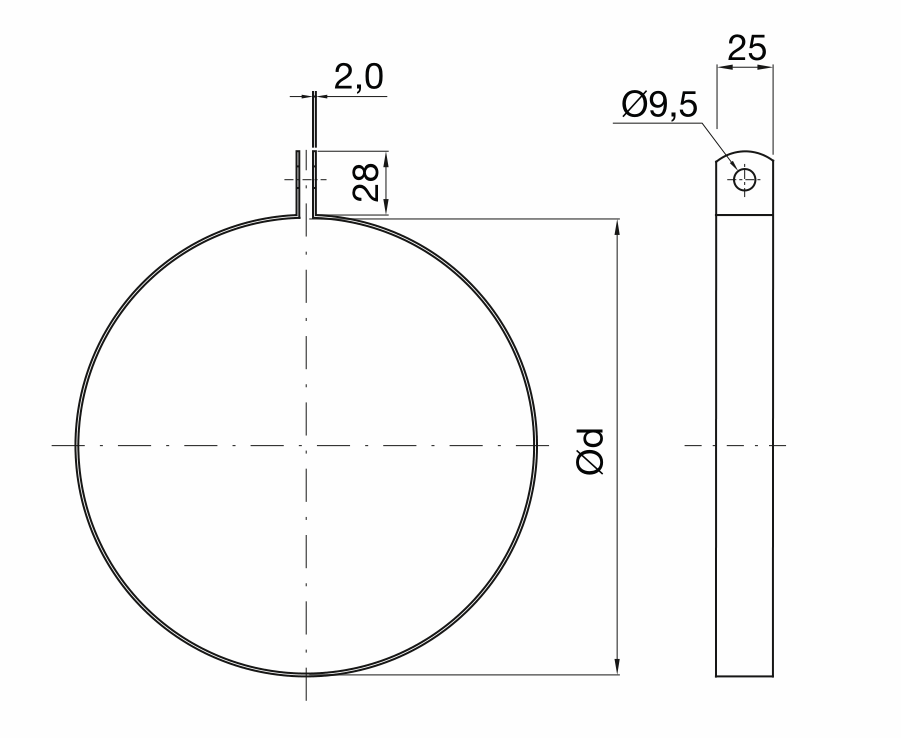

| Diameter | Thickness | Item ID |
|---|---|---|
| d | t | |
| 80 | 2 | EAZA500001 |
| 100 | 2 | EAZA500002 |
| 112 | 2 | EAZA500003 |
| 125 | 2 | EAZA500004 |
| 132 | 2 | EAZA500005 |
| 157 | 2 | EAZA500006 |
| 160 | 2 | EAZA500007 |
| 180 | 2 | EAZA500008 |
| 192 | 2 | EAZA500009 |
| 200 | 2 | EAZA500010 |
| 224 | 2 | EAZA500011 |
| 232 | 2 | EAZA500012 |
| 250 | 2 | EAZA500013 |
| 260 | 2 | EAZA500014 |
| 280 | 2 | EAZA500015 |
| 300 | 2 | EAZA500016 |
| 315 | 2 | EAZA500017 |
