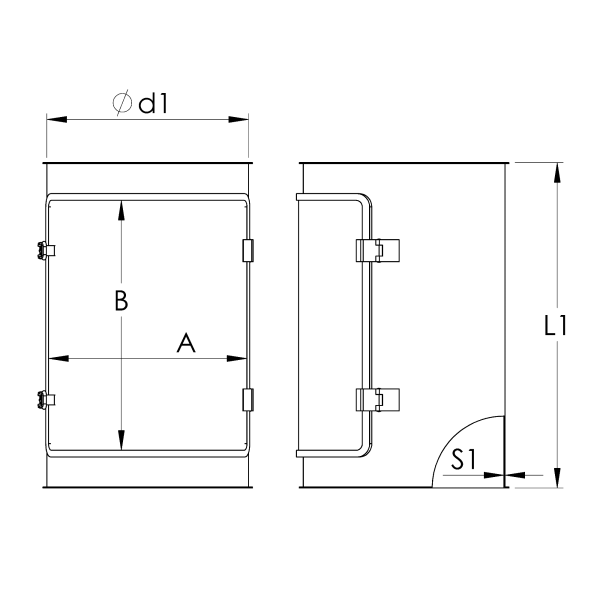

Cleaning pipes are longitudinally welded. Airthightness is insured by a silicone seal all around the lip of the door.
The inspection door is always produced with an inner plate for a smooth inner surface inside the pipe.
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 150 | 488 | 1.5 | BDAG000001 | fb |
| 160 | 488 | 1.5 | BDAG000002 | fb |
| 175 | 488 | 1.5 | BDAG000003 | fb |
| 200 | 488 | 1.5 | BDAG000004 | fb |
| 224 | 488 | 1.5 | BDAG000005 | fb |
| 250 | 488 | 1.5 | BDAG000006 | fb |
| 280 | 488 | 1.5 | BDAG000007 | fb |
| 300 | 488 | 1.5 | BDAG000008 | fb |
| 315 | 488 | 1.5 | BDAG000009 | fb |
| 350 | 488 | 1.5 | BDAG000010 | fb |
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 150 | 488 | 1.50 | BAAG000001 | fb |
| 150 | 488 | 2.00 | BAAG000012 | fb |
| 150 | 488 | 3.00 | BAAG000029 | fb |
| 160 | 488 | 1.50 | BAAG000002 | fb |
| 160 | 488 | 2.00 | BAAG000013 | fb |
| 175 | 488 | 1.50 | BAAG000003 | fb |
| 175 | 488 | 2.00 | BAAG000014 | fb |
| 175 | 488 | 3.00 | BAAG000030 | fb |
| 200 | 488 | 1.50 | BAAG000004 | fb |
| 200 | 488 | 2.00 | BAAG000015 | fb |
| 200 | 488 | 3.00 | BAAG000031 | fb |
| 224 | 488 | 1.50 | BAAG000005 | fb |
| 224 | 488 | 2.00 | BAAG000016 | fb |
| 224 | 488 | 3.00 | BAAG000032 | fb |
| 250 | 488 | 1.50 | BAAG000006 | fb |
| 250 | 488 | 2.00 | BAAG000017 | fb |
| 250 | 488 | 3.00 | BAAG000033 | fb |
| 280 | 488 | 1.50 | BAAG000007 | fb |
| 280 | 488 | 2.00 | BAAG000018 | fb |
| 280 | 488 | 3.00 | BAAG000034 | fb |
| 300 | 488 | 1.50 | BAAG000008 | fb |
| 300 | 488 | 2.00 | BAAG000019 | fb |
| 300 | 488 | 3.00 | BAAG000035 | fb |
| 315 | 488 | 1.50 | BAAG000009 | fb |
| 315 | 488 | 2.00 | BAAG000020 | fb |
| 315 | 488 | 3.00 | BAAG000036 | fb |
| 350 | 488 | 1.50 | BAAG000010 | fb |
| 350 | 488 | 2.00 | BAAG000021 | fb |
| 350 | 488 | 3.00 | BAAG000037 | fb |
| 400 | 488 | 1.50 | BAAG000011 | fb |
| 400 | 488 | 2.00 | BAAG000022 | fb |
| 400 | 488 | 3.00 | BAAG000038 | fb |
| 450 | 488 | 2.00 | BAAG000023 | fb |
| 450 | 488 | 3.00 | BAAG000039 | fb |
| 500 | 488 | 2.00 | BAAG000024 | fb |
| 500 | 488 | 3.00 | BAAG000040 | fb |
| 560 | 488 | 2.00 | BAAG000026 | fb |
| 560 | 488 | 3.00 | BAAG000042 | fb |
| 630 | 488 | 2.00 | BAAG000028 | fb |
| 630 | 488 | 3.00 | BAAG000044 | fb |
| Diameter | Length | Thickness | Item ID | Edge |
|---|---|---|---|---|
| Ød, mm | L, mm | s, mm | ||
| 150 | 488 | 1.50 | BBAG000001 | fb |
| 150 | 488 | 2.00 | BBAG000012 | fb |
| 160 | 488 | 1.50 | BBAG000002 | fb |
| 160 | 488 | 2.00 | BBAG000013 | fb |
| 175 | 488 | 1.50 | BBAG000003 | fb |
| 175 | 488 | 2.00 | BBAG000014 | fb |
| 200 | 488 | 1.50 | BBAG000004 | fb |
| 200 | 488 | 2.00 | BBAG000015 | fb |
| 224 | 488 | 1.50 | BBAG000005 | fb |
| 224 | 488 | 2.00 | BBAG000016 | fb |
| 250 | 488 | 1.50 | BBAG000006 | fb |
| 250 | 488 | 2.00 | BBAG000017 | fb |
| 280 | 488 | 1.50 | BBAG000007 | fb |
| 280 | 488 | 2.00 | BBAG000018 | fb |
| 300 | 488 | 1.50 | BBAG000008 | fb |
| 300 | 488 | 2.00 | BBAG000019 | fb |
| 315 | 488 | 1.50 | BBAG000009 | fb |
| 315 | 488 | 2.00 | BBAG000020 | fb |
| 350 | 488 | 1.50 | BBAG000010 | fb |
| 350 | 488 | 2.00 | BBAG000021 | fb |
| 400 | 488 | 1.50 | BBAG000011 | fb |
| 400 | 488 | 2.00 | BBAG000022 | fb |
| 450 | 488 | 2.00 | BBAG000023 | fb |
| 500 | 488 | 2.00 | BBAG000024 | fb |
| 560 | 488 | 2.00 | BBAG000026 | fb |
| 630 | 488 | 2.00 | BBAG000028 | fb |
