Reinforced pipe connectors with rubber seal and conductive buttons for the assembly of high vacuum components. The conductivity buttons insure the equipotential connection between the ducting elements.

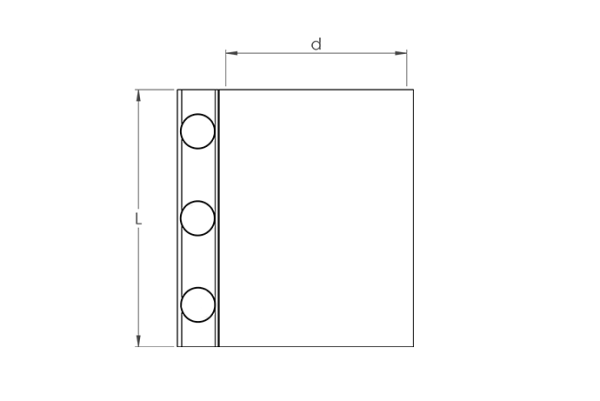

| Diameter | Length | Thickness | Item ID |
|---|---|---|---|
| Ød, mm | L, mm | s, mm | |
| 38 | 150 | 1 | GACC000011 |
| 50 | 150 | 1 | GACC000012 |
| 63 | 150 | 1 | GACC000013 |
| 76 | 150 | 1 | GACC000014 |
| 89 | 150 | 1 | GACC000015 |
| 102 | 150 | 1 | GACC000016 |
| 114 | 150 | 1 | GACC000017 |
| 127 | 150 | 1 | GACC000018 |
| 152 | 150 | 1 | GACC000019 |
| 203 | 200 | 1 | GACC000020 |
| Diameter | Length | Thickness | Item ID |
|---|---|---|---|
| Ød, mm | L, mm | s, mm | |
| 38 | 150 | 1.00 | GBCC000001 |
| 50 | 150 | 1.00 | GBCC000002 |
| 63 | 150 | 1.00 | GBCC000003 |
| 76 | 150 | 1.00 | GBCC000004 |
| 89 | 150 | 1.00 | GBCC000005 |
| 102 | 150 | 1.00 | GBCC000006 |
| 114 | 150 | 1.00 | GBCC000007 |
| 127 | 150 | 1.00 | GBCC000008 |
| 152 | 150 | 1.00 | GBCC000009 |
| 203 | 200 | 1.00 | GBCC000010 |
