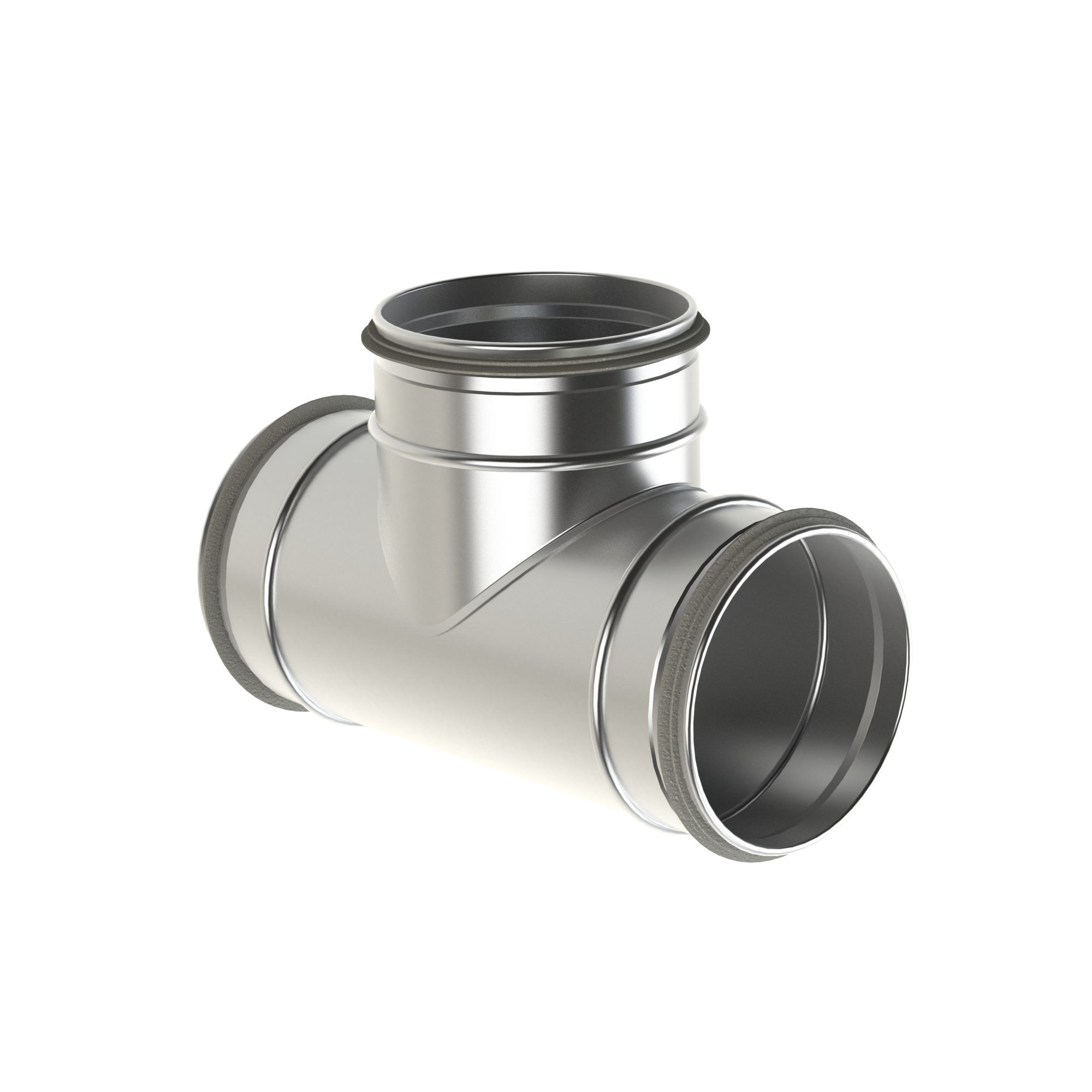

NonInsulated T-piece

T-piece built with handmade saddle or a fully pressed top section. Also available in other dimensions up to Ø400.

Product range

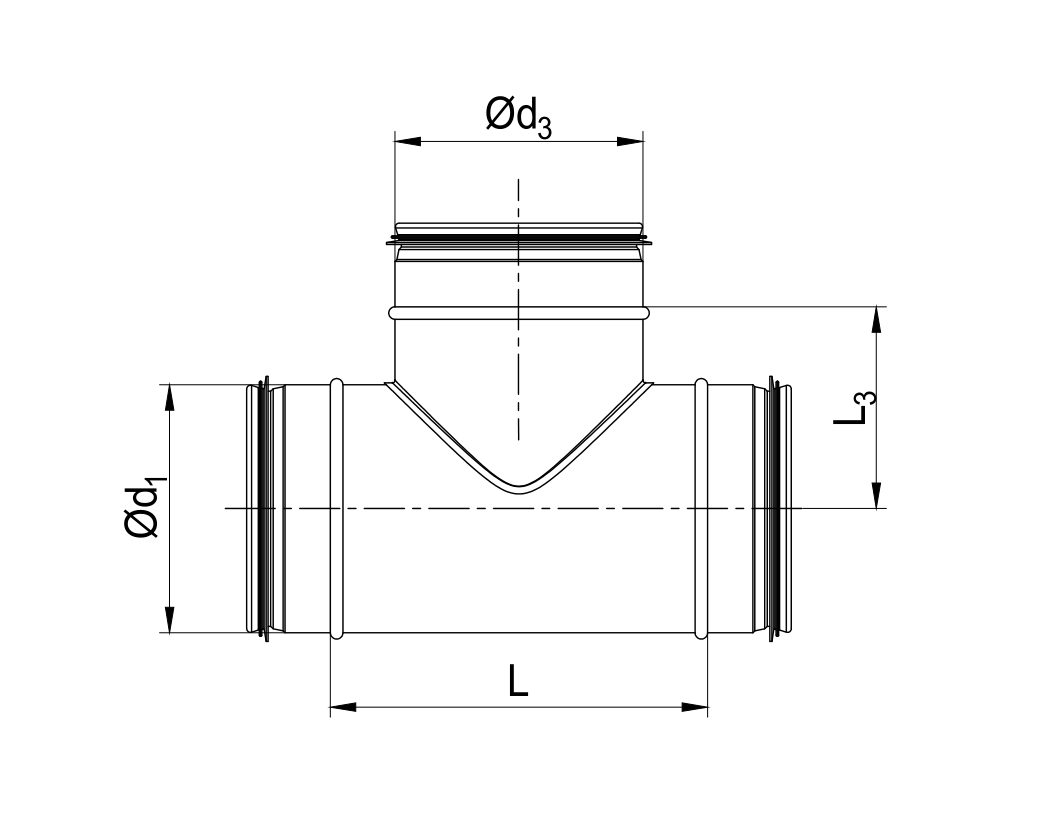

Diameter	Diameter 3	Length	Thickness	W	Item ID
d1	d3	L	t	W
80	80	170	0.5	0.5	EACB200001
100	80	170	0.5	0.5	EACB200002
100	100	190	0.5	0.5	EACB200003
125	80	170	0.5	0.6	EACB200004
125	100	190	0.5	0.6	EACB200005
125	125	215	0.5	0.7	EACB200006
160	80	170	0.6	0.7	EACB200007
160	100	190	0.6	0.7	EACB200008
160	125	215	0.6	0.7	EACB200009
160	160	260	0.6	0.9	EACB200010
180	80	170	0.6	0.6	EACB200011
180	100	190	0.6	0.6	EACB200012
180	125	215	0.6	0.6	EACB200013
180	160	260	0.6	0.8	EACB200014
180	180	280	0.6	0.9	EACB200015
200	80	170	0.6	0.6	EACB200016
200	100	190	0.6	0.6	EACB200017
200	125	215	0.6	0.7	EACB200018
200	160	260	0.6	0.9	EACB200019
200	180	280	0.6	0.9	EACB200020
200	200	330	0.6	1	EACB200021
250	80	170	0.6	1.2	EACB200022
250	100	190	0.6	1.3	EACB200023
250	125	215	0.6	1.4	EACB200024
250	160	260	0.6	1.6	EACB200025
250	180	280	0.6	1.7	EACB200026
250	200	330	0.6	1.8	EACB200027
250	224	355	0.6	2	EACB200028
250	250	380	0.6	2.3	EACB200029
280	80	170	0.6	1.6	EACB200030
280	100	190	0.6	1.7	EACB200031
280	125	215	0.6	1.8	EACB200032
280	160	260	0.6	2.2	EACB200033
280	180	280	0.6	2.3	EACB200034
280	200	330	0.6	2.4	EACB200035
280	224	355	0.6	2.6	EACB200036
280	250	380	0.6	2.8	EACB200037
280	280	430	0.6	3	EACB200038
300	80	170	0.6	1.8	EACB200039
300	100	190	0.6	1.9	EACB200040
300	125	215	0.6	2	EACB200041
300	160	260	0.6	2.4	EACB200042
300	180	280	0.6	2.6	EACB200043
300	200	330	0.6	2.8	EACB200044
300	224	355	0.6	3	EACB200045
300	250	380	0.6	3.2	EACB200046
300	280	430	0.6	3.4	EACB200047
300	300	450	0.6	3.6	EACB200048
315	80	170	0.6	2	EACB200049
315	100	190	0.6	2.1	EACB200050
315	125	215	0.6	2.2	EACB200051
315	160	260	0.6	2.6	EACB200052
315	180	280	0.6	2.8	EACB200053
315	200	330	0.6	3	EACB200054
315	224	355	0.6	3.2	EACB200055
315	250	380	0.6	3.4	EACB200056
315	280	430	0.6	3.6	EACB200057
315	300	450	0.6	3.8	EACB200058
315	315	465	0.6	4	EACB200059
