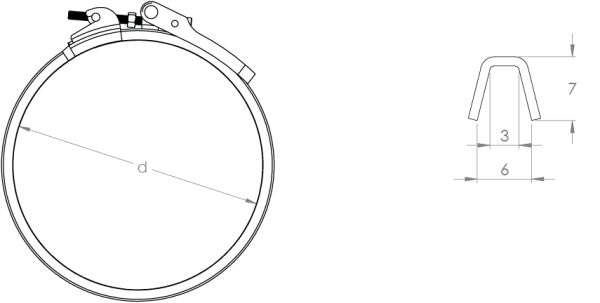

Rings with adjustable handle.
Rings Ø80 & Ø100 mm are with adjustable handle and hinge. From Ø120 mm, it is supplied without hinge and with an adjustable handle.
For assembly of ducting from 0.75 mm up to 1.25 mm. As an option, a rubber seal can be added for better airtightness.
| Diameter | Thickness | For ducting | Item ID |
|---|---|---|---|
| Ød, mm | s, mm | s, mm | |
| 80 | 1 | 1 mm | GAAJ000001 |
| 100 | 1 | 1 mm | GAAJ000002 |
| 120 | 1 | 1 mm | GAAJ000003 |
| 125 | 1 | 1 mm | GAAJ000004 |
| 140 | 1 | 1 mm | GAAJ000005 |
| 150 | 1 | 1 mm | GAAJ000006 |
| 160 | 1 | 1 mm | GAAJ000007 |
| 180 | 1 | 1 mm | GAAJ000008 |
| 200 | 1 | 1 mm | GAAJ000009 |
| 225 | 1 | 1 mm | GAAJ000010 |
| 250 | 1 | 1 mm | GAAJ000011 |
| 275 | 1 | 1 mm | GAAJ000012 |
| 280 | 1 | 1 mm | GAAJ000013 |
| 300 | 1 | 1 mm | GAAJ000014 |
| 315 | 1 | 1 mm | GAAJ000015 |
| 350 | 1 | 1 mm | GAAJ000016 |
| 400 | 1 | 1 mm | GAAJ000017 |
| 450 | 1 | 1 mm | GAAJ000018 |
| 500 | 1 | 1 mm | GAAJ000019 |
| 550 | 1 | 1 mm | GAAJ000020 |
| 600 | 1 | 1 mm | GAAJ000021 |
| 630 | 1 | 1 mm | GAAJ000022 |
