Used in the paper industry, wood industry and cardboard industry Agricultural industry is also a main industry for this type of cyclone. Generally the FS cyclone is suitable for all installations that do not require a high performance separation.
The airflow is controlled by an integrated throttle valve.
Accessories
• Support legs with connection at the base of the cone
• 90 L dust bucket
• Connection piece for rotary valve
• Leg extensions for Big-Bag use
• In- and outlet pieces

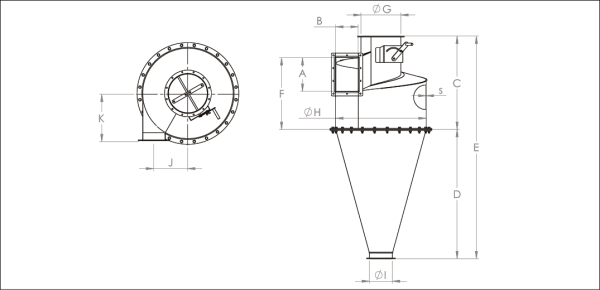

| Diameter | Description | Item ID |
|---|---|---|
| Ød, mm | ||
| 803 | Cyclone FS 3 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000001 |
| 803 | Cyclone FS 3 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000002 |
| 903 | Cyclone FS 4 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000003 |
| 903 | Cyclone FS 4 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000004 |
| 1,123 | Cyclone FS 6 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000005 |
| 1,123 | Cyclone FS 6 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000006 |
| 1,253 | Cyclone FS 8 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000007 |
| 1,253 | Cyclone FS 8 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000008 |
| 1,604 | cyclone FS 11 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000009 |
| 1,604 | cyclone FS 11 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000010 |
| 1,804 | Cyclone FS 16 - position LEFT - 1.25 mm - galvanized steel - with adjustment valve | JABA000011 |
| 1,804 | Cyclone FS 16 - position RIGHT - 1.25 mm - galvanized steel - with adjustment valve | JABA000012 |
| 2,004 | Cyclone FS 20 - position LEFT - 2 mm - galvanized steel - with adjustment valve | JABA000013 |
| 2,004 | Cyclone FS 20 - position RIGHT - 2 mm - galvanized steel - with adjustment valve | JABA000014 |
